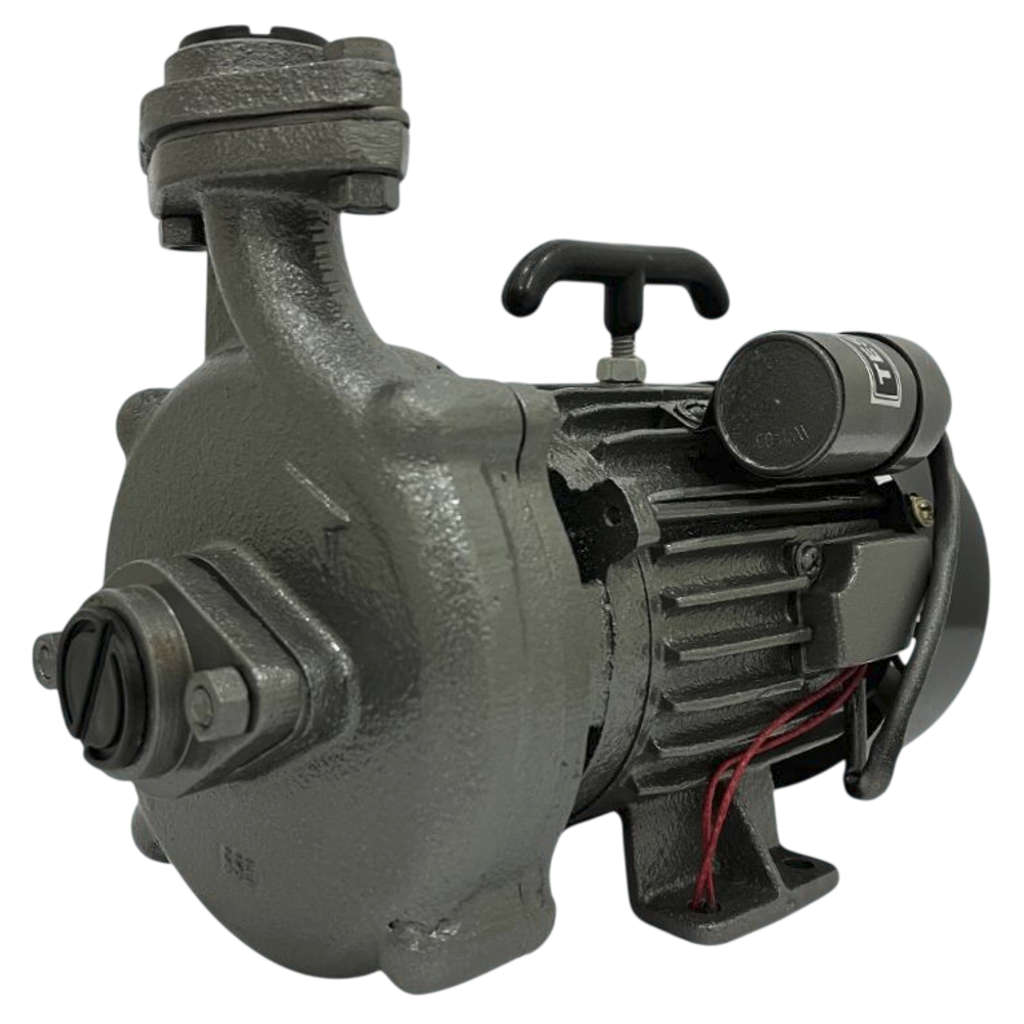

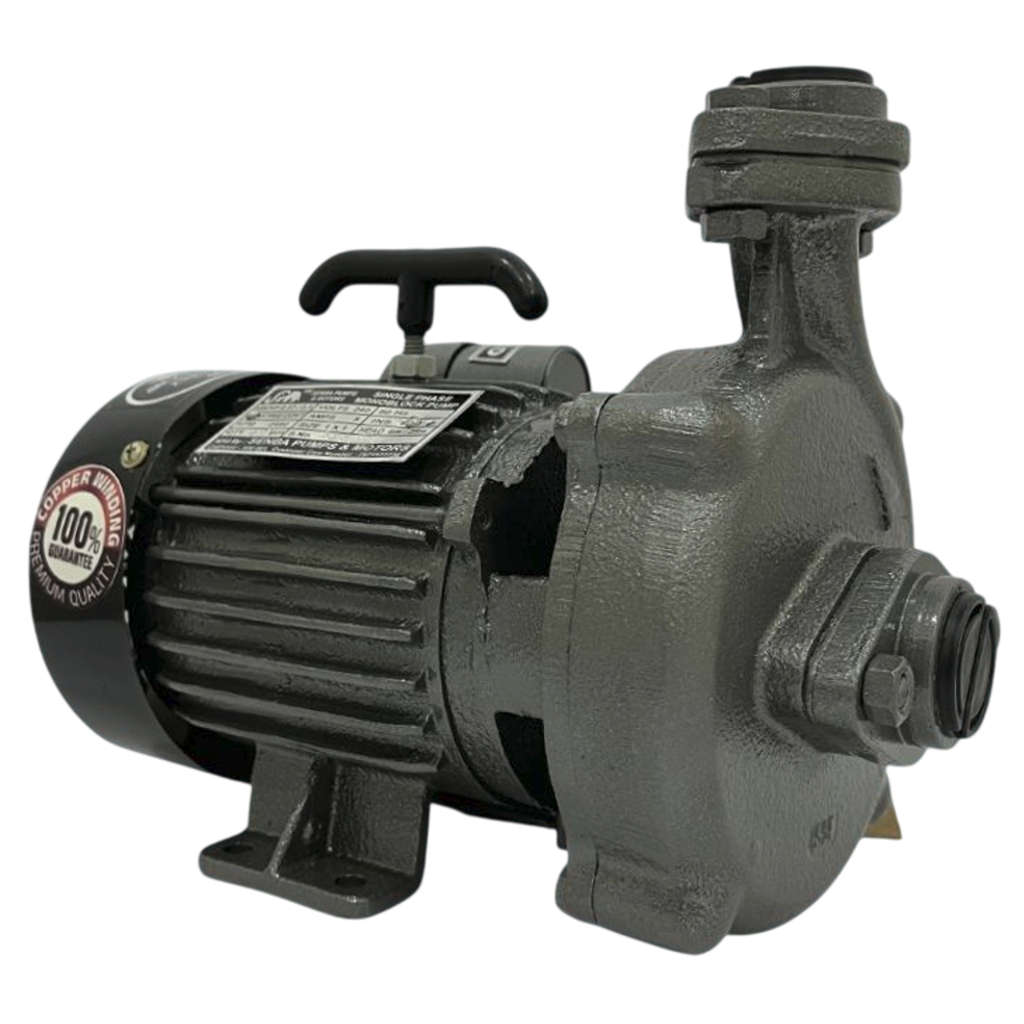

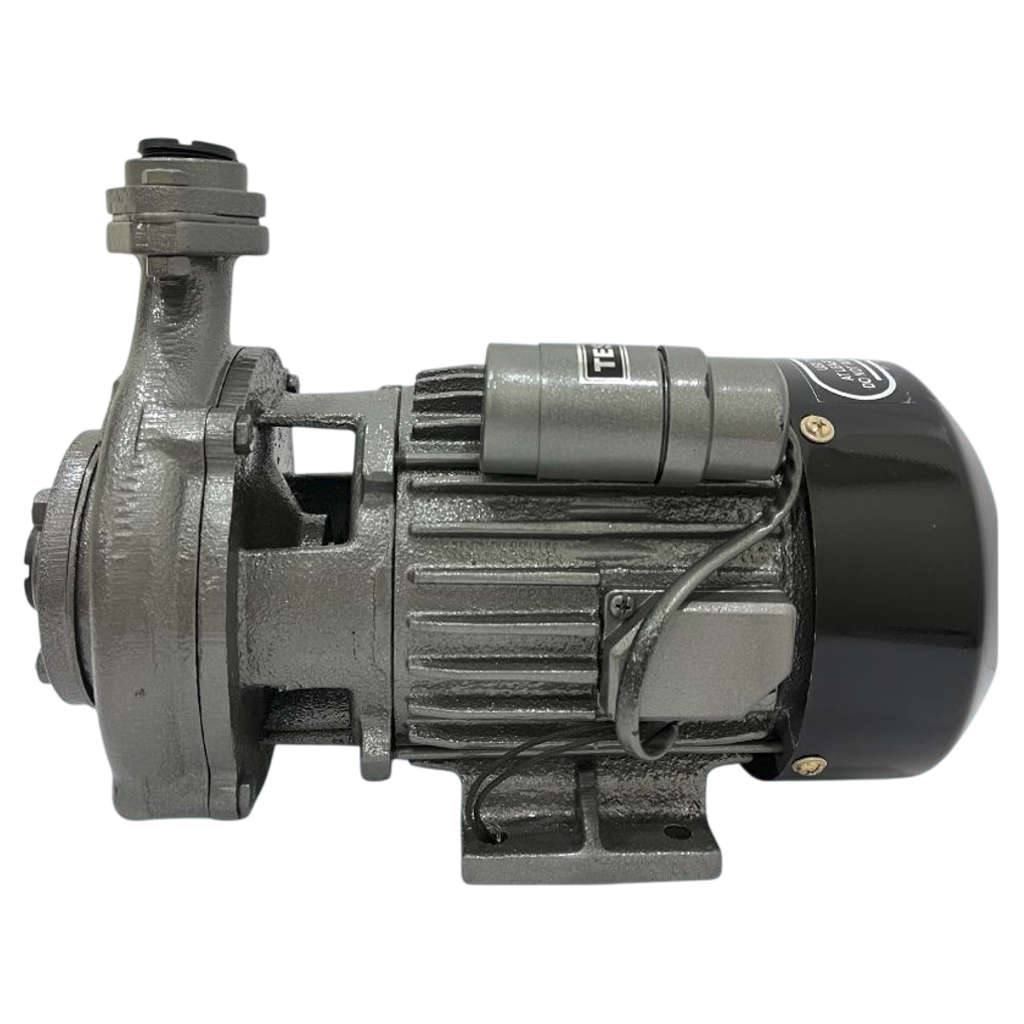

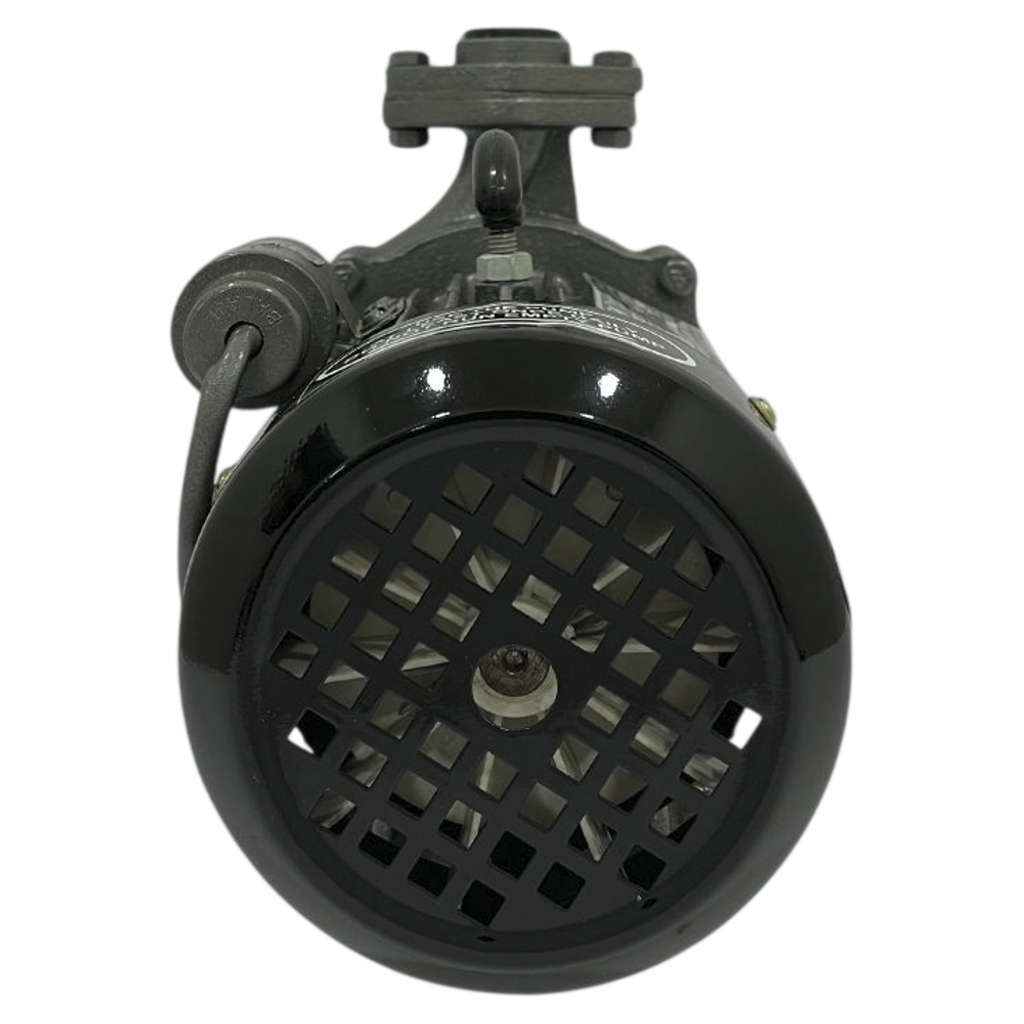

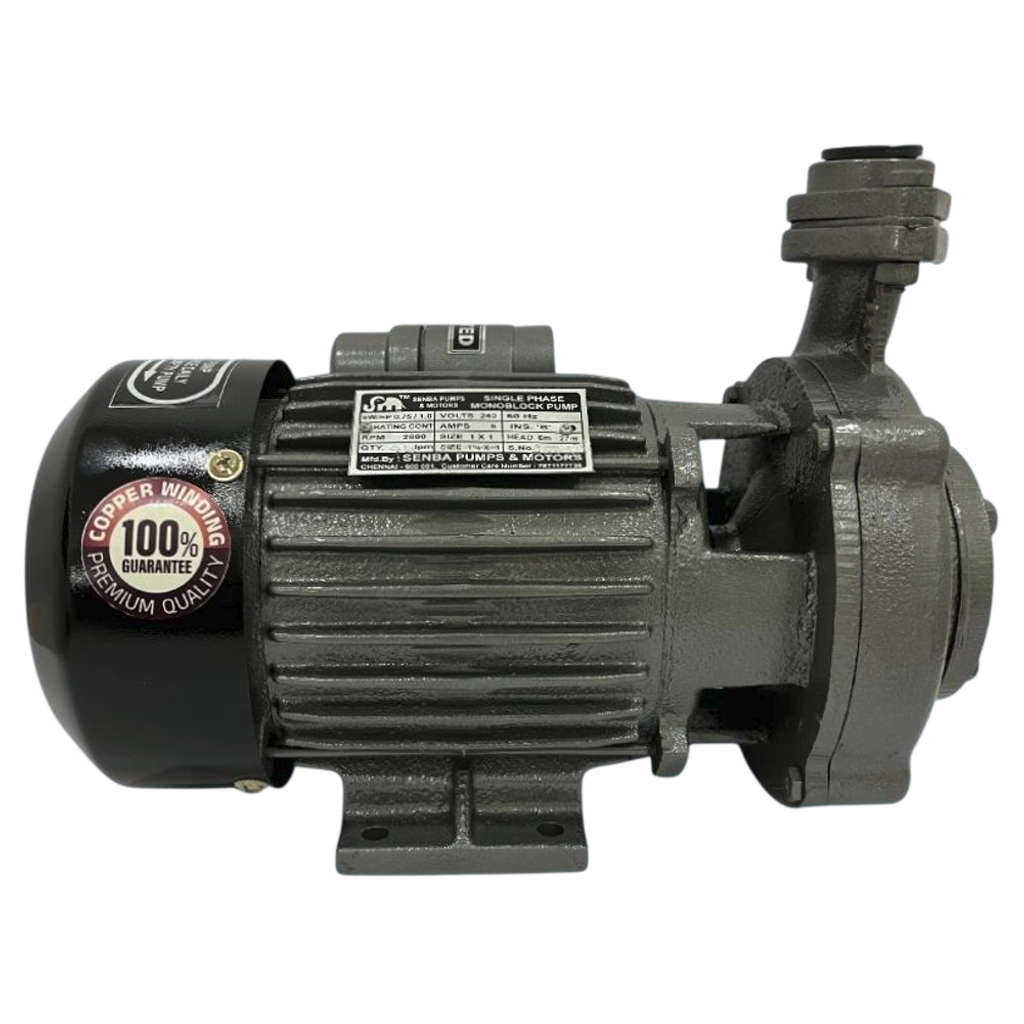

Senba Centrifugal Monobloc Pump Single Phase 0.5 HP SCM-50

Senba Centrifugal Monobloc Pump Single Phase 0.5 HP SCM-50

Visit the Senba Store

₹ 6,160.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • A centrifugal monoblock pump is a single-unit device that combines a motor and a centrifugal pump, connected by a common shaft

  • It operates on the principle of centrifugal force, where a motor-driven impeller rotates to increase the fluid's pressure and velocity, propelling it outwards

  • These pumps are known for their compact design, high efficiency, and ease of installation and use.

  • Applications

  • Residential, construction site,raw water transfer STP, booster application, water feeding in solarsystem, Gardens, small lawn sprinkler, filter feed

Product Specification

Brand

Senba

Product Type

Monobloc Pump

Product Model

SCM-50

Technical Specifications

Power

0.5 HP

Speed

2900 RPM

Voltage Range

180v-240v (1ph)—50 HZ

Duty

S1 ( Continuous)

Protection

IP44

Insulation

B Class

Pipe Size

25*25 mm

Head Range

6-40 mtr

Flow Range

10 to 600 LPM

Head (m)

Discharge (LPM)

6

80

12

70

15

60

18

50

Operating Conditions

Suction Lift

Up To 8 Metre

Maximum Liquid Temperature

50 deg cel

Maximum Ambient Temperature

40 deg cel

Material

Pump Casing & Flanges

Cast iron

Motor Body

Cast iron

Impeller

Cast iron/ss/noryl

Shaft

ss 410

Mechanical Seal

Carbon Ceramic

Winding

Copper

Warranty

As Per Manufacturer Terms and Condition

Other Details

Dimension (CM) - L x B x H

35 x 25 x 36

Unit of Measurement

1 Piece

Weight

8.8 kg

Generic Type

Centrifugal Monoblock Pumps

Manufacturer Details

Senba Pumps & Motors

15/29, Thambuchetty Street
Near Rayapuram Bridge
Chennai-600001

Support: 9090909090

Email: senbapumpsandmotors@gmail.com

Packer Details

Senba Pumps & Motors

15/29, Thambuchetty Street
Near Rayapuram Bridge
Chennai-600001

Support: 9090909090

Email: senbapumpsandmotors@gmail.com

Country of Origin

India
