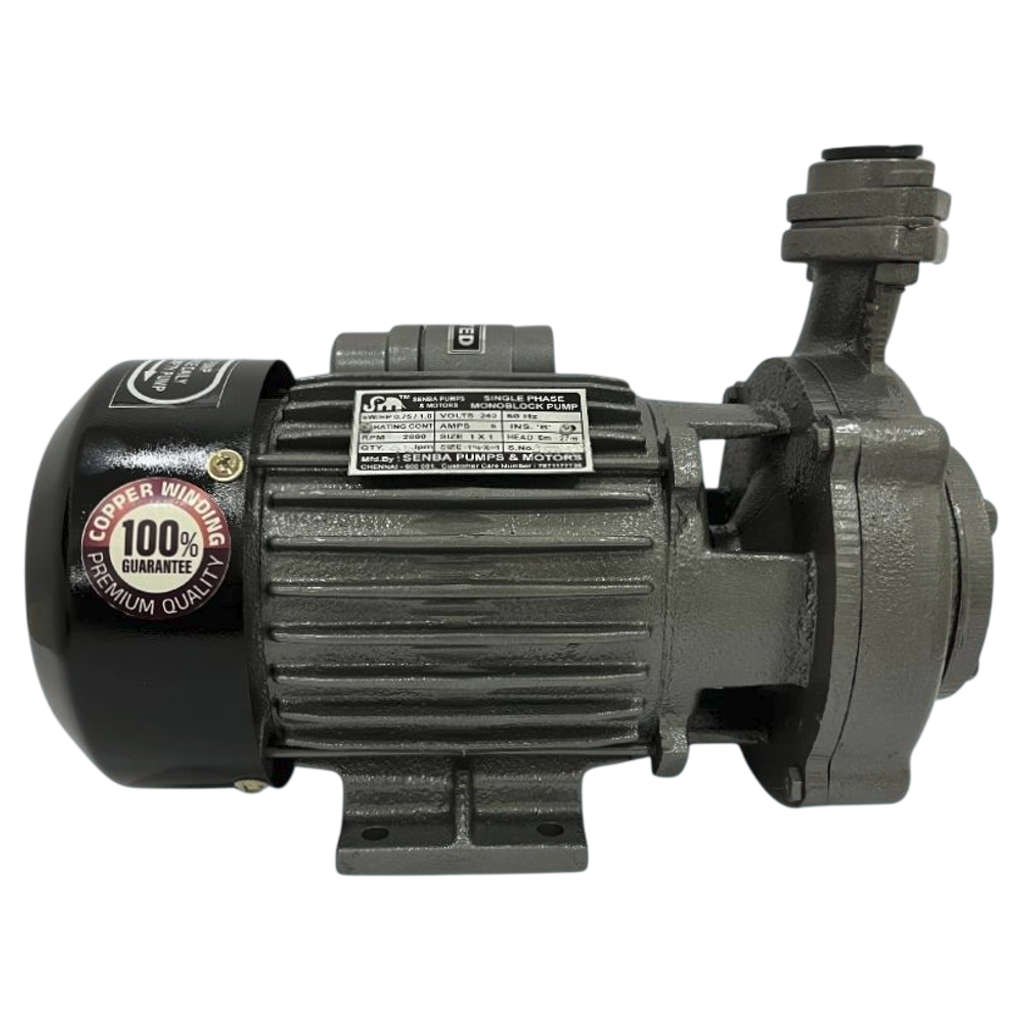

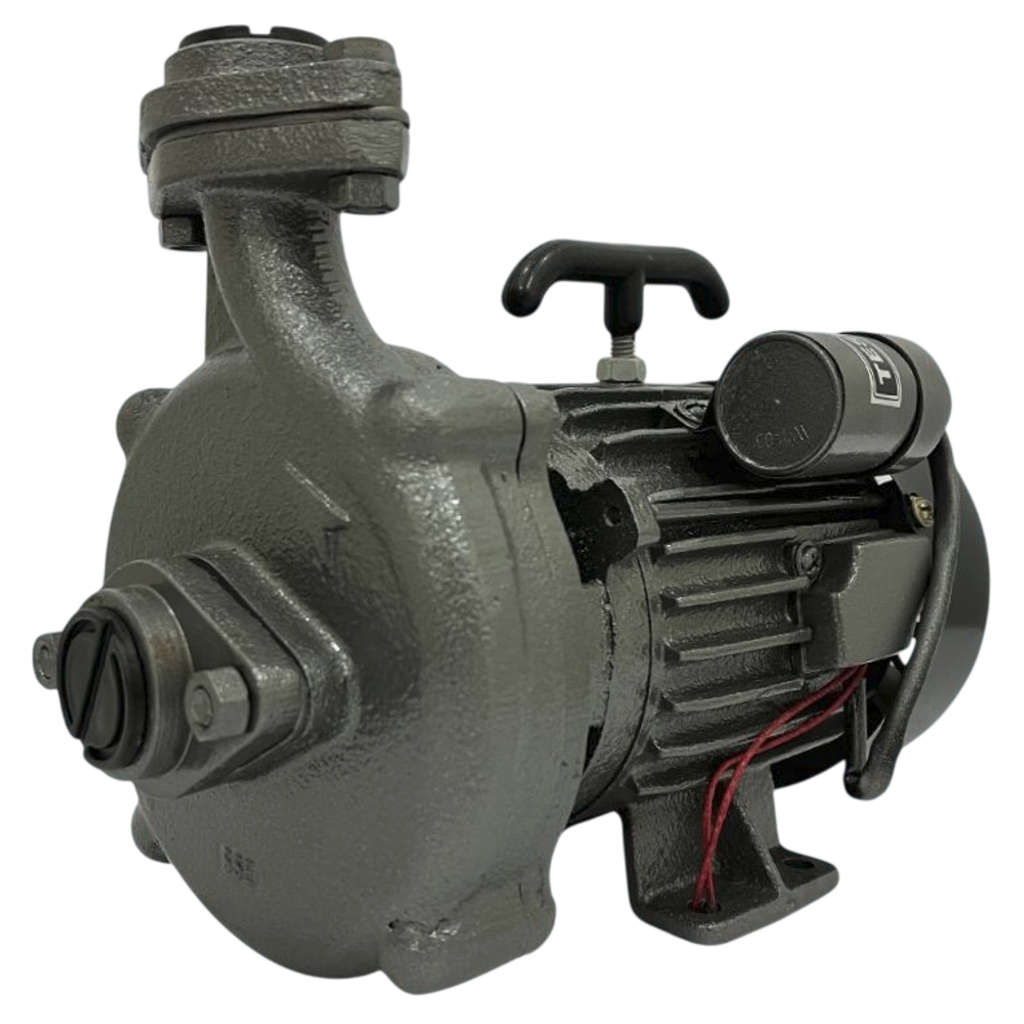

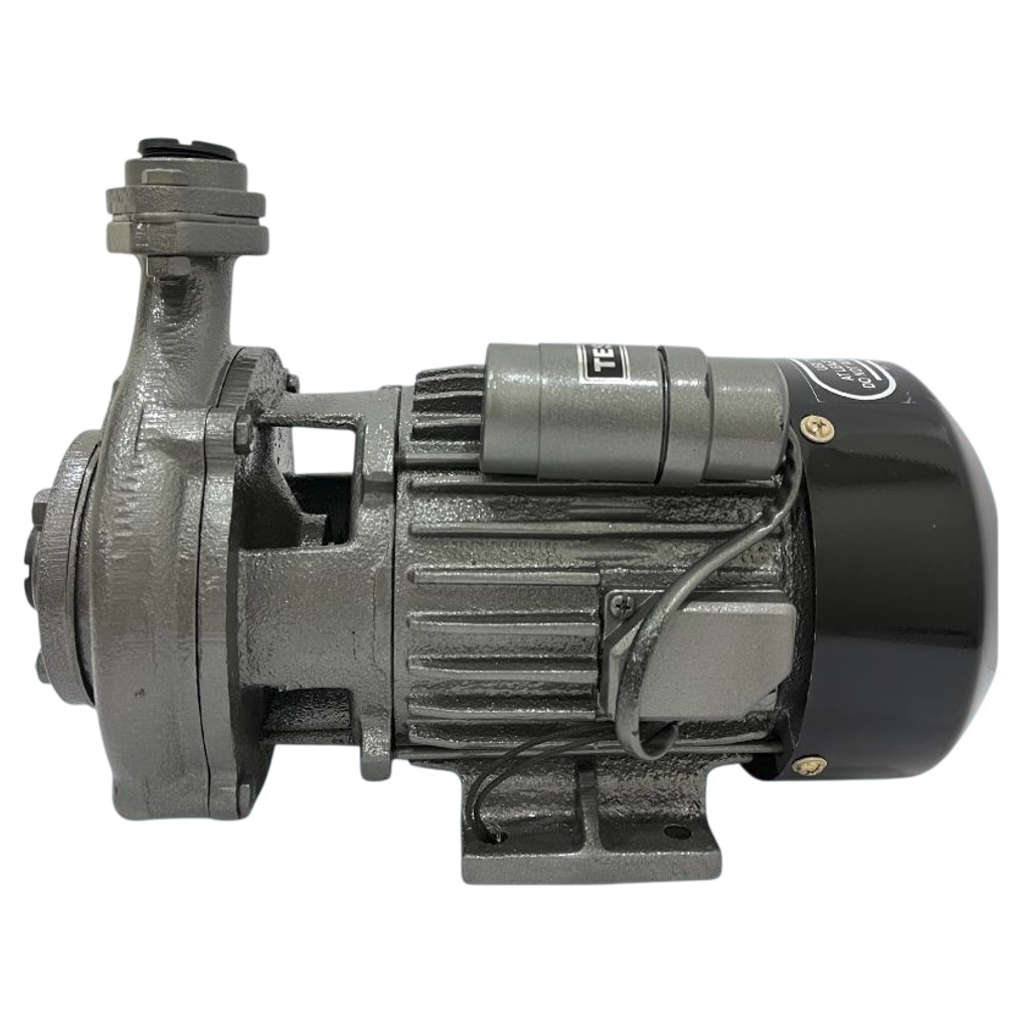

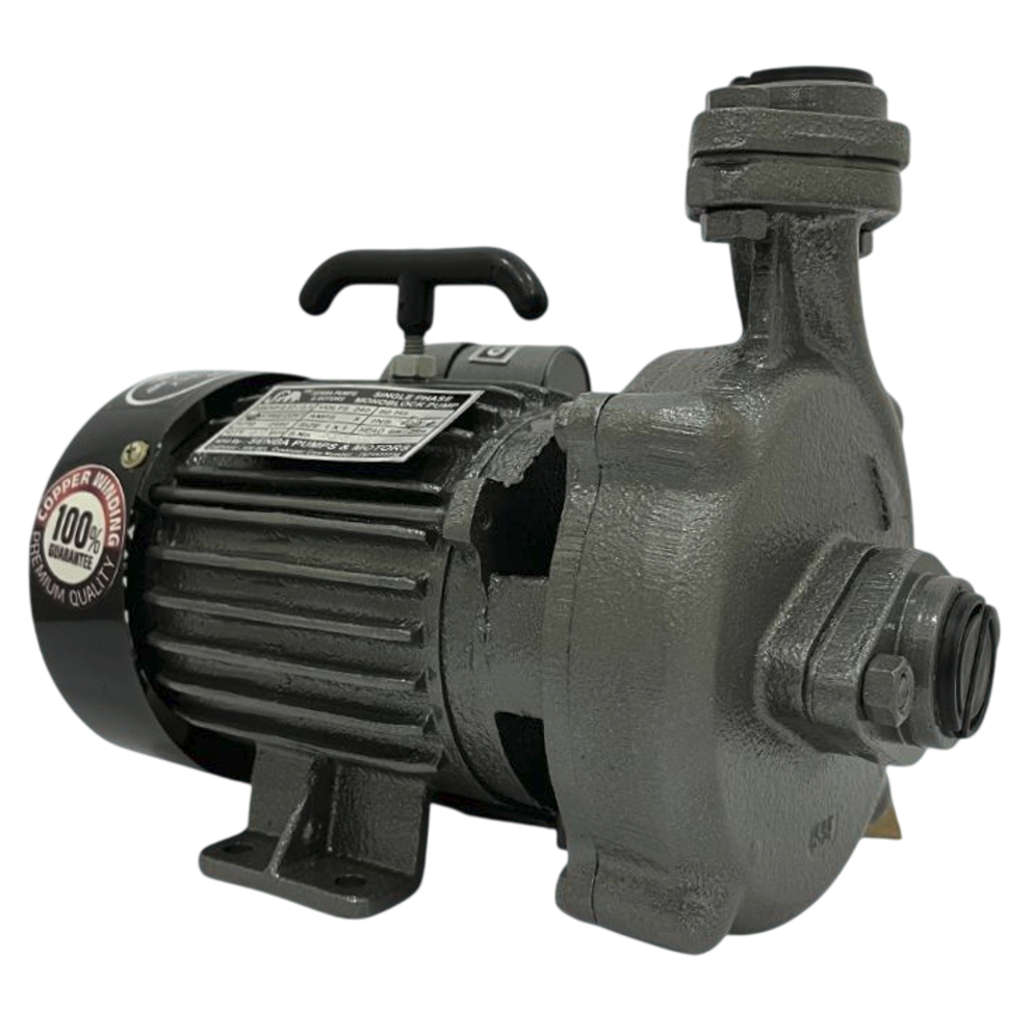

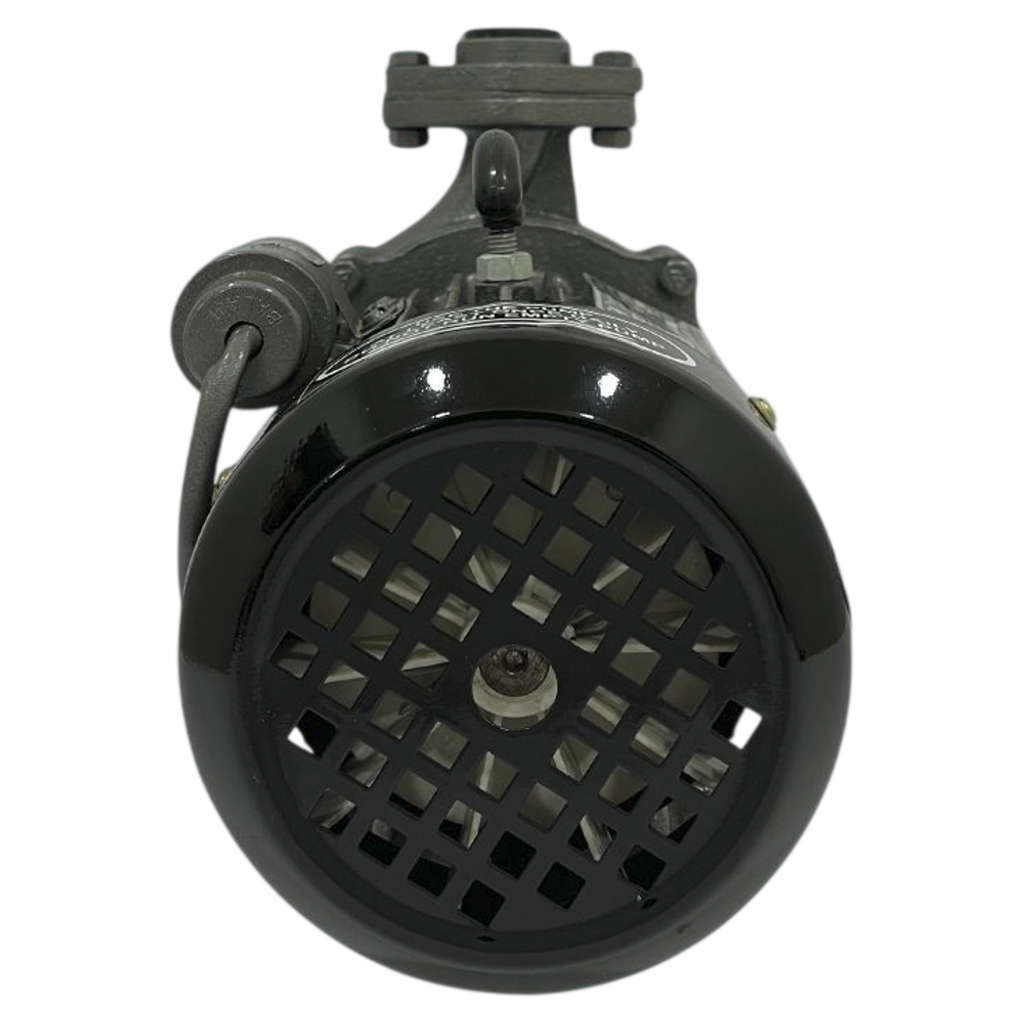

Senba Centrifugal Monobloc Pump Single Phase 1 HP SCM-102
Senba Centrifugal Monobloc Pump Single Phase 1 HP SCM-102 8447931646146
PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
A centrifugal monoblock pump is a single-unit device that combines a motor and a centrifugal pump, connected by a common shaft
-
It operates on the principle of centrifugal force, where a motor-driven impeller rotates to increase the fluid's pressure and velocity, propelling it outwards
-
These pumps are known for their compact design, high efficiency, and ease of installation and use.
-
Applications
-
Residential, construction site,raw water transfer STP, booster application, water feeding in solarsystem, Gardens, small lawn sprinkler, filter feed
Product Specification
| Brand | Senba |
| Product Type | Monobloc Pump |
| Product Model | SCM-102 |
| Technical Specifications | |
| Power | 1 HP |
| Speed | 2900 RPM |
| Voltage Range | 180v-240v (1ph)—50 HZ |
| Duty | S1 ( Continuous) |
| Protection | IP44 |
| Insulation | B Class |
| Pipe Size | 40*40 mm |
| Head Range | 6-40 mtr |
| Flow Range | 10 to 600 LPM |
| Head (m) | Discharge (LPM) |
| 6 | 185 |
| 12 | 150 |
| 15 | 100 |
| Operating Conditions | |
| Suction Lift | Up To 8 Metre |
| Maximum Liquid Temperature | 50 deg cel |
| Maximum Ambient Temperature | 40 deg cel |
| Material | |
| Pump Casing & Flanges | Cast iron |
| Motor Body | Cast iron |
| Impeller | Cast iron/ss/noryl |
| Shaft | ss 410 |
| Mechanical Seal | Carbon Ceramic |
| Winding | Copper |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 35 x 25 x 36 |
| Unit of Measurement | 1 Piece |
| Weight | 8.8 kg |
| Generic Type | Centrifugal Monoblock Pumps |
| Manufacturer Details | Senba Pumps & Motors 15/29, Thambuchetty Street Support: 9090909090 Email: senbapumpsandmotors@gmail.com |
| Packer Details | Senba Pumps & Motors 15/29, Thambuchetty Street Support: 9090909090 Email: senbapumpsandmotors@gmail.com |
| Country of Origin | India |
