Available!

SKU # 1000138745

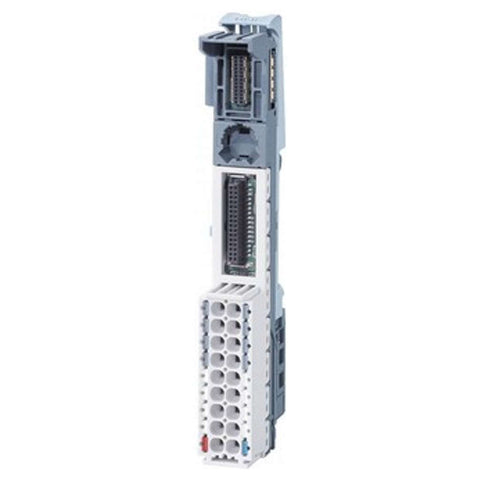

Siemens Base Unit 6ES71936BP000DA0

Siemens Base Unit 6ES71936BP000DA0

Visit the Siemens Store

₹ 3,598.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Key Features

  • A base unit is a fundamental measurement in a system of units, from which other units are derived

  • For example, in the International System of Units (SI), base units include meters for length, kilograms for mass, and seconds for time

  • These units serve as the foundation for defining other measurements and are used to express quantities in a standardized way

  • Warranty and support will be provided by vendor

  • Note:*Actual product image may vary from that shown on the picture

Product Specification

Brand

Siemens

Product Type

Base Unit

Product Model

6ES71936BP000DA0

General Information

Product Type Designation

BU type A0

HW Functional Status

From FS06

Supply Voltage

Rated Value (DC)

24 V

External Protection For Power Supply Lines

Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic

Mains Filter

Integrated

Yes

Current Carrying Capacity

For P1 And P2 Bus, Maximum

10 A

For Process Terminals, Maximum

2 A

Hardware Configuration

Formation Of Potential Groups

New Potential Group

Yes

Potential Group Continued From The Left

No

Slots

Number Of Slots

1; Type A0

Potential Separation

Between The Potential Groups

Yes

Isolation

Isolation Tested With

707 V DC (type test)

Ambient Conditions

Ambient Temperature During Operation

Horizontal Installation, Minimum

-30 °C

Horizontal Installation, Maximum

60 °C

Vertical Installation, Minimum

-30 °C

Vertical Installation, Maximum

50 °C

Dimensions

Width

15 mm

Height

117 mm

Thickness

35 mm

Weight (Approximate)

40 g
