SKU # 1000138676

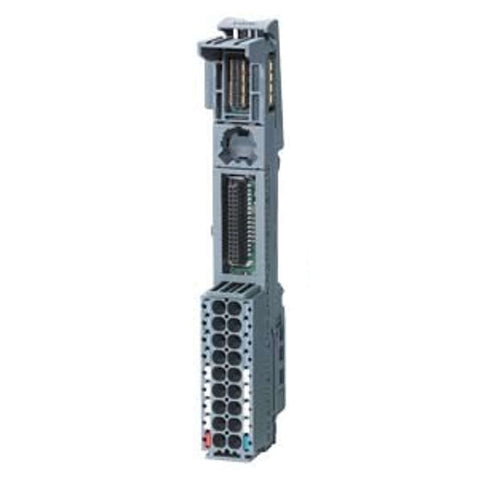

Siemens Simatic ET 200SP Base Unit BU15-P16+A0+2B 6ES71936BP000BA0

Siemens Simatic ET 200SP Base Unit BU15-P16+A0+2B 6ES71936BP000BA0

Visit the Siemens Store

₹ 2,047.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • In electrical systems, a base unit typically refers to a fundamental unit of measurement or a standard component used as a reference for other measurements or components

  • For instance, in electrical measurements, base units include the watt for power, the ampere for current, and the volt for voltage

  • These units form the foundation for more complex calculations and measurements in electrical engineering

  • Warranty and support will be provided by vendor

  • Note:*Actual product image may vary from that shown on the picture

Product Specification

Brand

Siemens

Product Type

Base Unit

Product Code

6ES71936BP000BA0

Product Series

Simatic ET 200SP

Product Type Designation

BU type A0

Supply Voltage

Rated Value (DC)

24 V

External Protection For Power Supply Lines

Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic

Current Carrying Capacity


For P1 and P2 Bus, Maximum

10 A

For Process Terminals, Maximum

2 A

Hardware Configuration

Automatic Encoding

Yes

Isolation

Isolation Tested With

707 V DC (type test)

Ambient Conditions


Minimum Horizontal Installation

-30 °C

Maximum Horizontal Installation

60 °C

Minimum Vertical Installation

-30 °C

Maximum Vertical Installation

50 °C

Maximum Installation Altitude Above Sea Level

5 000 m; Restrictions for installation altitudes > 2 000 m

Connection Method

Terminal Type

Push-in terminal

Minimum Conductor Cross-Section

0.14 mm²; AWG 26

Maximum Conductor Cross-Section

2.5 mm²; AWG 14

Number Of Process Terminals to I/O module

16; Pro slot

Number Of Terminals With Connection to P1 and
P2 Bus

2; Pro slot

Product Dimension(H x W x D)

117 x 15 x 35 mm

Net Weight (lb)

0.106 lb
