SKU # 1000131954

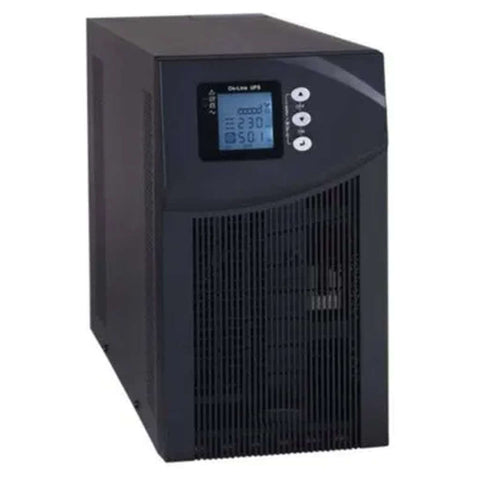

Techser 3KVA/96VDC On-Line UPS Single Phase IGBT Base Model

Techser 3KVA/96VDC On-Line UPS Single Phase IGBT Base Model

Visit the Techser Store

₹ 36,639.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • DSP Design

  • High Frequency Switching Double Conversion PWM IGBT Technology With Galvanic Isolation

  • Wide Input Voltage Range

  • Active Power Factor Correction - Input PF > 0.99

  • Cold Start Feature

  • Generator Compatibility

  • Lightning and Surge Protection

  • Compact Size, Small Foot Print & Dynamic Performance

  • Input Current THD <5%

  • EMI/RFI Noise Filter

  • Advanced Communication SNMP Compatible

  • Applications

  • BFSI Segment, DefenceTeleCom, Education IT & ITES, Data Centres ,Medical & Pharma Segment, Hospitality Segment

Product Specification

Brand

Techser

Product Type

UPS

Series

Techglare Series

Capacity

3 KVA

Input

Voltage Range

160V AC To 290 AC

Power Factor

0.99

Phase

1 Phase 230V AC+Neutral+Earth

Frequency Range

40 - 70 Hz

Output


Voltage

230V+5 %-15%

Voltage Regulation

± 1%

Frequency (Free Running)

50 Hz ± 3%

Frequency (Synchronised Range)

50 Hz ± 3%

Crest Factor

3:1

Waveform

Pure Sine Wave

Harmonic Distortion

3% @ Full Load (Linear Load)

4% @ Full Load (Non-Linear Load)

Efficiency (AC to AC)

95%

Power Factor

0.8 Lag to Unity

DC Voltage

72V / 96V/120V

Battery

Battery Type

Sealed Lead Acid Maintenance Free, Lead Acid Tubular

Charger

Built in Solid State Float – Cum-Boost Charger with Automatic Boost/Trickle Charge Modes with Current Limiting Features

General

Operating Temperature

0 - 45 Degree Centigrade

Humidity

0 - 95% RH @ 0.50 degree(Non - Condensing)

Acoustic Noise Level

ß55dBA @ 1 Meter

Audible Alarm

Mains Failure, Battery Low & Overload, Output Low/High, Output Short Circuit, Over Temperature

Indications

Mains ON, Inverter ON, Load ON UPS, Load ON By Pass, Auto By Pass ON

LCD Display

Input Voltage & Frequency, Output Voltage, Frequency, Load Current, Battery voltage, Load & Battery Level Graph, Temperature

Protection

Input & battery MCB with MCB’s, Fast acting fuses & High speed pulse blanking. Inverter Over Temperature Electronic over voltage/under voltage, By pass Over Voltage, output short circuit. DC Short circuit

Over Load

125% for 10 Min. and 150% for 1 minute

Static Bypass & Transfer Time

Standard Static Bypass, completely uninterruptible transfer between main-battery/battery-mains.

Degree of Protection

IP 20

EMC Computer Standard Interface

RS 232, Auto Shutdown Software with Windows/07/XP

Warranty

3 Years

OtherDetails

Dimension (CM) - L x B x H

23.7 x 10.7 x 21.8

Unit of Measurement

1 Piece

Weight

420 kg

Generic Type

3KVA

Manufacturer Details

Techser House #12/1, 5th cross, MES Ring Road Sharadhamba Nagar,Jalahalli Bangalore – 560 013 Phone : 080 28384854 Email : bangalore@techser.com

Packer Details

Techser House #12/1, 5th cross, MES Ring Road Sharadhamba Nagar,Jalahalli Bangalore – 560 013 Phone : 080 28384854 Email : bangalore@techser.com

Country of Origin

India
