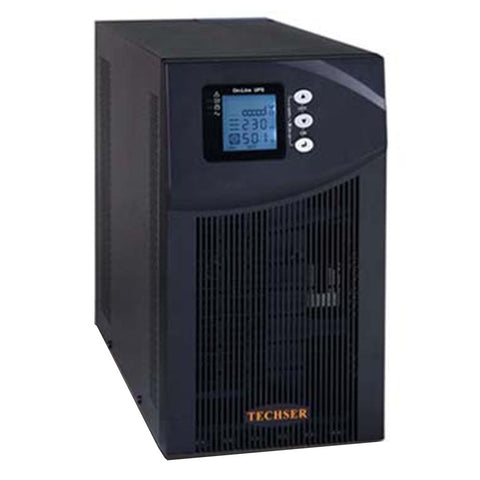

Techser 3KVA/96VDC On-Line UPS System Single Phase Input & Single Phase Output IGBT BASE Model with 12V/6EL130AH Exide Tubular Battery 8Nos with Suitable Battery Stand

Techser 3KVA/96VDC On-Line UPS System Single Phase Input & Single Phase Output IGBT BASE Model with 12V/6EL130AH Exide Tubular Battery 8Nos with Suitable Battery Stand

Visit the Techser Store

₹ 150,700.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Microprocessor Design

  • High Frequency Switching Double Conversion PWM IGBT Technology

  • Wide Input Voltage Range

  • Active Power Factor Correction - Input PF > 0.97lCold Start Feature

  • Generator Compatibility

  • Lightning and Surge Protection

  • Compact Size, Small Foot Print & Dynamic Performance

  • Input Current THD <7%

  • EMI/RFI Noise Filter

  • Advanced Communication SNMP Compatible

  • Applications :

  • BFSI Segment, DefenceTeleCom, Education IT & ITES, Data Centres ,Medical & Pharma Segment, Hospitality Segment

Product Specification

Brand

Techser

Product Type

UPS

Series

Techglare Series

Capacity

3 KVA

Input

Voltage range

160V AC To 280V AC

Power Factor

0.97

Phase

1 Phase 230V AC+Neutral+Earth

Frequency Range

45 - 55 Hz

Output


Voltage

230V AC

Voltage Regulation

± 1%

Frequency (Free Running)

50 Hz ± 0.1%

Frequency (Synchronised Range)

50 Hz ± 0.1%

Crest Factor

3:1

Waveform

Pure Sine Wave

Harmonic Distortion

2% @ Full Load (Linear Load)

3% @ Full Load (Non-Linear Load)

Efficiency (AC to AC)

> 90%

Inverter Efficiency

93%

Power Factor

0.8 Lag to Unity

DC Voltage

72V / 96V/120V

Battery

Battery Type

Sealed Lead Acid Maintenance Free, Lead Acid Tubular

Charger

Built-in CVCC Charger with Ripple current ± 1% ( < 2 % ms ) Recharge Time <12 Hrs DC Current limit

General

Operating Temperature

0 - 45 Degree Centigrade / Storage temperature 0 to 60 Degree Centigrade

Humidity

0 - 95% Non - Condensing

Acoustic Noise Level

ß55dBA @ 1 Meter

Audible Alarm

Mains Failure, Battery Low & Overload, Output Low/High, Output Short Circuit, Over Temperature

Indications

Mains ON, Inverter ON, Load ON UPS, Load ON By Pass, Auto By Pass ON

LCD Display

Input Voltage & Frequency, Output Voltage, Frequency, Load Current, Battery voltage, Load & Battery Level Graph, Temperature

Protection

Input & battery MCB with MCB’s, Fast acting fuses & High speed pulse blanking. Inverter Over Temperature Electronic over voltage/under voltage, By pass Over Voltage, output short circuit. DC Short circuit

Over Load

125% for 10 Min. and 150% for 1 minute

Static Bypass & Transfer Time

Standard Static Bypass, completely uninterruptible transfer between main-battery/battery-mains.

Degree of Protection

IP 20

EMC Computer Standard Interface

RS 232, Auto Shutdown Software with Windows/07/XP


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

3KVA

Manufacturer Details

Techser House #12/1, 5th cross, MES Ring Road Sharadhamba Nagar,Jalahalli Bangalore – 560 013 Phone : 080 28384854 Email : bangalore@techser.com

Packer Details

Techser House #12/1, 5th cross, MES Ring Road Sharadhamba Nagar,Jalahalli Bangalore – 560 013 Phone : 080 28384854 Email : bangalore@techser.com

Country of Origin

India
