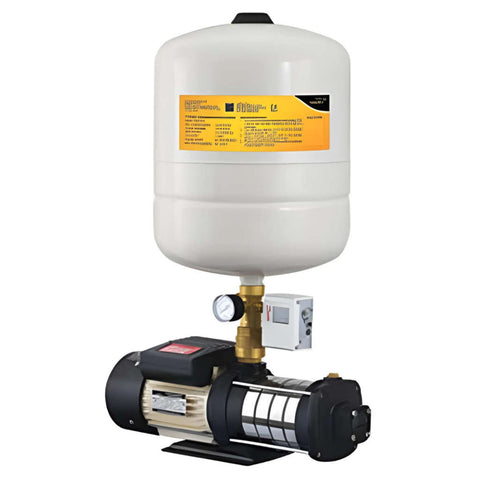

V-Guard Single Phase Centrifugal Booster Pump 0.5 HP VB18-H3E

V-Guard Single Phase Centrifugal Booster Pump 0.5 HP VB18-H3E

Visit the V-Guard Store

₹ 19,740.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

ProductDescription

  • Up-surged, Incessant and Reliable

  • For clear, cold water free from abrasive & chemically aggressive particles to satisfy the needs of residential pressure boosting applications

  • Max. liquid temperature 90°C

  • Aluminium Pressure Die-Casted Body

  • For non-corrosive, long lasting life

  • Brass/SS/Noryl Impeller

  • For rust free and consistent performance

  • 99.9% Pure Copper Winding Wires

  • Provides better electrical operational characteristics

  • Superior Quality Electrical Stampings

  • Ascertain highly efficient motor

  • SS410 Motor Shaft

  • Offers rust free, stuck free persistent operation

  • High Quality Double Sealed Ball Bearings

  • For a smooth & silent functioning

  • F Class Insulation

  • Improved insulation protection and prevents unwanted energy losses

  • SS Hardwares

  • Ensures endurance against aggressive corrosion failures

  • World class pressure tanks

  • Imported tanks are meant to assure safe working and prolonged operational consistency

  • Key Features

  • Premium quality pump sets

  • Rust preventive Aluminium die-casted/extruded

  • Rigid bull cast iron casing

  • Stainless steel hardware

  • Fiited with hot water seal

  • Imported pressure tank

  • F-class insulation

  • Suitable for hot water application

  • Float switch for dry run protection

  • Note:*Product specifications may vary based on manufacturer update

ProductSpecification

Brand

V-Guard

Product Type

Centrifugal Booster Pump

Product Model

VB18-H3E

Power (HP/kW)

0.5 HP / 0.37 kW

Water Pipe Size

25 x 25 mm(2.5 x 2.5 cm)

Rated Speed

2800 RPM

Pump Stage

3

Type Of Tank

Inline

Tank Capacity

18 L

Drawdown Capacity

7 L

Presetting Presssure

1.0 to 2.0 kg/cm^2

Maximum Capacity

1500 LPH

Approximate Suitable For

2 Bathrooms

Motor Type

Single Phase

Total Head in Metre Vs Discharge in LPH

Total Head (m)

Discharge (LPH)

9

3000

12

2550

15

2200

18

1500

21

1000

Note

Actual product image may vary from that shown on the picture

Warranty

As Per Manufacturer Terms and Condition

OtherDetails

Dimension (CM) - L x B x H

40 x 17 x 25

Unit of Measurement

1 Piece

Weight

9 kg

Generic Type

Booster Pumps

Manufacturer Details

V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in

Packer Details

V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in

Country of Origin

India
