SKU # 1000140901

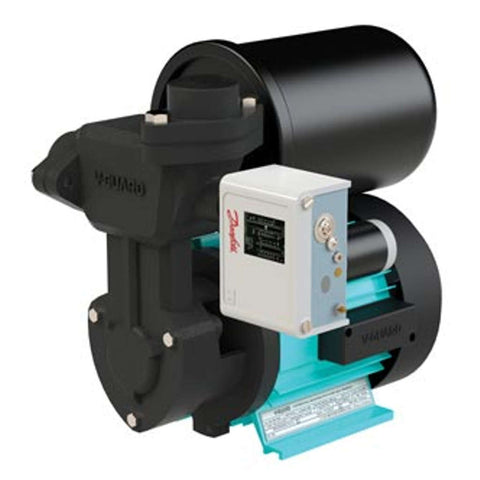

V-Guard Single Phase Self Prime Mini Booster Pump 0.5 HP VB1-H1S LITE

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
ProductDescription
-
Up-surged, Incessant and Reliable
-
For clear, cold water free from abrasive & chemically aggressive particles to satisfy the needs of residential pressure boosting applications
-
Max. liquid temperature 90°C
-
Aluminium Pressure Die-Casted Body
-
For non-corrosive, long lasting life
-
Brass/SS/Noryl Impeller
-
For rust free and consistent performance
-
99.9% Pure Copper Winding Wires
-
Provides better electrical operational characteristics
-
Superior Quality Electrical Stampings
-
Ascertain highly efficient motor
-
SS410 Motor Shaft
-
Offers rust free, stuck free persistent operation
-
High Quality Double Sealed Ball Bearings
-
For a smooth & silent functioning
-
F Class Insulation
-
Improved insulation protection and prevents unwanted energy losses
-
SS Hardwares
-
Ensures endurance against aggressive corrosion failures
-
World class pressure tanks
-
Imported tanks are meant to assure safe working and prolonged operational consistency
-
Key Features
-
Premium quality pump sets
-
Rust preventive Aluminium die-casted/extruded
-
Rigid bull cast iron casing
-
Stainless steel hardware
-
Brass impeller
-
Imported pressure tank
-
F/B - class insulation
-
Suitable for hot water application
-
Note:*Product specifications may vary based on manufacturer update
ProductSpecification
| Brand | V-Guard |
| Product Type | Mini Booster Pump |
| Product Model | VB1-H1S LITE |
| Power (HP/kW) | 0.5 HP / 0.27 kW |
| Water Pipe Size | 25 x 25 mm(2.5 x 2.5 cm) |
| Rated Speed | 2800 RPM |
| Tank Capacity | 1 L |
| Drawdown Capacity | 0.5 L |
| Presetting Presssure | 1.5 to 3.0 kg/cm^2 |
| Maximum Capacity | 2310 LPH |
| Approximate Suitable For | 1 Bathrooms |
| Motor Type | Single Phase |
| Total Head in Metre Vs Discharge in LPH | |
| Total Head (m) | Discharge (LPH) |
| 6 | 2310 |
| 9 | 2120 |
| 12 | 1930 |
| 15 | 1730 |
| 18 | 1550 |
| 21 | 1380 |
| 24 | 1180 |
| 27 | 970 |
| 30 | 770 |
| 33 | 550 |
| Note | Actual product image may vary from that shown on the picture |
| Warranty | As Per Manufacturer Terms and Condition |
OtherDetails
| Dimension (CM) - L x B x H | 40 x 17 x 25 |
| Unit of Measurement | 1 Piece |
| Weight | 11 kg |
| Generic Type | Booster Pumps |
| Manufacturer Details | V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
| Packer Details | V-GUARD INDUSTRIES LTD. Regd. Office: 42/962, Vennala High School Road, Vennala, Kochi - 682028 Phone : +91 484 433 5000 Email: mail@vguard.in |
| Country of Origin | India |
