SKU # 1000021808

ABB-AC-Type-Mini-Contactor-Relay-Four-Pole-K6-22Z-1000021808

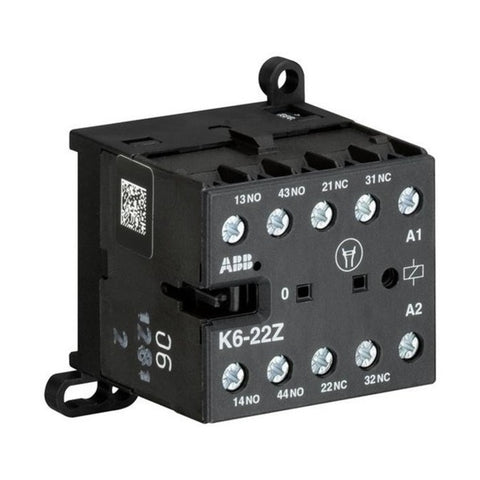

ABB AC Type Mini Contactor Relay Four Pole K6-22Z


₹ 917.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The K6-22Z mini contactor relay is a compact 4 pole contactor relay with screw terminals. They are ideally suited for applications where reliability is a must and space is at a premium

  • Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15)

  • Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting

  • Conventional Free-air Thermal Current (Ith) : Auxiliary Circuit 6 A

  • Degree of Protection : Auxiliary Circuit Terminals IP20 , Control Circuit Terminals IP20

  • Mechanical Durability : 10000000 cycle

  • Mini Contactor Type : Mini Contactor Relay

  • Minimum Switching Capacity : 17 V , 5 mA

  • Mounting Position : Any, Position 1-6

  • Mounting Type : DIN-rail; Screw

  • Number of Auxiliary Contacts NC : 2

  • Number of Auxiliary Contacts NO : 2

  • Number of Poles : 4

  • Number of Main Contacts NC : 0

  • Number of Main Contacts NO : 0

  • Product Main Type : K6

  • Product Name : Mini Contactor Relay

  • Product Net Width : 52.5 mm

  • Product Net Height : 57.5 mm

  • Product Net Depth / Length : 46.5 mm

  • Product Net Weight : 0.175 kg

Product Specification

Type

Product ID

Rated Control Circuit Voltage (Uc)

K6-22Z 24V AC

GJH1211001R0221

24 V AC

K6-22Z 48V AC

GJH1211001R0223

48 V AC

K6-22Z 110 ... 127V AC

GJH1211001R8224

110 ... 127 V AC

K6-22Z 220 ... 240V AC

GJH1211001R8220

220 ... 240 V AC

K6-22Z 380 ... 415V AC

GJH1211001R8225

380 ... 415 V AC
