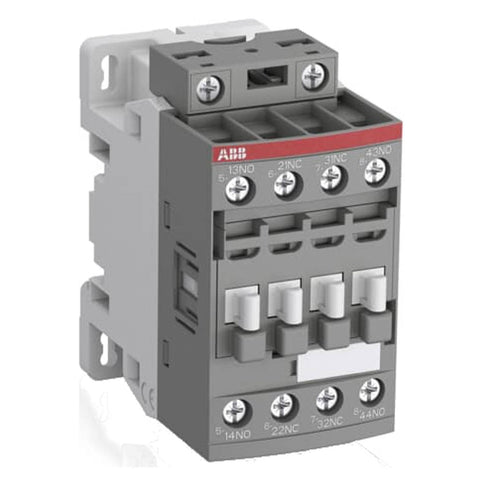

ABB NF40E-13 Contactor Relay 1SBH137001R1340
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
NF contactor relays are used for switching auxiliary and control circuits
-
NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max
-
Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC
-
NF contactor relays can manage large control voltage variations
-
One coil can be used for different control voltages used worldwide without any coil change
-
NF contactor relays have built-in surge protection and do not require additional surge suppressors
-
Poles: 4-pole contactor relays (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1 and including the "Mechanically Linked" symbol on the contactor relay side)
-
Control Circuit: AC or DC operated
Product Specification
|
Brand |
ABB |
|
Product Type |
Contactor Relay |
|
Product Code |
1SBH137001R1340 |
|
Model |
NF40E-13 |
|
Technical |
|
|
Number Of Auxiliary Contacts NO |
4 |
|
Number Of Auxiliary Contacts NC |
0 |
|
Standards |
IEC 60947-5-1 and EN 60947-5-1, UL 508, CSA C22.2 N°14 |
|
Rated Operational Voltage |
Auxiliary Circuit 690 V, Main Circuit 690 V |
|
Conventional Free-Air Thermal Current (Ith) |
acc. to IEC 60947-5-1, q = 40 °C 16 A |
|
Rated Frequency (f) |
Auxiliary Circuit 50 / 60 Hz |
|
Rated Operational Current AC-15 (Ie) |
(500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A |
|
Rated Short-Time Withstand Current Low Voltage (Icw) |
for
0.1 s 140 A |
|
Maximum Electrical Switching Frequency |
(AC-15)
1200 cycles per hour |
|
Rated Operational Current DC-13 (Ie) |
(24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W, (400 V) 0.15 A / 60 W, (500 V) 0.13 A / 65 W, (600 V) 0.1 A / 60 W |
|
Rated Insulation Voltage (Ui) |
acc.
to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V |
|
Rated Impulse Withstand Voltage (Uimp) |
6 kV |
|
Maximum Mechanical Switching Frequency |
6000 cycles per hour |
|
Rated Control Circuit Voltage (Uc) |
50
Hz 100 ... 250 V |
|
Operate Time |
Between
Coil De-energization and NC Contact Closing 13 ... 98 ms |
|
Connecting Capacity Auxiliary Circuit |
Flexible
with Ferrule 1/2x 0.75 ... 2.5 mm² |
|
Connecting Capacity Control Circuit |
Flexible
with Ferrule 1/2x 0.75 ... 2.5 mm² |
|
Wire Stripping Length |
Auxiliary Circuit 10 mm, Control Circuit 10 mm |
|
Terminal Type |
Screw Terminals |
|
Degree Of Protection |
acc.
to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
|
Tightening Torque UL/CSA |
Auxiliary Circuit 11 in·lb, Control Circuit 11 in·lb |
|
Environmental |
|
|
Ambient Air Temperature |
|
|
Maximum Operating Altitude Permissible |
|
|
Resistance To Vibrations Acc. To IEC 60068-2-6 |
|
|
Resistance To Shock Acc. To IEC 60068-2-27 |
|
|
Dimensions |
|
|
Product Net Width |
45 mm |
|
Product Net Depth / Length |
77 mm |
|
Product Net Height |
86 mm |
|
Product Net Weight |
0.27 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
