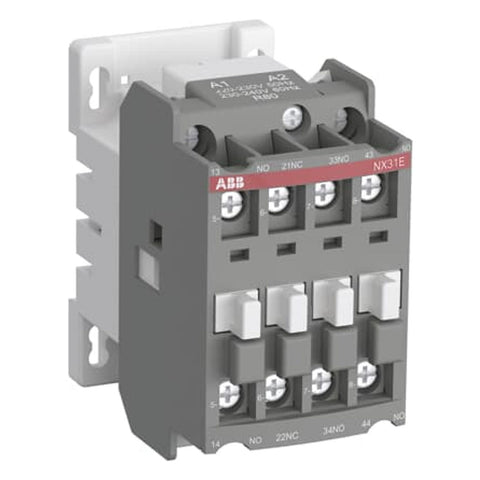

ABB NX31E-80 Contactor Relay 1SBH901074R8031

ABB NX31E-80 Contactor Relay 1SBH901074R8031


₹ 680.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch Within 2 Days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • NX...contactor relays are used for switching auxiliary circuits and control circuits

  • These contactor relays are of the block type design with: – 4 poles

  • Contactor relays have mechanically linked auxiliary contact elements – control circuit: AC operated

Product Specification

Brand

ABB

Product Type

Contactor Relay

Product Code

1SBH901074R8031

Model

NX31E-80

Technical

Number Of Auxiliary Contacts NO

3

Number Of Auxiliary Contacts NC

1

Rated Operational Voltage

Auxiliary Circuit 690 V, Main Circuit 690 V

Conventional Free-Air Thermal Current (Ith)

acc. to IEC 60947-5-1, q = 40 °C 16 A

Rated Frequency (f)

Auxiliary Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz

Rated Operational Current AC-15 (Ie)

(220 / 240 V) 4 A, (24 / 127 V) 6 A, (400 / 440 V) 2 A, (500 V) 2 A, (690 V) 2 A, (380 / 440 V) 3 A

Rated Short-Time Withstand Current Low Voltage (Icw)

for 0.1 s 140 A
for 1 s 100 A

Maximum Electrical Switching Frequency

(AC-15) 1200 cycles per hour
(DC-13) 900 cycles per hour

Rated Operational Current DC-13 (Ie)

(110 V) 0.55 A / 60 W, (220 V) 0.30 A / 66 W, (400 V) 2.8 A / 134 W, (500 V) 1 A / 72 W, (125 V) 0.55 A / 69 W, (24 V) 6 A / 144 W, (250 V) 0.30 A / 75 W

Rated Insulation Voltage (Ui)

acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V

Rated Impulse Withstand Voltage (Uimp)

6 kV

Maximum Mechanical Switching Frequency

6000 cycles per hour

Rated Control Circuit Voltage (Uc)

50 Hz 220 ... 230 V
60 Hz 230 ... 240 V

Operate Time

Between Coil De-energization and NC Contact Closing 9 ... 16 ms
Between Coil De-energization and NO Contact Opening 4 ... 11 ms
Between Coil Energization and NC Contact Opening 7 ... 21 ms
Between Coil Energization and NO Contact Closing 10 ... 26 ms

Terminal Type

Screw Terminals

Degree Of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20

Tightening Torque UL/CSA

Auxiliary Circuit 9 in·lb, Control Circuit 9 in·lb

Environmental

Ambient Air Temperature

Close to Contactor for Storage -60 ... +80 °C
Close to Contactor Fitted with Thermal O/L Relay -25 ... +55 °C
Close to Contactor without Thermal O/L Relay -40 ... +70 °C
Near Contactor for Operation in Free Air -40 ... +70 °C

Climatic Withstand

acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II

Maximum Operating Altitude Permissible

3000 m

Dimensions

Product Net Width

44 mm

Product Net Depth / Length

74 mm

Product Net Height

74 mm

Product Net Weight

0.315 kg

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Contactor Relay

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
