LAST SOLD AT ₹ 17,533.00
SKU # 1000087692

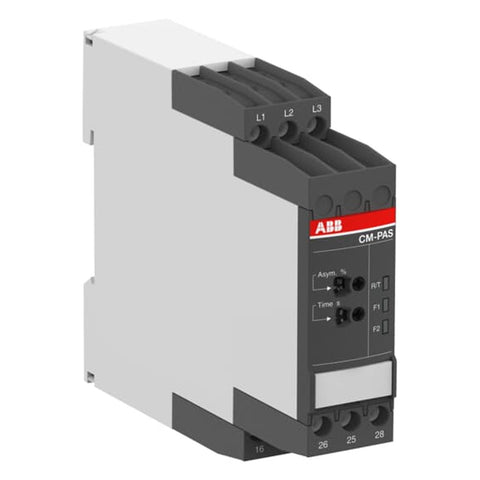

ABB CM-PAS.41S Three Phase Monitoring Relay 1SVR730774R3300
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
CM-PAS.41S Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x300-500VAC
-
The CM-PAS.41S relay is from the CM three-phase monitors range
-
This relay operates with a rated control supply voltage / three-phase measuring voltage of 300-500 V AC and has a 2 c/o output with contacts rated at 250 V / 4 A
-
The CM-PAS.41S monitors the phase parameters phase failure, phase sequence and phase unbalance
-
An ON-delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s)
-
A sealable transparent cover for protection against unauthorized changes is available as accessory
-
The device offers screw connection technology with double-chamber cage connection terminals
Product Specification
|
Brand |
ABB |
|
Product Type |
Monitoring Relay |
|
Product Code |
1SVR730774R3300 |
|
Model |
CM-PAS.41S |
|
Technical |
|
|
Function |
Phase
failure detection |
|
Standards |
CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 60255-27, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508 |
|
Measuring Range |
(L-L) 300 ... 500 V AC |
|
Rated Control Supply Voltage (Us) |
(L-L) 300 ... 500 V AC |
|
Rated Frequency (f) |
Supply Circuit 50/60 Hz |
|
Output |
2 c/o (SPDT) contacts |
|
Time Range |
200
ms start-up delay |
|
Terminal Type |
Screw Terminals |
|
Rated Operational Current AC-12 (Ie) |
(230 V) 4 A |
|
Rated Operational Current AC-15 (Ie) |
(230 V) 3 A |
|
Rated Operational Current DC-12 (Ie) |
(24 V) 4 A |
|
Rated Operational Current DC-13 (Ie) |
(24 V) 2 A |
|
Minimum Switching Capacity |
24
V |
|
Rated Insulation Voltage (Ui) |
Input
Circuit / Output Circuit 600 V |
|
Rated Impulse Withstand Voltage (Uimp) |
Input Circuit 6 kV, Output Circuit 4 kV |
|
Degree Of Protection |
Housing IP50, Terminals IP20 |
|
Pollution Degree |
3 |
|
Overvoltage Category |
III |
|
Mechanical Durability |
30000000 cycle |
|
Electrical Durability |
AC-12 100000 cycle |
|
Short-Circuit Protective Devices |
Output
Circuit NC - F Type Fuses 6 A |
|
Connecting Capacity |
|
|
Wire Stripping Length |
8 mm |
|
Tightening Torque |
0.6 ... 0.8 N·m |
|
Mounting Position |
Any |
|
Mounting On DIN Rail |
TH35-15
(35 x 15 mm Mounting Rail) acc. to IEC 60715 |
|
Recommended Screw Driver |
Pozidriv
1 |
|
Environmental |
|
|
Ambient Air Temperature |
Operation
-25 ... +60 °C |
|
Technical UL/CSA |
|
|
Maximum Operating Voltage UL/CSA |
Output Circuit 300 V AC |
|
Contact Rating UL/CSA |
B300 |
|
Connecting Capacity UL/CSA |
|
|
Tightening Torque UL/CSA |
7.08 in·lb |
|
Dimensions |
|
|
Product Net Width |
22.5 mm |
|
Product Net Depth / Length |
103.7 mm |
|
Product Net Height |
85.6 mm |
|
Product Net Weight |
0.132 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Monitoring Relay |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
