ABB Three-Phase Monitoring Relay 2c/o CM-MPN

ABB Three-Phase Monitoring Relay 2c/o CM-MPN


₹ 20,560.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

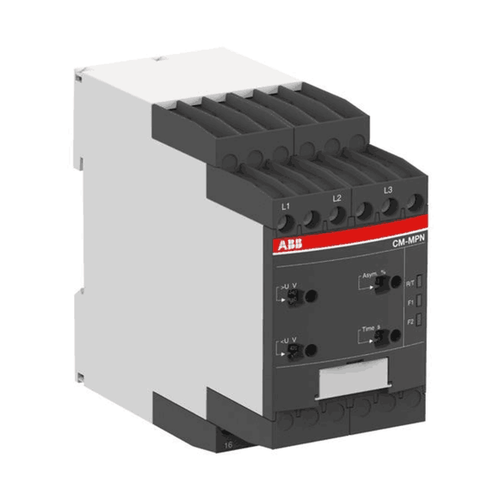

  • The CM-MPN is a multifunctional relay from the CM three-phase monitors range. It operates with a rated control supply voltage / three-phase measuring voltage of 350-580 V AC 50/60 Hz and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. This relay monitors all phase parameters such as over/undervoltage, phase unbalance and phase failure. The corresponding threshold values are adjustable
  • The CM-MPN.52S also offers selection of phase sequence monitoring, automatic phase sequence correction as well as an ON or OFF tripping delay. The output contacts can be configured as 1x2 c/o (SPDT) contacts (common signal) or 2x1 c/o (SPDT) contact (separate signal for over- and undervoltage thresholds) operation
  • The tripping delay is adjustable over a range of instantaneous to 30 s (0, 0.1-30 s). A sealable transparent cover for protection against unauthorized changes is available as accessory
  • The device offers maintenance free Easy Connect Technology with push-in terminals
  • Rated Frequency (f) : Supply Circuit 50/60 Hz
  • Output : 2 x 1 c/o or 1 x 2 c/o contacts, configurable
  • Time Range : 200 ms start-up delay , 0 s or 0.1-30 s tripping delay (ON or OFF)
  • Terminal Type : Screwless Terminals
  • Rated Operational Current AC-12 (Ie) : (230 V) 4 A
  • Rated Operational Current AC-15 (Ie) : (230 V) 3 A
  • Rated Operational Current DC-12 (Ie) : (24 V) 4 A
  • Rated Operational Current DC-13 (Ie) : (24 V) 2 A
  • Minimum Switching Capacity : 24 V , 10 mA
  • Degree of Protection : Housing IP50 , Terminals IP20
  • Overvoltage Category : III
  • Pollution Degree : 3
  • Short-Circuit Protective Devices : Output Circuit NC - F Type Fuses 6 A , Output Circuit NO - F Type Fuses 10 A
  • Electrical Durability : AC-12 100000 cycle
  • Mechanical Durability : 30000000 cycle
  • Wire Stripping Length : 8 mm
  • Mounting Position : Any
  • Product Net Width : 45 mm
  • Product Net Depth / Length : 104.8 mm
  • Product Net Height : 85.6 mm
  • Product Net Weight : 0.226 kg

Product Specification

Type

Rated control supply voltage (Us)

Product ID

CM-MPN.52P

3x350-580 V AC

1SVR760487R8300

CM-MPN.52S

3x350-580 V AC

1SVR750487R8300

CM-MPN.62P

3x450-720 V AC

1SVR760488R8300

CM-MPN.62S

3x450-720 V AC

1SVR750488R8300

CM-MPN.72P

3x530-820 V AC

1SVR760489R8300

CM-MPN.72S

3x530-820 V AC

1SVR750489R8300
