LAST SOLD AT ₹ 6,210.00
SKU # 1000087683

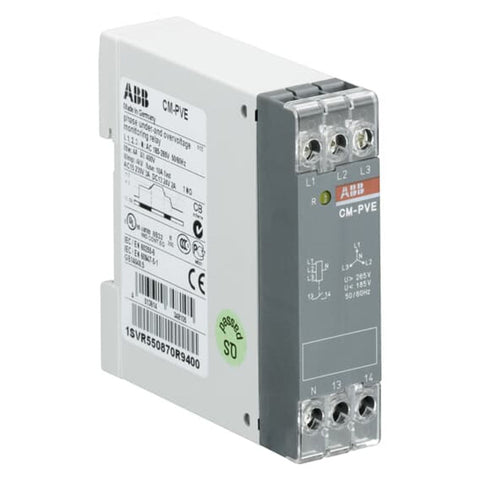

ABB CM-PVE Phase Monitoring Relay 1SVR550870R9400
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
With neutral monitoring
-
Phase monitoring relay CM-PVE, width 22.5mm, monitoring of single- or three phase over- and undervoltage, phase loss, with neutral connection, measuring range L1-L2-L3-N=185-265VAC, powered by measuring circuit, 1 n/o (closed circuit principle)
Product Specification
|
Brand |
ABB |
|
Product Type |
Monitoring Relay |
|
Product Code |
1SVR550870R9400 |
|
Model |
CM-PVE |
|
Technical |
|
|
Function |
Phase
failure detection |
|
Standards |
CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61000-6-2, IEC/EN 61000-6-3, UL 508 |
|
Measuring Range |
(L-L)
320 ... 460 V AC |
|
Rated Control Supply Voltage (Us) |
(L-L)
320 ... 460 V AC |
|
Rated Frequency (f) |
Supply Circuit 50/60 Hz |
|
Output |
1 n/o contact |
|
Time Range |
500
ms start-up delay |
|
Terminal Type |
Screw Terminals |
|
Dimensions |
|
|
Product Net Width |
22.5 mm |
|
Product Net Depth / Length |
78.5 mm |
|
Product Net Height |
78 mm |
|
Product Net Weight |
0.069 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Monitoring Relay |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
