LAST SOLD AT ₹ 3,440.00
SKU # 1000087671

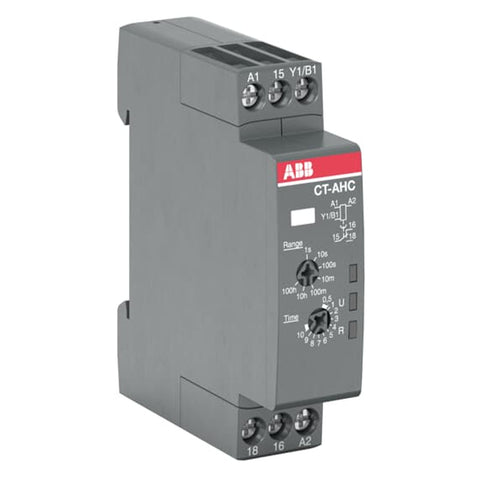

ABB CT-AHC.12 Single Function Electronic Time Relay 1SVR508110R0000
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The CT-AHC.12 is a single-function electronic time relay from the CT-C timer range
-
It provides an OFF-delay (delay on break) function with 7 time ranges from 0.05 s to 100 h
-
This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering
Product Specification
|
Brand |
ABB |
|
Product Type |
Electronic Time Relay |
|
Product Code |
1SVR508110R0000 |
|
Model |
CT-AHC.12 |
|
Technical |
|
|
Time Range |
0.05 s ... 100 h |
|
Timer Relay Type |
OFF-Delay |
|
Rated Control Supply Voltage (Us) |
24
... 240 V AC |
|
Rated Frequency (f) |
50 Hz, 60 Hz, DC |
|
Output |
1 c/o (SPDT) contact |
|
Terminal Type |
Screw Terminals |
|
Rated Operational Current AC-12 (Ie) |
(230 V) 4 A |
|
Rated Operational Current AC-15 (Ie) |
(230 V) 3 A |
|
Rated Operational Current DC-12 (Ie) |
(24 V) 4 A |
|
Rated Operational Current DC-12 (Ie) |
(24 V) 2 A |
|
Minimum Switching Capacity |
12
V |
|
Rated Insulation Voltage (Ui) |
Input
Circuit / Output Circuit 300 V |
|
Degree Of Protection |
Housing IP50, Terminals IP20 |
|
Pollution Degree |
3 |
|
Overvoltage Category |
III |
|
Short-Circuit Protective Devices |
Output
Circuit NC - F Type Fuses 6 A |
|
Connecting Capacity |
Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 1.5 mm² |
|
Tightening Torque |
0.5 ... 0.8 N·m |
|
Wire Stripping Length |
7 mm |
|
Recommended Screw Driver |
Pozidriv
1 |
|
Mounting Position |
Any |
|
Mounting On DIN Rail |
TH35-15
(35 x 15 mm Mounting Rail) acc. to IEC 60715 |
|
Standards |
CAN/CSA
C22.2 No.14, IEC/EN 63000, IEC 61812-1 |
|
Technical UL/CSA |
|
|
Maximum Operating Voltage UL/CSA |
Output Circuit 300 V AC |
|
Contact Rating UL/CSA |
B300 |
|
Connecting Capacity UL/CSA |
Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-16 AWG |
|
Tightening Torque UL/CSA |
4.43 ... 7.08 in·lb |
|
Environmental |
|
|
Ambient Air Temperature |
Operation
-20 ... +60 °C |
|
Dimensions |
|
|
Product Net Width |
17.5 mm |
|
Product Net Depth / Length |
70 mm |
|
Product Net Height |
63 mm |
|
Product Net Weight |
0.053 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Electronic Time Relay |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
