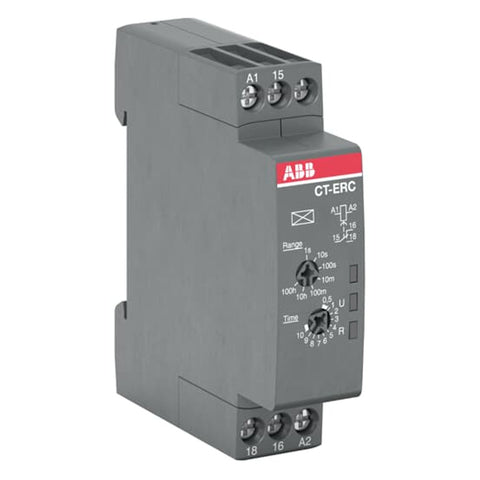

ABB CT-ERC.12 Single Function Electronic Time Relay 1SVR508100R0000

ABB CT-ERC.12 Single Function Electronic Time Relay 1SVR508100R0000

Visit the ABB Store

₹ 2,657.00

Quantity

Pack Qty : 1



Delivery Availability
Offers and Coupons
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • The CT-ERC.12 is a single-function electronic time relay from the CT-C timer range

  • It provides an ON-delay (delay on make) function with 7 time ranges from 0.05 s to 100 h

  • This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A

Product Specification

Brand

ABB

Product Type

Electronic Time Relay

Product Code

1SVR508100R0000

Model

CT-ERC.12

Technical

Time Range

0.05 s ... 100 h

Timer Relay Type

ON-Delay

Rated Control Supply Voltage (Us)

24 ... 240 V AC
24 ... 48 V DC

Rated Frequency (f)

50 Hz, 60 Hz, DC

Output

1 c/o (SPDT) contact

Terminal Type

Screw Terminals

Rated Operational Current AC-12 (Ie)

(230 V) 4 A

Rated Operational Current AC-15 (Ie)

(230 V) 3 A

Rated Operational Current DC-12 (Ie)

(24 V) 4 A

Rated Operational Current DC-12 (Ie)

(24 V) 2 A

Minimum Switching Capacity

12 V
100 mA

Rated Insulation Voltage (Ui)

Input Circuit / Output Circuit 300 V
Output Circuit 1 / Output Circuit 2 300 V

Degree Of Protection

Housing IP50, Terminals IP20

Pollution Degree

3

Overvoltage Category

III

Short-Circuit Protective Devices

Output Circuit NC - F Type Fuses 6 A
Output Circuit NO - F Type Fuses 10 A

Connecting Capacity

Flexible 1x 0.5 ... 2.5 mm², Flexible 2x 0.5 ... 1.5 mm², Rigid 1x 0.5 ... 4 mm², Rigid 2x 0.5 ... 1.5 mm²

Tightening Torque

0.5 ... 0.8 N·m

Wire Stripping Length

7 mm

Recommended Screw Driver

Pozidriv 1
0.8 x 4

Mounting Position

Any

Mounting On DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Standards

CAN/CSA C22.2 No.14, IEC/EN 63000, IEC 61812-1
UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSA

Output Circuit 300 V AC

Contact Rating UL/CSA

B300

Connecting Capacity UL/CSA

Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-16 AWG

Tightening Torque UL/CSA

4.43 ... 7.08 in·lb

Environmental

Ambient Air Temperature

Operation -20 ... +60 °C
Storage -40 ... +85 °C

Dimensions

Product Net Width

17.5 mm

Product Net Depth / Length

70 mm

Product Net Height

63 mm

Product Net Weight

0.052 kg

Warranty

As Per Manufacturer Terms and Condition


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Electronic Time Relay

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
