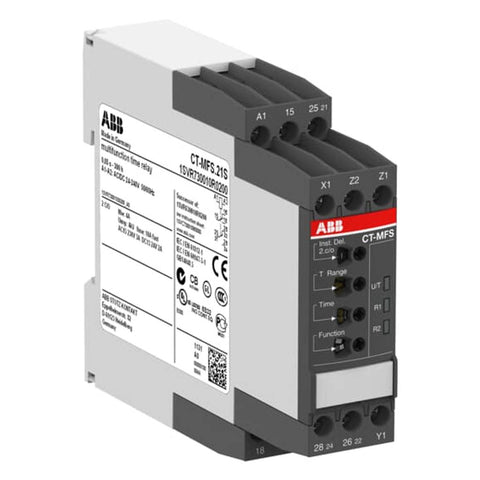

ABB CT-MFS.21S Multifunction Electronic Time Relay 1SVR730010R0200
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The CT-MFS.21S is a multifunction electronic time relay from the CT-S timer range
-
It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h
-
This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A
-
Two control inputs work with volt-free (floating) triggering
-
The CT-MFS.21S offers the possibility of connecting a remote potentiometer for the fine adjustment of the time delay
-
The second of the c/o contacts can be selected as an instantaneous contact
-
A sealable transparent cover for protection against unauthorized changes is available as accessory
-
The device offers screw connection technology with double-chamber cage connection terminals
Product Specification
|
Brand |
ABB |
|
Product Type |
Electronic Time Relay |
|
Product Code |
1SVR730010R0200 |
|
Model |
CT-MFS.21S |
|
Technical |
|
|
Time Range |
0.05 s ... 300 h |
|
Timer Relay Type |
ON-Delay, OFF-Delay, Impulse ON, Impulse OFF, Flasher with Reset, Starting with ON, Flasher with Reset, Starting with OFF, Pulse Former, ON / OFF Function, Symmetrical ON- and OFF-Delay, Flasher Starting with ON or OFF, Accumulative ON-Delay, Star-Delta |
|
Rated Control Supply Voltage (Us) |
24 ... 240 V AC/DC |
|
Rated Frequency (f) |
50 Hz, 60 Hz, DC |
|
Output |
2 c/o (SPDT) contacts |
|
Terminal Type |
Screw Terminals |
|
Rated Operational Current AC-12 (Ie) |
(230 V) 4 A |
|
Rated Operational Current AC-15 (Ie) |
(230 V) 3 A |
|
Rated Operational Current DC-12 (Ie) |
(24 V) 4 A |
|
Rated Operational Current DC-12 (Ie) |
(24 V) 2 A |
|
Minimum Switching Capacity |
12
V |
|
Rated Impulse Withstand Voltage (Uimp) |
Input
Circuit 4 kV |
|
Rated Insulation Voltage (Ui) |
Input
Circuit / Output Circuit 500 V |
|
Degree Of Protection |
Housing IP50, Terminals IP20 |
|
Pollution Degree |
3 |
|
Overvoltage Category |
III |
|
Short-Circuit Protective Devices |
Output
Circuit NC - F Type Fuses 6 A |
|
Electrical Durability |
AC-12 100000 cycle |
|
Mechanical Durability |
30000000 cycle |
|
Connecting Capacity |
|
|
Tightening Torque |
0.6 ... 0.8 N·m |
|
Wire Stripping Length |
8 mm |
|
Recommended Screw Driver |
Pozidriv
1 |
|
Mounting Position |
Any |
|
Mounting On DIN Rail |
TH35-15
(35 x 15 mm Mounting Rail) acc. to IEC 60715 |
|
Standards |
CAN/CSA
C22.2 No.14, IEC/EN 63000, IEC 61812-1 |
|
Technical UL/CSA |
|
|
Maximum Operating Voltage UL/CSA |
Output Circuit 300 V AC |
|
Contact Rating UL/CSA |
B300 |
|
Connecting Capacity UL/CSA |
Flexible 1x 18-14 AWG, Flexible 2x 18-16 AWG, Rigid 1x 20-12 AWG, Rigid 2x 20-16 AWG |
|
Tightening Torque UL/CSA |
7.08 in·lb |
|
Environmental |
|
|
Ambient Air Temperature |
Operation
-40 ... +60 °C |
|
Resistance to Shock acc. to IEC 60068-2-27 |
30g / 3 shocks / 11 ms |
|
Dimensions |
|
|
Product Net Width |
22.5 mm |
|
Product Net Depth / Length |
85.6 mm |
|
Product Net Height |
103.7 mm |
|
Product Net Weight |
0.145 kg |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Electronic Time Relay |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
