Available

SKU # 1000012225

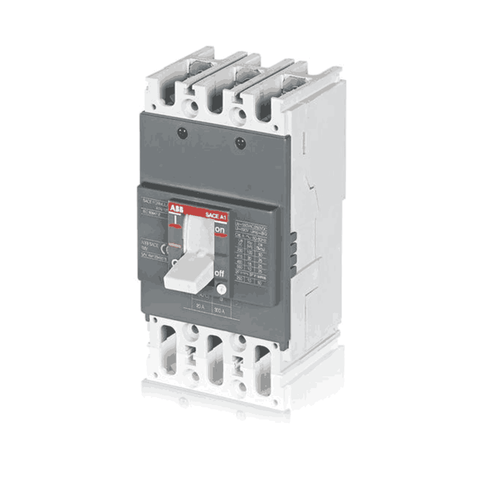

ABB Formula MCCB  Fixed Type O/L & S/C 16-125 A  10 KA Three-Pole  - A1A 125 TMF 3p

ABB Formula MCCB Fixed Type O/L & S/C 16-125 A 10 KA Three-Pole - A1A 125 TMF 3p


₹ 2,300.00

Quantity

Min Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Formula A1A 125 Fixed Three-Pole With Front Terminals And Thermomagnetic Release TMF

  • FORMULA link in accordance with IEC 60439 Standard

  • FORMULA link is a component of a power distribution system which divides the main power supply over diferent users

  • FORMULA link assembly for total discrimination between upstream and downstream devices

  • Product Net Width :76.2 mm

  • Product Net Height : 130 mm

  • Product Net Depth / Length : 60 mm

  • Product Net Weight : 0.7 kg

  • Number of Poles : 3

  • Power Loss : at Rated Operating Conditions per Pole 4 W

  • Product Main Type : SACE FORMULA

  • Product Name : Moulded Case Circuit Breaker

  • Product Type : CB

  • Rated Operational Voltage : 550 V AC,250 V DC

  • Version:F

  • Electrical Durability:1500 cycle

  • Mechanical Durability:Nr. Operations 8500 cycle

  • Terminal Connection Type:Front

Product Specification

Rated current

Type

Product id

16 A

1SDA068746R1

A1A 125 TMF 16-300 3p F F

25 A

1SDA066512R1

A1A 125 TMF 25-300 3p F F

32 A

1SDA068757R1

A1A 125 TMF 32-320 3p F F

40 A

1SDA066514R1

A1A 125 TMF 40-400 3p F F

50 A

1SDA066515R1

A1A 125 TMF 50-500 3p F F

63 A

1SDA068768R1

A1A 125 TMF 63-630 3p F F

80 A

1SDA066518R1

A1A 125 TMF 80-800 3p F F

100 A

1SDA066520R1

A1A 125 TMF 100-1000 3p F F

125 A

1SDA066521R1

A1A 125 TMF 125-1250 3p F F
