Available

SKU # 1000011934

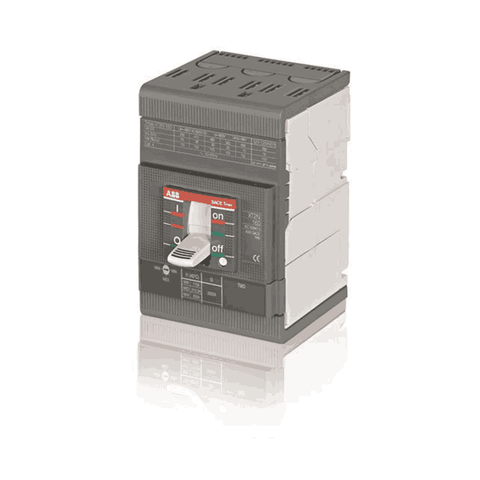

ABB MCCB TMax Motor protection Circiut Breakers 100-200A 50KA 415 VAC Three Pole  XT3S 250 MA

ABB MCCB TMax Motor protection Circiut Breakers 100-200A 50KA 415 VAC Three Pole XT3S 250 MA


₹ 10,440.00

Quantity

Pack Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • C.Breaker Tmax XT3S 250 Fixed Three-Pole With Front Terminals And Magnetic Release Ma Iu 200 A I3=1200...2400 A

  • Product Name:Moulded Case Circuit Breaker

  • Product Type:CB

  • Product Main Type:SACE Tmax XT

  • Circuit Breaker Type to be Associated:Motor protection

  • Product Net Width : 105 mm

  • Product Net Height : 150 mm

  • Product Net Depth / Length : 70mm

  • Product Net Weight : 1.7kg

  • Rated Operational Voltage:690 V AC ,500 VDC

  • Rated Voltage (Ur):690 V

  • Rated Frequency (f):50 / 60 Hz

  • Rated Uninterrupted Current (Iu):250 A

  • Rated Insulation Voltage (Ui):800 V

  • Rated Impulse Withstand Voltage (Uimp):8 kV

  • Terminal Connection Type:Fixed Circuit-Breakers Front

  • Electrical Durability:120 cycles per hour, 8000 cycle

  • Mechanical Durability:Nr. Operations 240 cycles per hour,Nr.Operations 25000 cycle

  • Standards:IEC

Product Specification

Rated current

Type

Product id

100 A

1SDA068279R1


XT3S 250 MA 100 Im=600...1200 3p F F

125 A

1SDA068280R1


XT3S 250 MA125 Im=750...1500 3p F F

160 A

1SDA068281R1


XT3S 250 MA160 Im=960...1920 3p F F

200 A

1SDA068282R1


XT3S 250 MA200 Im=1200...2400 3p F F
