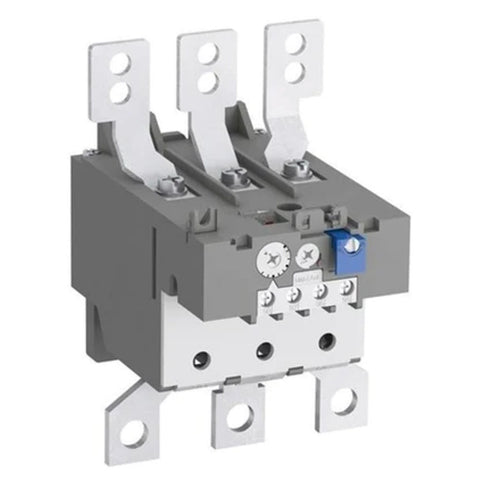

ABB Thermal Overload Relay TA200DU
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The TA200DU thermal overload relay is an economic electromechanical protection device for the main circuit
-
It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A
-
Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication
-
The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory
-
Rated Impulse Withstand Voltage (Uimp) : Auxiliary Circuit 6 kV , Main Circuit 6 kV
-
Rated Insulation Voltage (Ui) : 690 V
-
Number of Poles : 3
-
Number of Auxiliary Contacts NC : 1
-
Number of Auxiliary Contacts NO : 1
-
Number of Protected Poles : 3
-
Conventional Free-air Thermal Current (Ith) : Auxiliary Circuit NC 5 A , Auxiliary Circuit NO 5 A
-
Degree of Protection : Housing IP20 , Main Circuit Terminals IP00
-
Pollution Degree : 3
-
Mounting Position : Position 1 to 6
-
Product Net Width : 104 mm
-
Product Net Height : 151 mm
-
Product Net Depth / Length : 126 mm
-
Product Net Weight : 0.755 kg
Product Specification
|
Rated Operational Current (Ie): |
Product ID |
Description |
|
90 A |
1SAZ421201R1001 |
TA200DU-90 1NC+1NO Thermal Overload Relay TA Series 66.0 ... 90.0 A |
|
110 A |
1SAZ421201R1002 |
TA200DU-110 1NC+1NO Thermal Overload Relay TA Series 80.0 ... 110 A |
|
135A |
1SAZ421201R1003 |
TA200DU-135 1NC+1NO Thermal Overload Relay TA Series 100 ... 135 A |
|
150A |
1SAZ421201R1004 |
TA200DU-150 1NC+1NO Thermal Overload Relay TA Series 110 ... 150 A |
|
175A |
1SAZ421201R1005 |
TA200DU-175 1NC+1NO Thermal Overload Relay TA Series 130 ... 175 A |
|
200A |
1SAZ421201R1006 |
TA200DU-200 1NC+1NO Thermal Overload Relay TA Series 150 ... 200 A |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Overload Relay |
Manufacturer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Packer Details |
ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444 |
Country of Origin |
India |
