LAST SOLD AT ₹ 2,460.00

SKU # 1000016987

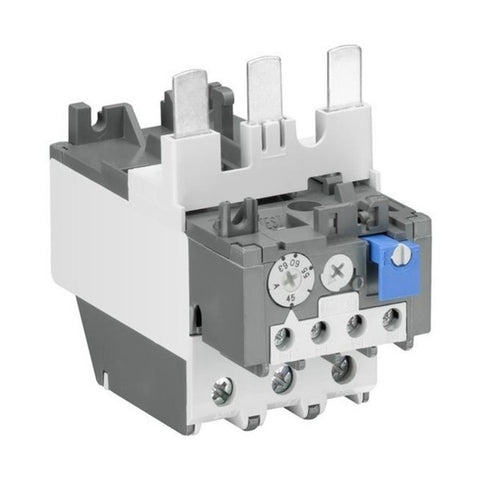

ABB Thermal Overload Relay 25-42A Three Pole TA42DU

ABB Thermal Overload Relay 25-42A Three Pole TA42DU


₹ 2,460.00

Quantity

Pack Qty : 1



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • TA42DU thermal overload relay is an economic electromechanical protection device for the main circuit

  • It offers reliable and fast protection for motors in the event of overload or phase failure. The device has trip class 10A

  • Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication

  • The overload relays are connected directly to the block contactors. Single mounting kits are available as accessory

  • Rated Frequency (f) : Auxiliary Circuit DC/50/60 Hz , Main Circuit DC/50/60 Hz

  • Rated Impulse Withstand Voltage (Uimp) : Auxiliary Circuit 6 kV , Main Circuit 6 kV

  • Rated Insulation Voltage (Ui) : 690 V

  • Number of Poles : 3

  • Product Net Width : 54 mm

  • Product Net Height : 90 mm

  • Product Net Depth / Length : 111 mm

  • Product Net Weight : 0.335 kg

  • Number of Auxiliary Contacts NC : 1

  • Number of Auxiliary Contacts NO : 1

  • Number of Protected Poles : 3

  • Conventional Free-air Thermal Current (Ith) : Auxiliary Circuit NC 5 A , Auxiliary Circuit NO 5 A

  • Degree of Protection : Housing IP20 , Main Circuit Terminals IP20

  • Pollution Degree : 3

  • Connecting Capacity Auxiliary Circuit : Flexible 1/2x 0.75 ... 2.5 mm² , Rigid 1/2x 0.75 ... 4 mm²

  • Tightening Torque : Main Circuit 1 ... 1.3 N·m , Main Circuit AuxiliaryCircuit4.5 N·m

  • Wire Stripping Length : Auxiliary Circuit 9 mm , Main Circuit 14 mm

  • Recommended Screw Driver : Auxiliary Circuit Pozidriv 1 , Main Circuit Pozidriv 2

  • Mounting Position : Position 1 to 4

  • Suitable For : AX32 , AX40

  • Standards : IEC/EN 60947-1,IEC/EN 60947-4-1,IEC/EN 60947-5-1,UL 508,CSA 22.2 No.14

Product Specification

Relay Range in Amps

Type

Product Id

18.0 ... 25.0

TA42DU 25

1SAZ311201R2001

22.0 ... 32.0

TA42DU 32

1SAZ311201R2002

29.0 ... 42.0

TA42DU 42

1SAZ311201R2003


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Overload Relay

Manufacturer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Packer Details

ABB India Limited, 88/3-88/6 Basavanahalli Village, Kasaba Hobli, Bangalore North, 562123- Bangalore-Karnataka, Phone: +91-8448233444

Country of Origin

India
