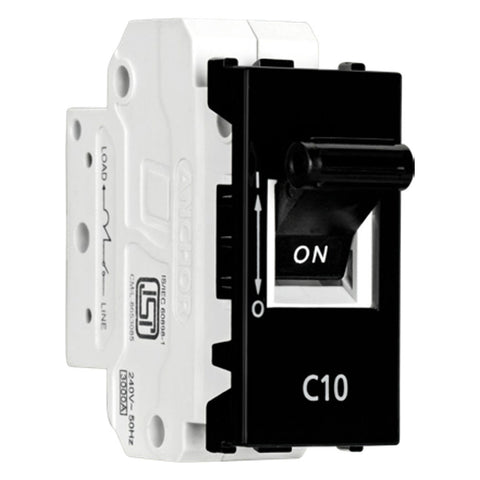

Anchor Roma Mini Modular SP MCB C Type Black

Anchor Roma Mini Modular SP MCB C Type Black


₹ 3,120.00

Quantity

Pack Qty : 12



Delivery Availability
EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • This is compact and reliable range of MINI MCBs is available with two unique mounting choices-modular and flush mounted and screw mounted

  • Ensuring operational safety of precious appliances is the foremost objective of UNO MINI-MCB range

  • It thus offers undeterred protection from overload and short-circuit, securing the precious appliances by increasing their operational longevity

Product Specification

Brand

Anchor

Product Type

MCB

Product Code | Rated Current(In)

66151B | 6A

66152B | 10A

66153B | 16A

66154B | 20A

66155B | 25A

66156B | 32A

Series

Roma

Plate Colour

Black

Applicable Standard

IS/IEC 60898-1:2002

Tripping Characteristics

C curve

Poles

SP

Rated Short Circuit Breaking Capacity (Icn)

3000A (3kA)

Rated Voltage (Un)

240V~AC

Rated Frequency (f)

50Hz

Ambient Working Temperature

-5 to 50ºC

Rated Insulation Voltage (Ui)

660V

Rated Impulse Voltage (Uimp)

4kV

Dielectric Strength

2.5kV

Terminal Capacity

10 sq.mm (max.) copper

Relative Humidity

95%

Vibration

3 g

Endurance (Mechanical)

20000 operations

Endurance (Electrical)

20000 (In < 16A)
5000 (In > 16A)

Case And Cover Material

Molded, Flame retardant plastic

Switching Mechanism

Manual & Trip-free mechanism

Tripping Mechanism

Thermal-magnetic

Installation Position

Vertical/horizontal

Wattage Loss

Much Lower than the values in IS Standard

Knob Padlocking

Yes

Termination

Cable

Mounting

Snap fit/Screw mounted (on board)

Protection Class

IP20

Suitable For Protection

Per point protection

Warranty

As Per Manufacturer Terms & Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

C Curve 1 Pole MCB

Manufacturer Details

Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888

Packer Details

Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888

Country of Origin

Japan
