SKU # 1000078577

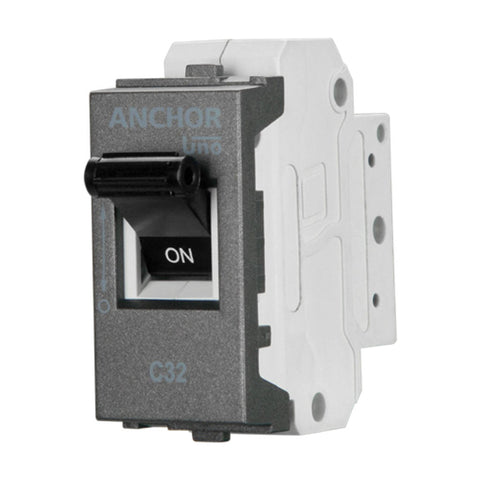

Anchor Roma Mini Modular SP MCB C Type Graphite Black
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
This is compact and reliable range of MINI MCBs is available with two unique mounting choices-modular and flush mounted and screw mounted
-
Ensuring operational safety of precious appliances is the foremost objective of UNO MINI-MCB range
-
It thus offers undeterred protection from overload and short-circuit, securing the precious appliances by increasing their operational longevity
Product Specification
|
Brand |
Anchor |
|
Product Type |
MCB |
|
Product Code | Rated Current(In) |
65980GB | 6A 65981GB | 10A 65982GB | 16A 65983GB | 20A 65984GB | 25A 65985GB | 32A |
|
Series |
Roma |
|
Plate Colour |
Graphite Black |
|
Applicable Standard |
IS/IEC 60898-1:2002 |
|
Tripping Characteristics |
C curve |
|
Poles |
SP |
|
Rated Short Circuit Breaking Capacity (Icn) |
3000A (3kA) |
|
Rated Voltage (Un) |
240V~AC |
|
Rated Frequency (f) |
50Hz |
|
Ambient Working Temperature |
-5 to 50ºC |
|
Rated Insulation Voltage (Ui) |
660V |
|
Rated Impulse Voltage (Uimp) |
4kV |
|
Dielectric Strength |
2.5kV |
|
Terminal Capacity |
10 sq.mm (max.) copper |
|
Relative Humidity |
95% |
|
Vibration |
3 g |
|
Endurance (Mechanical) |
20000 operations |
|
Endurance (Electrical) |
20000 (In < 16A) |
|
Case And Cover Material |
Molded, Flame retardant plastic |
|
Switching Mechanism |
Manual & Trip-free mechanism |
|
Tripping Mechanism |
Thermal-magnetic |
|
Installation Position |
Vertical/horizontal |
|
Wattage Loss |
Much Lower than the values in IS Standard |
|
Knob Padlocking |
Yes |
|
Termination |
Cable |
|
Mounting |
Snap fit/Screw mounted (on board) |
|
Protection Class |
IP20 |
|
Suitable For Protection |
Per point protection |
|
Warranty |
As Per Manufacturer Terms & Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
C Curve 1 Pole MCB |
Manufacturer Details |
Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888 |
Packer Details |
Panasonic Life Solutions India Pvt. Ltd. 3rd Floor, B Wing, i Think Techno Campus, Pokhran Road No-2, Thane (West), Thane - 400 607, Maharashtra, India. Phone : 022-42228888 |
Country of Origin |
Japan |
