Available!
SKU # 1000109743

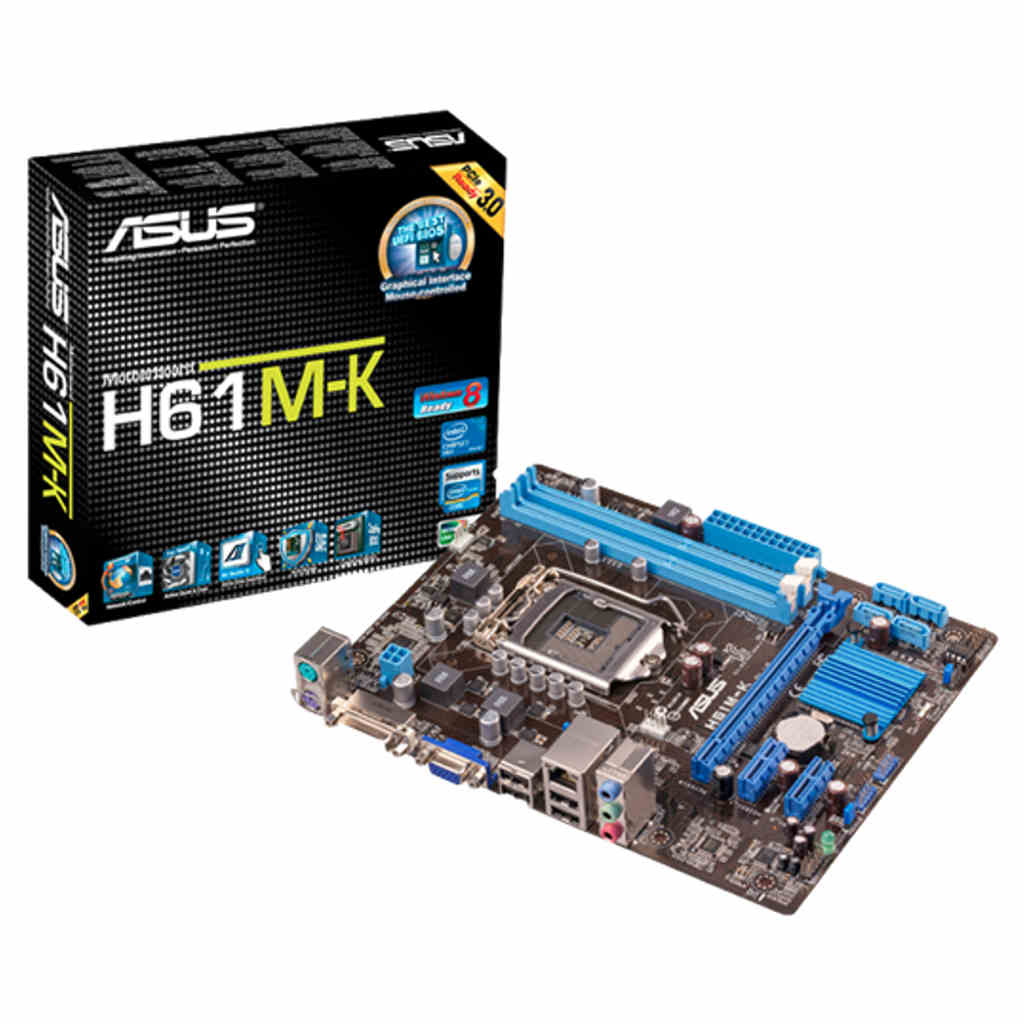

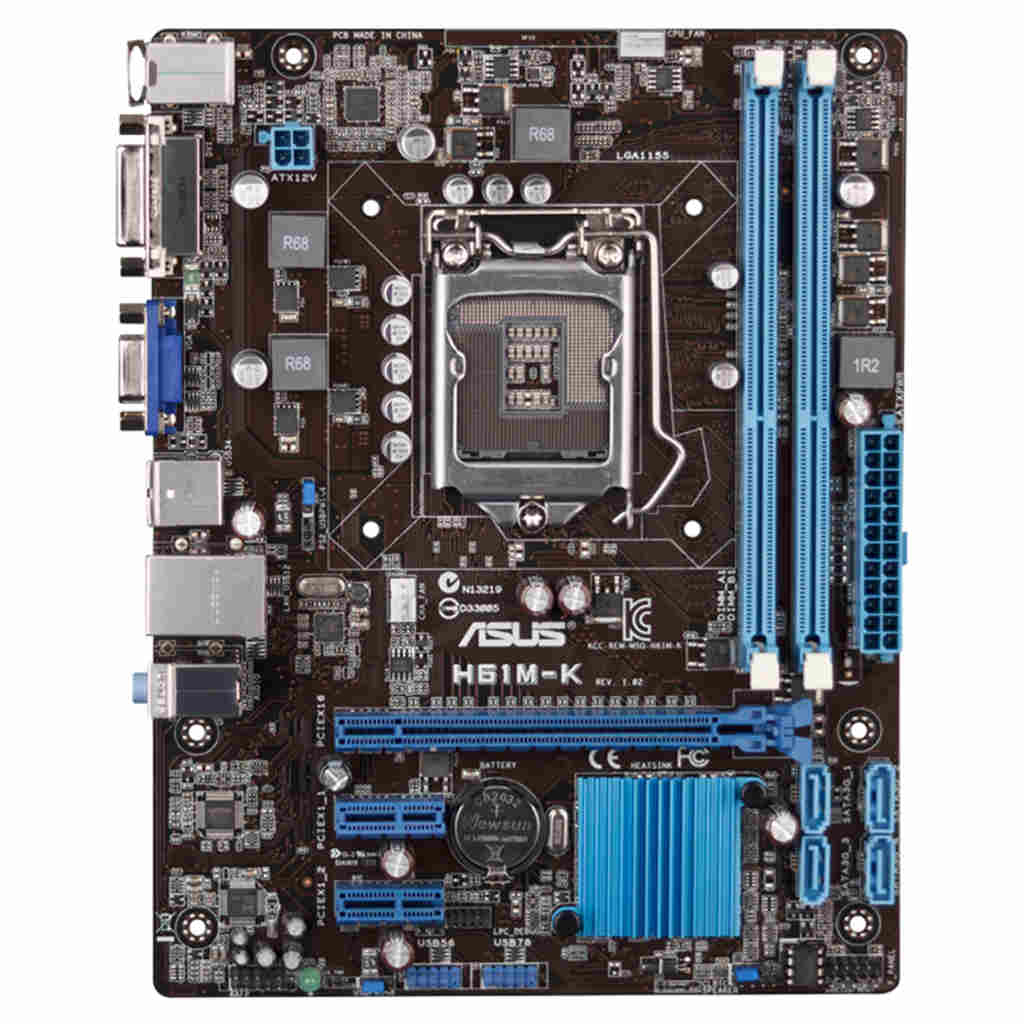

Asus Motherboard H61

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Most cost-effective micro-ATX H61 choice with best UEFI BIOS support
-
UEFI BIOS - Flexible & Easy BIOS Interface
-
Network iControl - Regulate Network Bandwidth Real-time
-
Anti-Surge - Full-time Power Guardian-Make System Free From Risk
-
AI Suite II - One-stop Access to Innovative ASUS Features
-
ASUS Exclusive Features
-
AI Suite II
-
Ai Charger
-
Anti-Surge
-
ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
-
Network iControl
-
ASUS Quiet Thermal Solution
-
ASUS Fan Xpert
-
ASUS EZ DIY
-
ASUS CrashFree BIOS 3
-
ASUS EZ Flash 2
-
ASUS MyLogo 2
Product Specification
| Brand | Asus |
| Product Type | Motherboard |
| Product Model | H61 |
| CPU | Intel Socket 1155for 3rd/2nd Generation Core, i7/Core i5/Core i3/Pentium/Celeron Processors, Supports Intel 22nm CPU, Supports Intel 32nm CPU, Supports Intel Turbo Boost Technology 2.0, Supports CPU up to 77W |
| Chipset | Intel H61(B3) |
| Memory | 2 x DIMM, Maximum 16GB, DDR32200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066 MHz Non-ECC, Un-buffered Memory, Dual Channel Memory Architecture |
| Graphic | Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports Supports DVI with max. resolution 1920 x 1200 @ 60Hz Supports RGB with max. resolution 2048 x 1536 @ 75 Hz Maximum shared memory of 1024 MB(for iGPU exclusively) |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16, 2 x PCIe 2.0 x1 |
| Storage | Intel H61(B3) chipset: 4 x SATA 3Gb/s port(s), blue, with M key, type 2242/2260/2280 storage devices support(both SATA & PCIE mode) |
| LAN | Realtek 8111F, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek ALC887/8978-Channel High Definition Audio CODEC |
| USB Ports | Intel H61(B3) chipset : 8 x USB 2.0 port(s)(4 at back panel, black, 4 at mid-board) |
| Back I/O Ports | 1 x PS/2 keyboard(purple), 1 x PS/2 mouse(green), 1 x DVI, 1 x D-Sub, 1 x LAN(RJ45) port(s), 4 x USB 2.0, 3 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s)(4-pin), 1 x Chassis Fan connector(s)(4-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 4 x SATA 3Gb/s connector(s), 1 x 24-pin EATX Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel connector(s), 1 x Front panel audio connector(s)(AAFP), 1 x Internal speaker connector(s), 1 x Clear CMOS jumper(s) |
| BIOS | 64Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-ready |
| Manageability | WOL, PXE, PME Wake Up |
| Support Disc | Drivers, ASUS Utilities, ASUS Update, Anti-Virus Software(OEM Version) |
| Form Factor | uATX Form Factor 8.9 inch x 6.9 inch( 22.6 cm x 17.5 cm ) |
| Warranty | 2 Years |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Motherboards |
Manufacturer Details |
Asus, TECH FRONT ( CHONGQING) Computer Co. Ltd, NO 18 , Zongbao Road, Shapingba Dist,Chongquing, China |
Packer Details |
Asus, TECH FRONT ( CHONGQING) Computer Co. Ltd, NO 18 , Zongbao Road, Shapingba Dist,Chongquing, China |
Importer Details |
ASUS INDIA PRIVATE LIMITED, 402, Supreme chambers, 17/18, Shah Industrial Estate, Veer Desai Road, Andheri (west), Mumbai 400053, India |
Country of Origin |
China |
