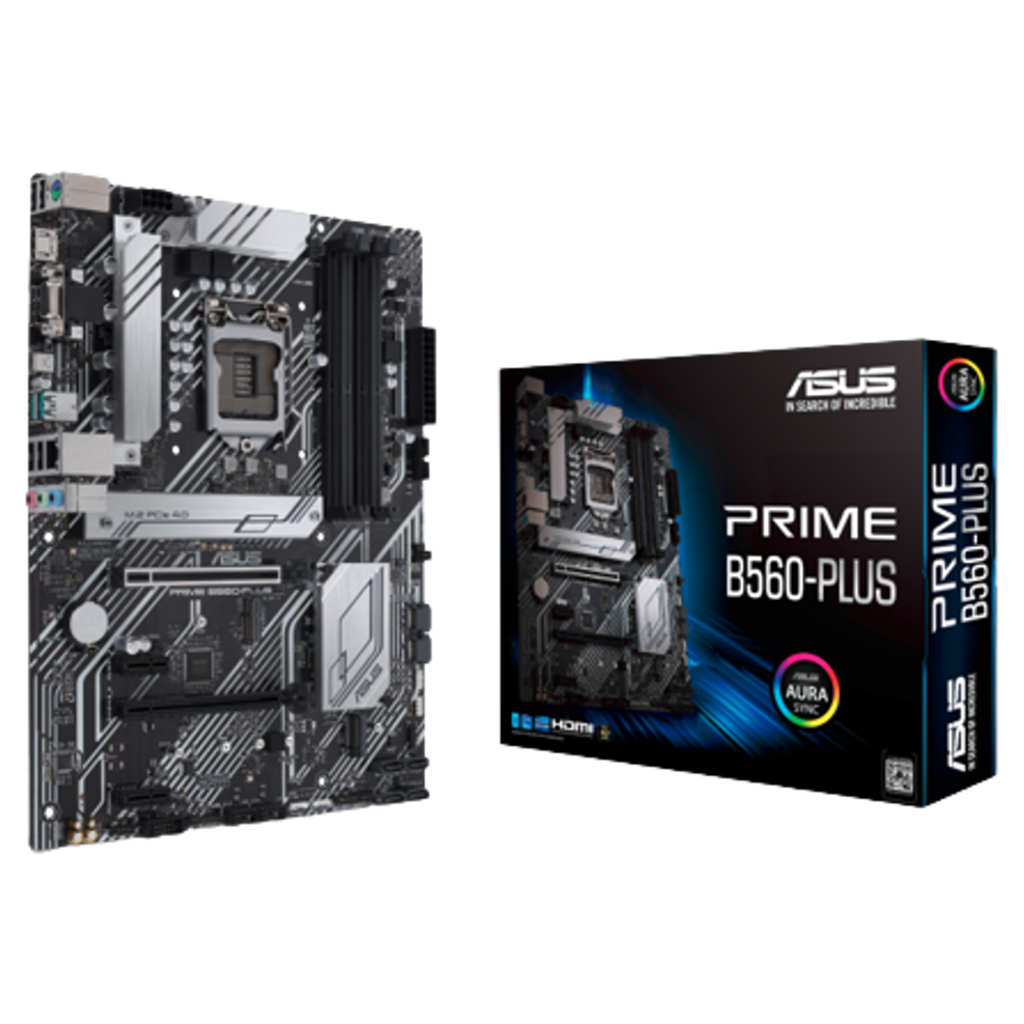

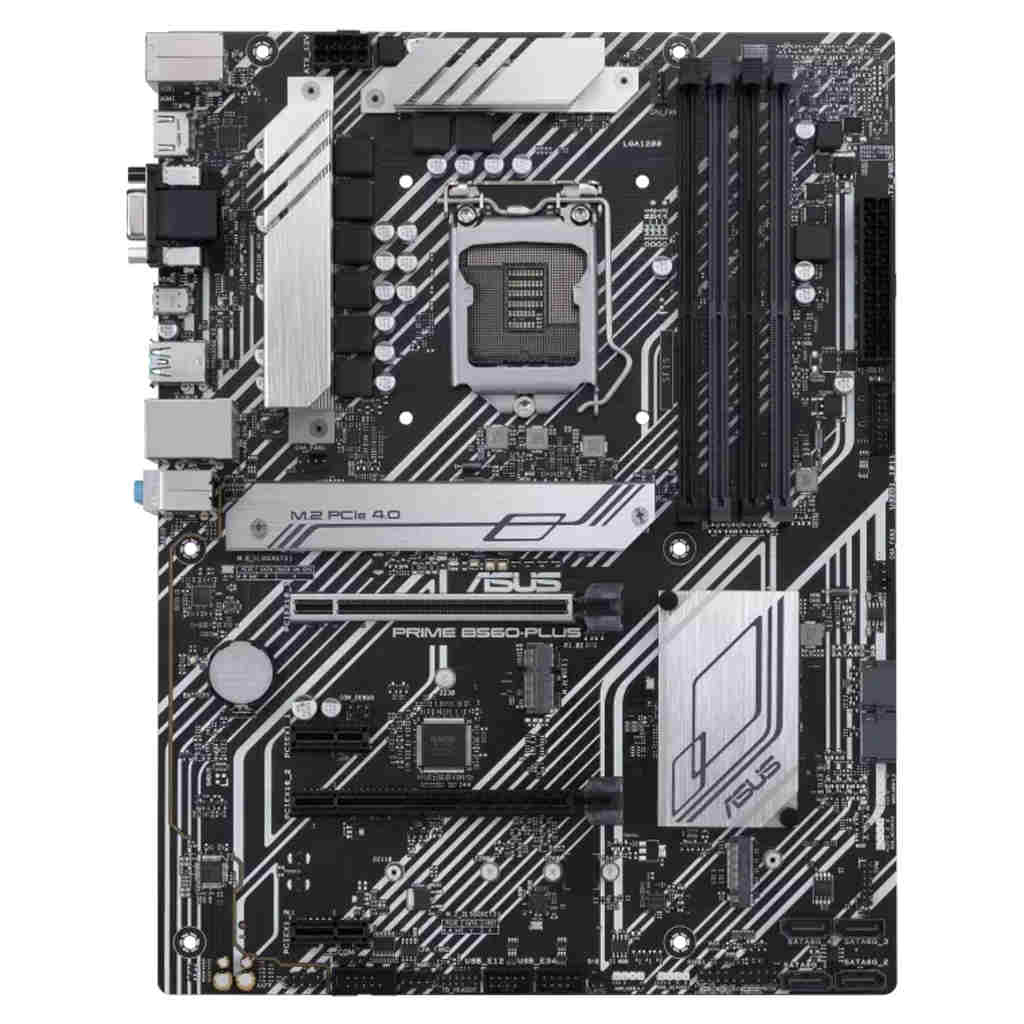

Asus Prime B560 PLUS Motherboard 128 Mb Flash ROM

Brand

Asus

Product Type

Motherboard

Product Model

Prime B560 PLUS

CPU

Supports Intel 14nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Memory

4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory

Dual channel memory architecture

Supports Intel Extreme Memory Profile(XMP)

ASUS OptiMem

11th Gen Intel processors support 2933/2800/2666/2400/2133 natively

10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz

Graphics

For Intel 11th & 10th processors, support DisplayPort 1.4 with maximum resolution of 4096 x 2304 @60Hz

Only Intel 11th processors support HDMI 2.0 with maximum resolution of 4K@60Hz, others will only support HDMI 1.4 with maximum resolution of 4K@30Hz

Expansion Slots

Intel 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel 11th processors support PCIe 4.0 x16

Intel10th processors support PCIe 3.0 x16

Intel B560 Chipset

1 x PCIe 3.0 x16 slot(supports x4 mode)

2 x PCIe 3.0 x1 slots

Storage

Intel 11th Gen Processors

M.2_1 slot(Key M) type 2242/2260/2280/22110(supports PCIE 4.0 x 4 )

Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel B560 Chipset

M.2_2 slot(Key M) type 2242/2260/2280/22110(supports PCIE 3.0 x 4 & SATA mode modes)

6 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 2 ports(2 x Type-A)

1 x USB 3.2 Gen 1 port(1 x USB Type-C)

4 x USB 2.0 ports

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek ALC897 7.1-Channel High Definition Audio CODEC

Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192kHz playback

Audio Feature

Audio Shielding

Premium Japanese audio capacitors

Dedicated audio PCB layers

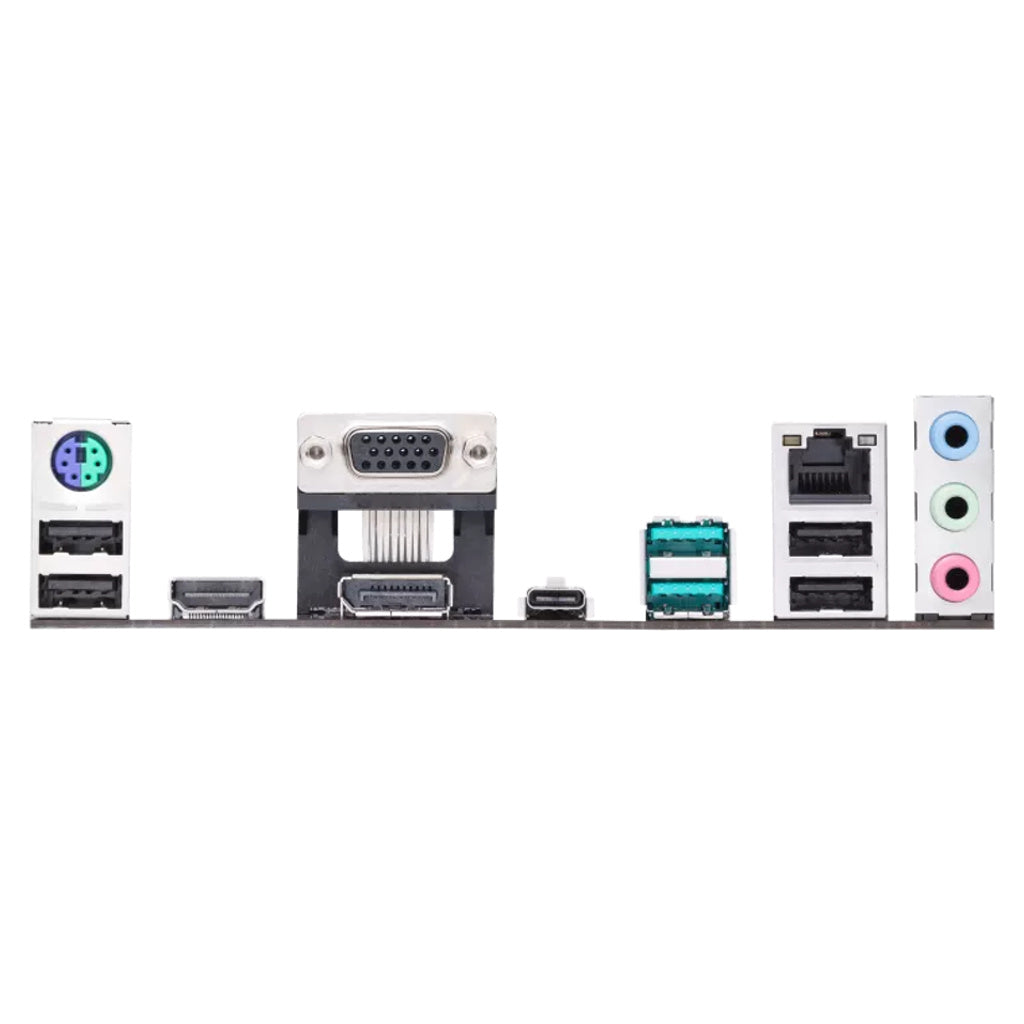

Back Panel I/O Ports

1 x DP port

1 x HDMI port

1 x D-Sub port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

1 x Intel I219-V 1Gb Ethernet port

4 x USB 2.0 ports(4 x Type-A)

2 x USB 3.2 Gen 2 ports(2 x Type-A)

1x USB 3.2 Gen 1 port(1 x USB Type-C)

Internal I/O Connectors

Fan And Cooling-Related

1 x 4-pin CPU Fan header

3 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage Related

2 x M.2 slots(Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS jumper

1 x COM Port header

1 x Front Panel Audio header(AAFP)

1 x S/PDIF out header

1 x 20-3pin System Panel header with Chassis intrude function

1 x SPI TPM header(14-1 pin)

1 x M.2 slot(key E)

1 x Thunderbolt 4 header

Special Features

Asus 5x Protection Iii

ASUS DIGI+VRM

ASUS LANGuard

ASUS Overvoltage Protection

ASUS SafeSlot Core+

ASUS Stainless-Steel Back I/O

Asus Q-Design

ASUS Q-DIMM

ASUS Q-Slot

Asus Thermal Solution

Flexible M.2 heatsink

VRM heatsink design

Asus Ez Diy

Box Headers

Aura Sync

AURA RGB headers

Addressable Gen 2 RGB headers

Software Feature

Asus Exclusive Software

Armoury Crate

AURA Creator

AURA Sync

AI Suite 3

Performance And Power Saving Utility

Turbo EVO

Digi+ VRM

EPU

Fan Xpert 2+

EZ update

ASUS CPU-Z

DAEMON Tools

Norton Anti-virus software(Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x M.2 Rubber Package

1 x IO Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Supporting DVD

Documentation

1 x User's manual

Warranty

3 Years
