Available!
SKU # 1000109744

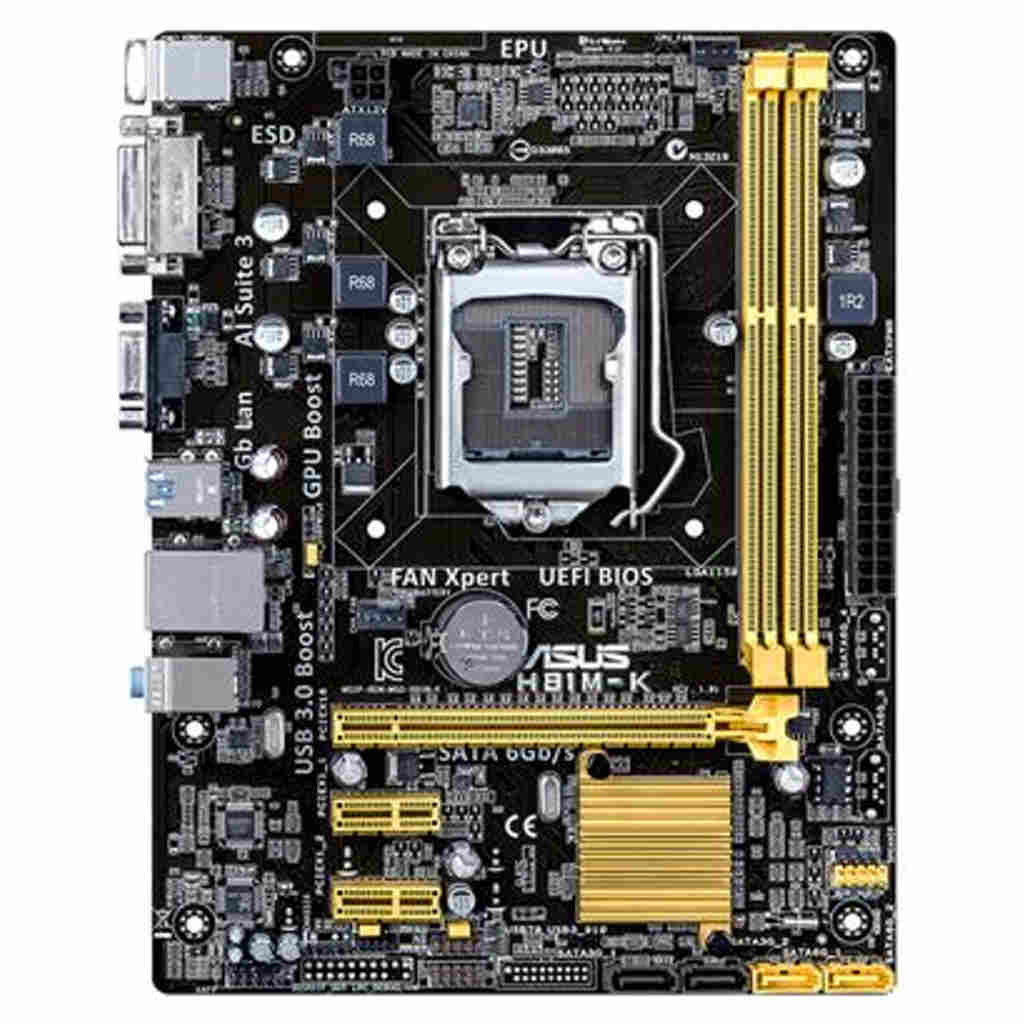

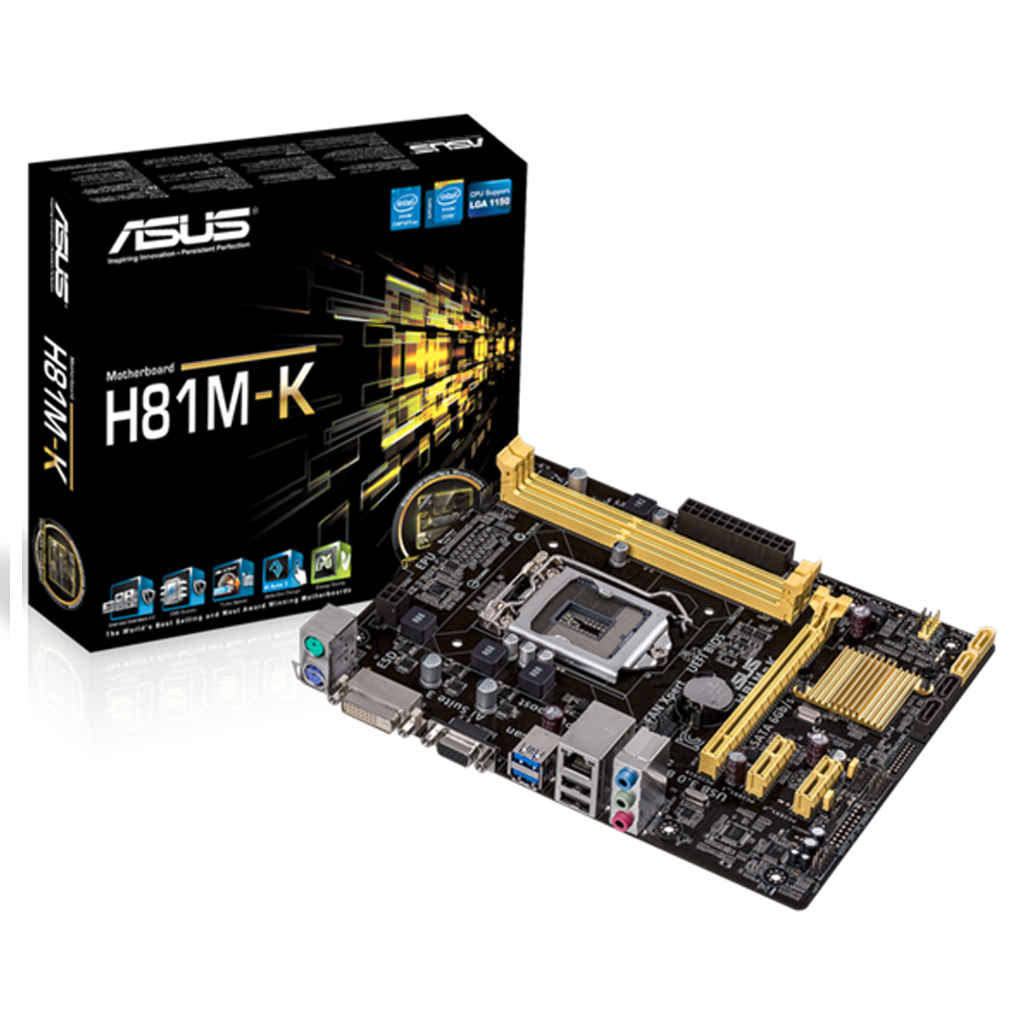

Asus Motherboard H81

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Micro-ATX H81 features intuitive UEFI BIOS, superb integrated graphics performance and unique USB 3.0 performance.
-
New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info added
-
USB 3.0 Boost(UASP Support) - 170% faster transfer speeds than traditional USB 3.0
-
AI Suite 3-One-stop access to innovative ASUS features
-
GPU Boost-Go to the limit with iGPU level up!
-
EPU - All-round energy efficiency and detailed CPU wattage settings
-
ASUS EPU
-
EPU
-
ASUS Exclusive Features
-
GPU Boost
-
AI Suite 3
-
Ai Charger
-
Anti-Surge
-
ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
-
Network iControl
-
USB 3.0 Boost
-
Disk Unlocker
-
ASUS Quiet Thermal Solution
-
Stylish Fanless Design Heat-sink solution
-
ASUS Fan Xpert
-
ASUS EZ DIY
-
ASUS CrashFree BIOS 3
-
ASUS EZ Flash 2
-
ASUS Q-Design
-
ASUS Q-Slot
Product Specification
| Brand | Asus |
| Product Type | Motherboard |
| Product Model | H81 |
| CPU | Intel Socket 1150for 4th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors |
| Chipset | Intel H81 |
| Memory | 2 x DIMM, Maximum 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory |
| Graphic | Integrated Graphics Processor Multi-VGA output support : DVI/RGB ports Supports DVI with max. resolution 1920 x 1200 @ 60Hz, Supports RGB with max. resolution 1920 x 1200 @ 60 Hz, Maximum shared memory of 1024 MB(for iGPU exclusively), Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider |
| Expansion Slots | 1 x PCIe x16, 2 x PCIe 2.0 x1 |
| Storage | Intel H81 chipset 2 x SATA 6Gb/s port(s), yellow, 2 x SATA 3Gb/s port(s), dark brown, Supports Intel Rapid Start Technology, Intel Smart Connect Technology |
| LAN | Realtek 8111G, 1 x Gigabit LAN Controller(s) |
| Audio | Realtek ALC887/8978-Channel High Definition Audio CODEC, Supports : Front Panel Jack-retasking, up to 24-Bit/192kHz playback |
| USB Ports | Intel H81 chipset : 2 x USB 3.1 Gen 1 port(s)(2 at back panel, blue) Intel H81 chipset : 6 x USB 2.0 port(s)(2 at back panel, black, 4 at mid-board) |
| Operating System Support | Windows 8, Windows 7 |
| Back I/O Ports | 1 x PS/2 keyboard(purple), 1 x PS/2 mouse(green), 1 x DVI, 1 x D-Sub, 1 x LAN(RJ45) port(s), 2 x USB 3.2 Gen 1(blue), 2 x USB 2.0, 3 x Audio jack(s) |
| Internal I/O Ports | 1 x CPU Fan connector(s)(1 x 4-pin), 1 x Chassis Fan connector(s)(1 x 4-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 2 x SATA 6Gb/s connector(s), 2 x SATA 3Gb/s connector(s), 1 x S/PDIF out header(s), 1 x 24-pin EATX Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel connector(s), 1 x Front panel audio connector(s)(AAFP), 1 x Internal speaker connector(s), 1 x Clear CMOS jumper(s) |
| BIOS | 64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD(Serial Presence Detect) memory information |
| Manageability | WfM 2.0, DMI 2.0, WOL by PME, PXE |
| Support Disc | Drivers, ASUS Utilities, EZ Update, Anti-Virus Software(OEM Version) |
| Form Factor | uATX Form Factor 8.9 inch x 6.9 inch( 22.6 cm x 17.5 cm ) |
| Warranty | 2 Years |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Motherboards |
Manufacturer Details |
Asus, TECH FRONT ( CHONGQING) Computer Co. Ltd, NO 18 , Zongbao Road, Shapingba Dist,Chongquing, China |
Packer Details |
Asus, TECH FRONT ( CHONGQING) Computer Co. Ltd, NO 18 , Zongbao Road, Shapingba Dist,Chongquing, China |
Importer Details |
ASUS INDIA PRIVATE LIMITED, 402, Supreme chambers, 17/18, Shah Industrial Estate, Veer Desai Road, Andheri (west), Mumbai 400053, India |
Country of Origin |
China |
