SKU # 1000122286

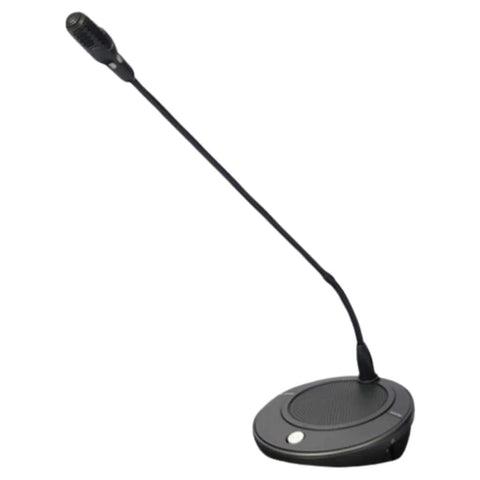

Bosch CCS700 Conference Chairman Unit CCSE-CML

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Priority button for chairman microphone
-
Optional chime tone facility preceding chairman announcements
-
Modern,unobtrusive styling to match the CCSE-DL Delegate Units
-
Microphone with flexible stem and light ring
-
Two headphone sockets
-
The CCS700 Ultro Discussion System is a suitable for use in meetings and conference venues with a limited number of participants
-
The CCSE-CML Chairman Units are equipped with enhanced functionality that enables the user to take the role of chairman in a conference or meeting
-
The unit has a fixed microphone with flexible stem
-
Headphone sockets can be used to listen to the discussion in situations with excessive background noise
-
Functions
-
Priority Button For Chairman Microphone
-
In addition to the ‘microphone on’ button the chairman units feature a ‘chairman priority’ button
-
When pressed the priority button causes all currently active delegate microphones to be permanently muted
-
Optional Chime Tone Facility For Preceding Chairman Announcements
-
A sliding switch is available on the rear of CCSE-CU which can be used to activate the chime tone to precede chairman priority calls
-
Built-In Loudspeaker
-
Loudspeaker volume is set centrally at the Control Unit for all delegate units
-
To prevent acoustic feedback,the built-in loudspeaker is automatically muted when the microphone is on
-
Two Headphone Sockets
-
Two 3.5 mm (0.14 in) stereo headphone sockets (wired for mono) allow two pairs of headphones to be connected so two delegates can simultaneously use the unit
-
Built-In Volume Control For Headphones
-
The headphone volume level can be adjusted by means of a thumbwheel on the unit for maximum comfort
-
Controls And Indicators
-
Microphone on/off button
-
Chairman priority button
-
Rotary volume control for adjusting headphone volume
-
Loudspeaker,automatically muted when microphone is on
-
Microphone ‘on’ indicator (red LED)
-
Light ring indicator on microphone stem,lights up red when microphone is on
-
Interconnections
-
1 x 2.7 m (106.3 in) cable terminated with a 8-pin male connector for loop-through connection to other
-
1 x 8-pin circular female connector for loop-through connection to other delegate or chairman units
-
2 x 3.5 mm (0.14 in) stereo headphone sockets
Product Specification
| Brand | Bosch |
| Product Type | Conference Chairman Unit |
| Product Model | CCSE-CML |
| Electrical | |
| Environmental | |
| Operating Temperature | -5 ºC to +45 ºC |
| Storage Temperature | -40 ºC to +70 ºC |
| Mechanical | |
| Table Top | |
| Color | Charcoal |
| Weight | |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) – W x H x D | 54 x 136 x 138 |
| Unit of Measurement | 1 Piece |
| Weight | 1.2 kg |
| Generic Type | Conference Chairman Unit |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country of Origin | India |
