SKU # 1000122284

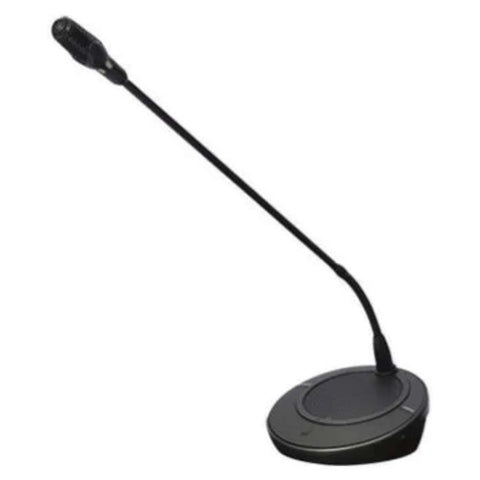

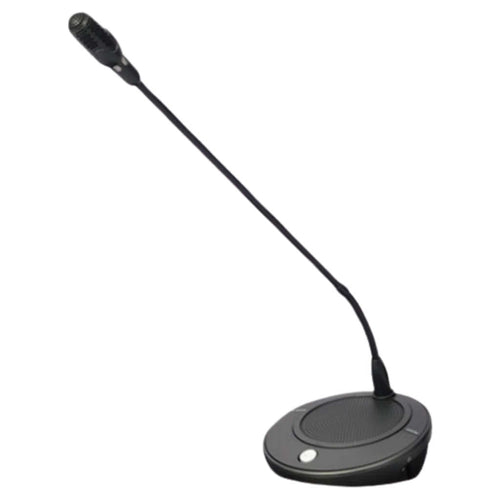

Bosch CCS700 Conference Delegate Unit CCSE-DL
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Built-in volume control for headphones
-
Microphone with flexible stem and light ring
-
Two headphone sockets
-
The CCS700 Ultro discussion system is suitable for use in meetings and conference venues with a limited number of participants
-
The CCSE-DL delegate units enable participants to actively take part in the meeting proceedings
-
A built-in microphone allows them to speak to the other delegates,and they can listen to the discussion using the built-in loudspeaker or (optional) personal headphones
-
Functions
-
The microphone has a flexible stem,which is easily adjustable to suit personal preferences
-
It also allows two people to use the same delegate unit as they can pull the microphone towards them,when it is required to speak
-
The microphone is fixed to the base of the delegate unit
-
Incorporated into the head of the microphone is a light ring which illuminates red when the microphone is on
-
Built-In Loudspeaker
-
Loudspeaker volume is set centrally at the control unit for all delegate units
-
To prevent acoustic feedback,the built-in loudspeaker is automatically muted when the microphone is on
-
Two 3.5 mm (0.14 in) stereo headphone sockets (wired for mono) allow two pairs of headphones to be connected so two delegates can simultaneously use the unit
-
Built-In Volume Control For Headphones
-
The headphone volume level can be adjusted by means of a thumbwheel on the unit for maximum comfort
-
Controls And Indicators
-
Microphone on/off button
-
Rotary volume control for adjusting headphone volume
-
Loudspeaker,automatically muted when microphone is on
-
Microphone ‘on’ indicator (red LED)
-
Light ring indicator on microphone stem,lights up red when microphone is on
-
Interconnections
-
1 x 2.7 m (106.3 in) cable terminated with a 8-pin male connector for loop-through connection to other
-
1 x 8-pin circular female connector for loop-through connection to other delegate or chairman units
-
2 x 3.5 mm (0.14 in) stereo headphone sockets
Product Specification
| Brand | Bosch |
| Product Type | Conference Delegate Unit |
| Product Model | CCSE-DL |
| Electrical | |
| Environmental | |
| Operating Temperature | -5 ºC to +45 ºC |
| Storage And Transport Temperature | -40 ºC to +70 ºC |
| Mechanical | |
| Table Top | |
| Color | Charcoal |
| Weight | |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) – W x H x D | 54 x 136 x 138 |
| Unit of Measurement | 1 Piece |
| Weight | 1.2 kg |
| Generic Type | Conference Delegate Unit |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country of Origin | India |
