SKU # 1000122192
Bosch Metal Grill Ceiling Loudspeaker 12W LCZ-UM12-IN
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-

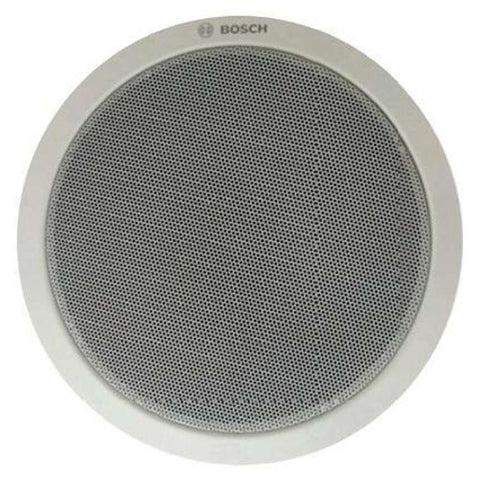

The LCZ-UM12-IN is a 12W loudspeaker with integrated circular metal grille
-
It has excellent audio performance and is easy to install with its integral mounting clips
-
The loudspeaker is suitable for high ceiling applications
-
Features
-
Excellent speech and music reproduction
-
High sound pressure level
-
Ideal for high ceiling applications
-
Functions
-
The LCZ-UM12-IN has a perforated metal grille,finished in an attractive off-white color
-
The LCZ-UM12-IN has a single piece 12W,dual cone loudspeaker
-
A 100V matching transformer is mounted on the back of the frame
-
It can be used in areas with high ceiling as well as in shops,departmental stores,offices,sports halls,hotels and restaurants
-
The loudspeaker has been tested for operating at rated power for 100 hours in accordance with IEC268-5 Power Handling Capacity (PHC) standards
-
Installation
-
Installation is easy with integral clips that securely hold the ceiling loudspeaker in its cut-out
-
The line matching transformer mounted on the ceiling loudspeaker can be tapped for nominal full power,half power and quarter power radiation to adjust in 3dB steps
Product Specification
| Brand | Bosch |
| Product Type | Ceiling Speaker |
| Product Model | LCZ-UM12-IN |
| Electrical | |
| Rated Power | 12W |
| Sound Pressure Level At 12W/1 W (1 kHz, 1 m) | 101.8 dB / 91 dB |
| Effective Frequency Range | 100 Hz to 15 kHz(-10dB) |
| Opening Angle (1kHz/4kHz,-6dB) | 175° / 40° |
| Rated Impedance | 833 Ohm |
| Rated Input Voltage | 100V |
| Connector | 4 Pole Screw Terminal |
| Environmental | |
| Operating Temperature | -5 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Colour | Off White |
| Warranty | As Per Manufacturer Terms And Conditions |
Other Details
| Dimension (CM) LxWxH | 23 x 24 x 8.9 |
| Unit Of Measurement | 1 Piece |
| Weight | 1.3 kg |
| Generic Name | Ceiling Speakers |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country Of Origin | India |
