SKU # 1000122188

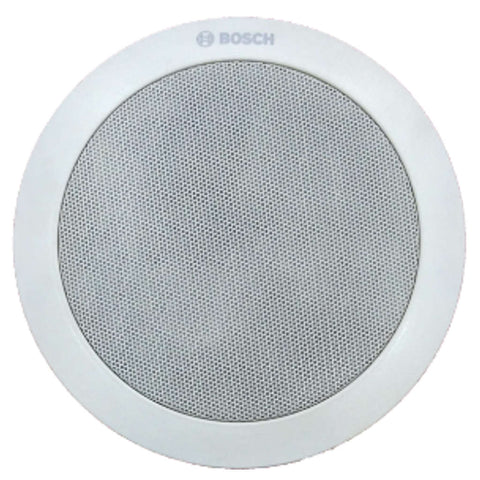

Bosch Premium Sound Ceiling Loudspeaker 20W LC1-PC20G6-6-IN
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The LC1-PC20G6-6-IN is a high-efficiency,coaxial full-range premium ceiling loudspeaker providing excellent speech and music reproduction
-
This ceiling speaker gives sound distribution for a wide scope of ceiling mounted applications
-
These are ideal for hotels,restaurants,shopping centers,convention centers,office buildings,etc
-
Where both speaker and music reproduction of high quality is required
-
The LC1-PC20G6-6-IN is a circular shaped,ABS material ceiling loudspeaker and has full-range performance in the bandwidth of 70 Hz to 20 kHz
-
It comes with a poly cone tweeter for enhanced performance
-
The speaker has a line matching transformer to connect to a 100V output from an amplifier
-
The loudspeaker has power tappings at full power (20W),half power (10W), and quarter power (5W) and 1/8th power (2.5W) to connect at different power levels
-
Features
-
Excellent sound reproduction
-
Co-axial full-range speaker with poly cone tweeter
-
Easy to install
-
Simple power tappings at full,half and quarter power
-
Tested for PHC with 100 hr continuous operation as per IEC60268-1&5
-
Functions
-
The LC1-PC20G6-6-IN model ceiling speaker is for direct connection to a 100V line output and is finished in white (RAL 9003) color
-
The ceiling loudspeaker comes with a 100V transformer with taps on the primary winding to allow different power tappings
-
Nominal full-power,half-power or quarter-power radiation (in 3 dB steps) can easily be selected by connecting the amplifier output to the appropriate tapping
Product Specification
| Brand | Bosch |
| Product Type | Ceiling Speaker |
| Product Model | LC1-PC20G6-6-IN |
| Electrical | |
| Maximum Power | 30W |
| Rated Power | 20W |
| Power Taps At 100V | 20 W – 10 W – 5 W – 2.5 W |
| Sound Pressure Level 1 kHz oct, 1 W, @1 m | 89 dB (±3 dB) |
| Effective Frequency Range (-10 dB) | 70 Hz to 20 kHz |
| Opening Angles (-6 dB) | 1 K : > 180 ̊ |
| Rated Voltage | 100 V |
| Rated Impedance At Rated Power | 500 / 1000 / 2000 / 4000 Ohm |
| Safety | Refer to EN 60065 |
| Connection | Screw terminal connector(ABS) |
| Driver / Speaker Diameter | 5 in / 8 in |
| Tweeter | ½ inch poly cone |
| Colour | White |
| Warranty | As Per Manufacturer Terms And Conditions |
Other Details
| Dimension (CM) LxWxH | 30 x 25 x 20 |
| Unit Of Measurement | 1 Piece |
| Weight | 1.5 kg |
| Generic Name | Ceiling Speakers |
| Manufacturer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Packer Details | Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
| Country Of Origin | India |
