SKU # 1000122187

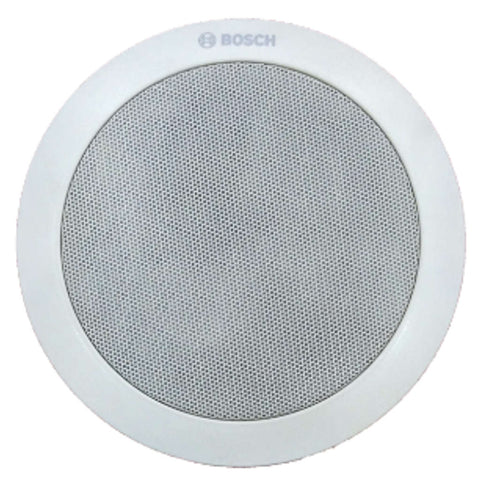

Bosch Premium Sound Ceiling Loudspeaker 15W LC1-PC15G6-6-IN
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
The LC1-PC15G6-6-IN is a high-efficiency,full-range dual cone premium ceiling loudspeaker providing excellent speech and music reproduction
-
This ceiling speaker gives sound distribution for a wide scope of ceiling mounted applications
-
These are ideal for hotels,restaurants,shopping centers,convention centers, office buildings,etc
-
where both speaker and music reproduction of high quality is required
-
The LC1-PC15G6-6-IN is a circular shaped,ABS material ceiling loudspeaker and has full-range performance in the bandwidth of 100 Hz to 20 kHz
-
The speaker has a line matching transformer to connect to a 100V output from an amplifier
-
The loudspeaker has power tappings at full power (15W),half power (7.5W), and quarter power (3.75W) to connect at different power levels
-
Functions
-
The LC1-PC15G6-6-IN model ceiling speaker is for direct connection to a 100V line output and is finished in white (RAL 9003) color
-
The ceiling loudspeaker comes with a 100V transformer with taps on the primary winding to allow different power tappings
-
Nominal full-power,half-power or quarter-power radiation (in 3 dB steps) can easily be selected by connecting the amplifier output to the appropriate tapping
Product Specification
|
Brand |
Bosch |
|
Product Type |
Ceiling Speaker |
|
Product Model |
LC1-PC15G6-6-IN |
|
Electrical |
|
|
Maximum Power |
22.5W |
|
Rated Power |
15W |
|
Power Taps At 100V |
15 W – 7.5 W – 3.75 W |
|
Sound Pressure Level 1 kHz oct, 1 W, @1 m |
88 dB (±3 dB) |
|
Effective Frequency Range (-10 dB) |
100 Hz to 20 kHz |
|
Opening Angles (-6 dB) |
1
K : > 180 ̊ |
|
Rated Voltage |
100 V |
|
Rated Impedance At Rated Power |
666 / 1333 / 2666 Ohm |
|
Safety |
Refer to EN 60065 |
|
Connection |
Screw terminal connector(ABS) |
|
Driver / Speaker Diameter |
5 in / 8 in |
|
Colour |
White |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) LxWxH |
16 x 22 x 20 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1.2 kg |
|
Generic Name |
Ceiling Speakers |
|
Manufacturer Details |
Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
|
Packer Details |
Bosch Limited Post Box No: 3000,Hosur Road, Adugodi, Bangalore - 560030, India, Phone :18004258665 |
|
Country Of Origin |
India |
