SKU # 1000129218

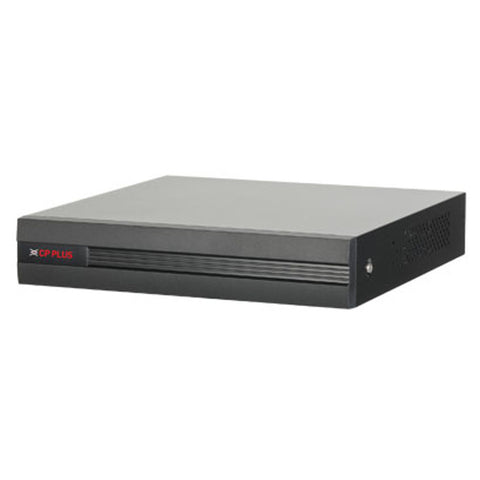

CP Plus 8 Channel Digital Video Recorder 5M-N CP-UVR-0801F1-IC
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Maximum 12 channels IP camera inputs, each channel up to 6MP; Maximum 64Mbps Incoming Bandwidth
-
Supports Full-channel AI-Coding
-
Instastream/H.265 dual-stream video compression
-
Up to 8 channels video stream (analog channel) SMD Plus
-
Support 1 SATA HDD up to 6TB, 2 USB Ports
-
1 HDMI / 1 VGA Simultaneous Video Output
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
-
CP Plus has introduced the new and impactful range of DVRs under the Lite Series which has been
integrated with the 4K and H.265 encoding technolo-gy that provides you with an outstanding at a
reasonably pocket-friendly price -
The 4k Resolution
-
Processors present in this product help in bringing out every little detail in the image
-
Along with that,this DVR uses the intuitive shortcut operation menu which lets you control and manage the system remotely as well and can work as edge storage,central storage, backup storage
-
This DVR recognizes the signal type (CVI, TVI, AHD, CVBI) and automatically adapts without requiring any manual interven-tion
-
This has provided much ease to the user since signal compatibility was always a towering concern
-
In some installations, customers have specific features and functions that are available in IP cameras only, such as two-way communication, edge storage, alarm I/O, etc
-
CP PLUS DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible
-
Amid rising security challenges such as hacking, phishing, etc
-
CP PLUS has framed strict policies to increase the security of surveillance systems, in which it makes it mandatory to change the default password to one that is alphanumeric
-
CP PLUS DVRs are equipped with UNI+ technology which supports all HD and analog video formats
-
This helps the user upgrade their systems without requiring major overhauls
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is re-leased with the surveillance hardware and exclusively sup-ports CP PLUS devices
Product Specification
| Brand | CP Plus |
| Product Type | DVR |
| Product Code | CP-UVR-0801F1-IC |
| Processor | Embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 8+4 channels, each channel up to 6MP |
| Two-Way Talk | Reuse audio in/out, RCA |
| User Interface | GUI |
| Video Output | 1 HDMI, 1 VGA |
| Video Resolution | 1920×1080, 1280×1024, 1280×720 |
| Video Compression | AI Instastream/Instastream/H.265/H.264+/H.264 |
| Video Recording | Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H D1/CIF (1 fps–25/30 fps) |
| Video Display Split | 1/4/8/9 |
| Resolution | 5M-N; 4M-N; 1080P; 1080N; 720P; 960H; D1; CIF |
| Bit Rate | 32 kbps–6144 kbps per channel |
| Video Channel | 4 channel, BNC |
| Audio Compression | G.711A, G.711U, PCM |
| Audio Input | 1 channel, RCA |
| Audio Output | 1 channel, RCA |
| Motion Detection | Support |
| Video Loss | Support |
| Smart Phone | iPhone, iPad, Android Phone |
| Hard Disk | 1 SATA port, up to 6TB |
| Camera Blank | Support |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Recording Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
| Playback | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital zoom |
| Maximum User Account | 128 users |
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Ethernet | 1 RJ-45 port (100Mbps) |
| Interface Ports | 2 USB Ports (USB 2.0) |
| Protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; InstaOn; IP Search, ONVIF 16.12, CGI Conformant |
| Power Supply | DC12V/1.5A |
| Power Consumption | <7W (without HDD) |
| Working Temperature | -10°C ~ +45°C (+14°F ~ +113°F), 0 ~ 90% RH |
| Dimension | 198.3 × 203.4 × 41.5mm |
| Weight | 0.57 kg (without HDD) |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 9.7 x 9.5 x 6 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.319 kg |
| Generic Type | 8 Channel DVR |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
