SKU # 1000139336

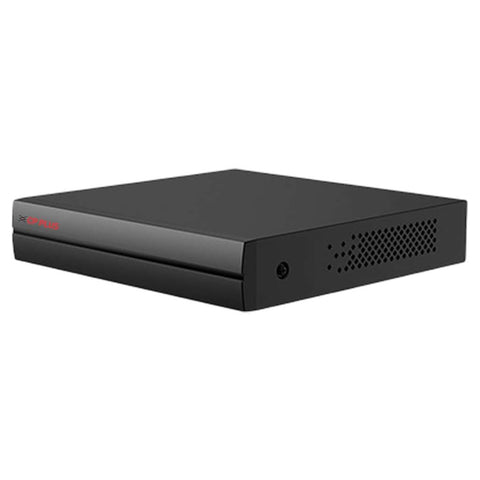

CP Plus 8 Channel Digital Video Recorder CP-UVR-0801F1-IC2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Instastream video compression
-
Max 12 channels IP camera inputs, each channel up to 6MP
-
Max 64Mbps Incoming Bandwidth
-
Supports Full-channel AI-Coding
-
1 HDMI / 1 VGA Simultaneous Video Output
-
Support 1 SATA HDD up to 16TB Each, 2 USB Ports
-
Up to 8 channels video stream (analog channel) SMD Plus
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
-
Functions
-
Instasteaam
-
Instastream is the latest innovation among the standard video compression designs
-
This technology is beneficial for minimizing storage costs and provides big savings on resolution and the rate of frame in the video through the use of Intelligent Region Perception to detect motion in each frame
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
Live Viewing
-
The benefits of high resolution video recording are numerous they not only provide more details of an image but also increase the credibility of the video as evidence
-
CP PLUS (Orange/ Indigo/ Red) DVRs offer 5MP HD resolution (2560 x 1920) for live viewing with enhanced details and image clarity
-
KVMS Pro KVMS
-
Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is released with the surveillance hardware and exclusively supports CP PLUS devices
-
Smart Motion Detection (SMD Plus)
-
CPPLUS has introduced Smart Motion Detection, AI-based SMD, which use an advanced algorithm to differentiate human and vehicular shapes within a scene and send alarms only when a person or vehicle is detected
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
DVR |
|
Product Model |
CP-UVR-0801F1-IC2 |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded LINUX |
|
Analog Camera Input |
8 channels, BNC: adaptive access by default HDCVI, AHD, TVI and CVBS access can be configured |
|
Camera Input |
1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/3 0fps. 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps. 4. CVBS: PAL/NTSC |
|
IP Camera Input |
Up to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth |
|
User Interface |
Web; GUI |
|
Video Input |
08 channel, BNC |
|
Video Output |
1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
|
SMD Plus By DVR |
8-channel: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
|
Video Compression |
H.265, H.264+, H.264 |
|
Encoding Capacity |
Main Stream: All channel 5M-N@(1 fps–10 fps), 4M-N/1080p@(1 fps– 15 fps) 1080N/ 720p/960H/D1/CIF@(1 fps–25/30 fps), Sub stream: D1/CIF (1 fps–15 fps |
|
Encode Strategy |
AI Instastream, Instastream |
|
Network Mode |
Single-address mode |
|
Video Display Split |
When IP extension mode not enabled: 1/4/8/9, When IP extension mode enabled: 1/4/8/9/16 |
|
Bit Rate |
32 kbps–6144 kbps |
|
Audio Input |
1-channel RCA 8-channel BNC (Coaxial Audio) |
|
Audio Output |
1 channel, RCA |
|
Audio Compression |
G.711A, G.711U, PCM |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Audio Sample Rate |
8 KHz, 16 bit per channel |
|
Hard Disk/Disk Type |
1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature |
|
Audio Bit Rate |
64 kbps per channel |
|
General Alarm |
Motion detection, video loss, tampering |
|
Anomaly Alarm |
No disk, disk error, low space, offline, IP conflict, MAC conflict |
|
Alarm Linkage |
Record, snapshot (panoramic) local alarm output, IPC external alarm output, access controller, audio, buzzer, log, preset, email |
|
Recording Mode |
General, motion detection, alarm, POS |
|
Browser |
Chrome IE9 or later Firefox |
|
Recording Playback |
Instant playback, general playback, event playback, tag playback |
|
Playback |
1/4/8/9 Ch. |
|
Backup Mode |
USB Device/ Network |
|
Interface Ports |
2 USB Ports(2.0) |
|
Ethernet |
1 (10/100 Mbps Ethernet port, RJ-45) |
|
Protocols |
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, ONVIF 21.06; CGI Conformant |
|
Operating Temperature |
-10 °C to +55 °C (+14 °F to +131 °F) |
|
Operating Humidity |
0%–90% (RH) |
|
Power Supply |
DC12V/1.5A |
|
Power Consumption |
<7 W |
|
Dimension |
198.3 × 203.4 × 41.5 mm |
|
Weight |
0.57 kg (without HDD) |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
19.8 x 20.3 x 4.1 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1 kg |
|
Generic Name |
8 Channel DVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
