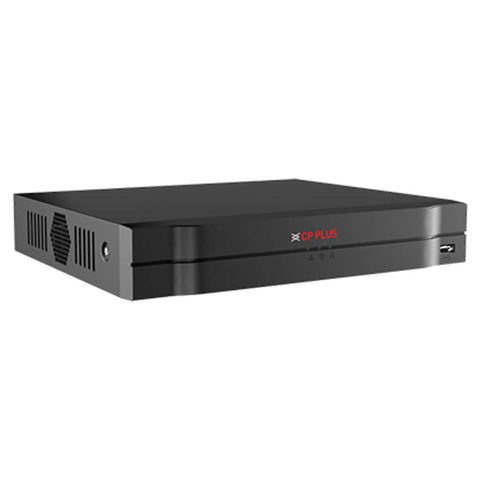

CP Plus 8 Channel Digital Video Recorder CP-UVR-0801L1-4KI3-V2
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
Supports HDCVI/AHD/TVI/CVBS/IP video inputs
-
Max 16 channels IP camera inputs, each channel up to 8MP; Max 128Mbps incoming
-
bandwidth
-
Supports Full-channel AI Instastream
-
Support 1 SATA HDD up to 16TB Each, 3 USB Ports
-
Up to 8 channels video stream (analog channel) SMD Plus
-
Up to 8 channels video stream (analog channel) perimeter protection
-
Up to 2 channels video stream (analog channel) human face recognition
-
AI Instastream/Instastream/H.265 dual-stream video compression
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
-
Functions
-
Signal Auto-Adapt
-
This DVR recognizes the signal type (CVI, TVI, AHD, CVBS) and automatically adapts without requiring any manual intervention
-
This has provided much ease to the user since signal compatibility was always a towering concern
-
Addnl IP Cameras Support
-
In some installations, customers have specific features and functions that are available in IP cameras only, such as two-way communication, edge storage, alarm I/O, etc
-
CP PLUS DVRs provide additional IP camera support to provide flexibility so that the desired solution features can be made accessible
-
Secured Password Policy (SPP)
-
Amid rising security challenges such as hacking, phishing, etc., CP PLUS has framed strict policies to increase the security of surveillance systems, in which it makes it mandatory to change the default password to one that is alphanumeric
-
Multi-Signal Support
-
CP PLUS DVRs are equipped with UNI+ technology which supports all HD and analog video formats
-
This helps the user upgrade their systems without requiring major overhauls
-
gCMOB/ iCMOB
-
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback; digital zoom ins; two-way talk, and more
-
KVMS Pro
-
The KVMS Pro is a hybrid security management software that allows the management of various surveillance devices such as cameras, DVRs/ NVRs, encoders/ decoders, etc
-
It is released with the surveillance hardware and exclusively supports CP PLUS devices
-
Note:*Actual product image may vary from that shown on the picture
Product Specification
|
Brand |
CP Plus |
|
Product Type |
DVR |
|
Product Model |
CP-UVR-0801L1-4KI3-V2 |
|
Processor |
Industrial-grade processor |
|
Operating System |
Embedded LINUX |
|
IP Camera Input |
Up to 16 channels of IPC access 8 IP channels by default + 8 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled |
|
Camera Input |
1. CVI: 4K@25/30 fps; 6MP@20 fps; 5 MP@20 fps; 5MP@25 fps; 4MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps.2. TVI: 4K@15 fps; 5MP@20fps; 4MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.3. AHD: 4K@15 fps; 5MP@20 fps; 4MP@25/30 fps; 3MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps |
|
Two-Way Talk |
Support (share the same audio input with the first channel) |
|
User Interface |
Web; Local GUI |
|
SMD Plus By DVR |
8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
|
Perimeter Performance AI By DVR (Number Of Channels) |
Advanced Model: 2 channels, 10 IVS for each channel General Model: 8 channels, 10 IVS for each channel |
|
Face Attributes |
Gender; age group; glasses; expressions; face mask; beard |
|
Face Detection Performance Of AI By DVR (Number Of Channels) |
2 channels (up to 12 face images each channel) |
|
Face Database Capacity |
Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, certificate No., countries & regions and state can be added to each face image |
|
Face Recognition Performance Of AI By DVR (Number Of Channels) |
2 channels |
|
Video Input |
8 channel, BNC |
|
Video Output |
1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable |
|
Video Compression |
H.265; Smart H.264+; H.264 |
|
Encode Strategy |
AI Instastream; Instastream |
|
Video Streaming |
Main stream: 4K@(1fps-7fps); 6 MP@ (1fps-10fps); 5 MP@(1fps-12fps); 4K-N, 4 MP, 3 MP@ (1fps-15fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1fps–25/30fps); Sub stream: 960H@(1fps–15fps); D1/CIF@(1 fps–25/30fps) |
|
Video Display Split |
1/4/8/9 |
|
Bit Rate |
32 kbps–6144 kbps |
|
Audio Input |
1-channel RCA 8-channel BNC (Coaxial Audio) |
|
Audio Output |
1 channel, RCA |
|
Audio Sample Rate |
8KHz, 16 bit Per Channel |
|
Audio Bit Rate |
64Kbps Per Channel |
|
Audio Compression |
G.711A, G.711U, PCM |
|
General Alarm |
Motion detection; video loss; tampering |
|
Anomaly Alarm |
No disk; storage error; disk full; camera offline; IP conflict; MAC conflict |
|
Intelligent Alarm |
Face detection; face recognition; perimeter protection |
|
Alarm Linkage |
Record; snapshot (panoramic); IPC external alarm output; access controller; voice prompt; buzzer; log; preset; email |
|
Smart Phone |
iPhone, iPad, Android Phone |
|
Hard Disk |
1 SATA port, up to 16TB capacity for each disk. The maximum HDD capacity varies with environment temperature |
|
Recording Playback |
1/4/9 |
|
Record Mode |
General, motion detection; intelligent; alarm; POS |
|
Playback Mode |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
|
Backup Mode |
USB Device/Network |
|
Interface Ports |
2 (1 front USB 2.0 port, 1 rear USB 3.0 port), 1 RS485 Port |
|
Network Mode |
Single-address mode |
|
Browser |
Chrome, IE9 or later, Firefox |
|
Ethernet |
1 (10/100/1000 Mbps Ethernet port, RJ-45) |
|
Protocols |
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; InstaOn cloud, ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK |
|
Power Supply |
DC 12V, 2A |
|
Power Consumption |
<10 W (without HDD) |
|
Operating Temperature |
-10°C ~ +55°C (14°F ~ +131°F) |
|
Operating Humidity |
10%–90% (RH) |
|
Dimension |
260 × 237.9 × 47.6 mm |
|
Weight |
1.40 kg (without HDD) |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
|
Dimension (CM) L x B x H |
26 x 23.7 x 4.7 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1.5 kg |
|
Generic Name |
8 Channel DVR |
|
Manufacturer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Packer Details |
Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
|
Country Of Origin |
India |
