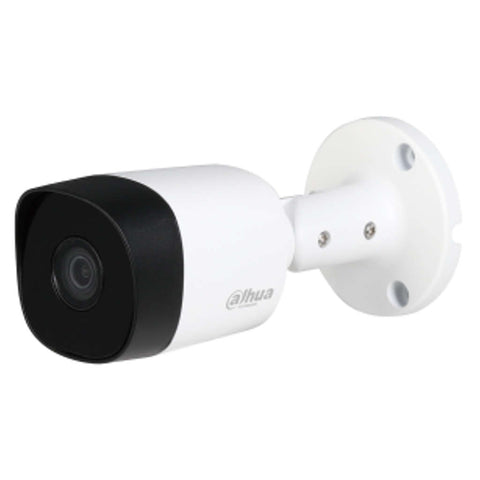

Dahua Cooper Series 2MP HDCVI IR Bullet Camera DH-HAC-B2A21P
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Max. 30fps@1080P
-
HD and SD output switchable
-
3.6mm fixed lens (2.8mm, 6mm optional)
-
Max. IR length 20m, Smart IR
-
IP67, DC12V
-
4 Signals over 1 Coaxial Cable
-
Long Distance Transmission
-
Simplicity
-
Smart IR
-
Multi-formats
-
Multi-language OSD
Product Specification
|
Brand |
Dahua |
||
|
Product Type |
Bullet Metal Camera |
||
|
Series |
Cooper |
||
|
Product Code |
DH-HAC-B2A21P |
||
|
Camera |
|||
|
Image Sensor |
1/2.7" CMOS |
||
|
Effective Pixels |
1920(H)×1080(V), 2MP |
||
|
Scanning System |
Progressive |
||
|
Electronic Shutter Speed |
PAL: 1/25~1/100000s NTSC: 1/30~1/100000s |
||
|
Minimum Illumination |
0.04Lux/F1.85, 30IRE, 0Lux IR on |
||
|
S/N Ratio |
More than 65dB |
||
|
IR Distance |
Up to 20m (66feet) |
||
|
IR On/Off Control |
Auto / Manual |
||
|
Lens |
|||
|
Lens Type |
Fixed lens / Fixed iris |
||
|
Mount Type |
Board-in |
||
|
Focal Length |
3.6mm (2.8mm, 6mm Optional) |
||
|
Max Aperture |
F1.85 |
||
|
Angle of View |
H: 93° (103°, 54.7°) |
||
|
Focus Control |
N/A |
||
|
Close Focus Distance |
800mm (500mm, 2000mm) 31.5'' (19.69'', 78.74'') |
||
|
DORI Distance |
|||
|
|
DORI Definition |
Distance |
|
|
Detect |
25px/m (8px/ft) |
2.8mm: 37m(121ft) 3.6mm: 51m(167ft) 6mm: 80m(262ft) |
|
|
Observe |
63px/m (19px/ft) |
2.8mm: 15m(49ft) 3.6mm: 20m(66ft) 6mm: 32m(105ft) |
|
|
Recognize |
125px/m (38px/ft) |
2.8mm: 8m(26ft) 3.6mm: 10m(33ft) 6mm: 16m(52ft) |
|
|
Identify |
250ppm (76px/ft) |
2.8mm: 4m(14ft) 3.6mm: 5m(17ft) 6mm: 8m(26ft) |
|
|
Pan / Tilt / Rotation |
|||
|
Pan/Tilt/Rotation |
Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360° |
||
|
Video |
|||
|
Resolution |
1080P (1920×1080) |
||
|
Frame Rate |
25/30fps@1080P, 25/30/50/60fps@720P |
||
|
Video Output |
1-channel BNC high definition video output / CVBS video output (Can switch) |
||
|
Day/Night |
Auto (ICR) / Manual |
||
|
OSD Menu |
Multi-language |
||
|
BLC Mode |
BLC / HLC / DWDR |
||
|
WDR |
DWDR |
||
|
Gain Control |
AGC |
||
|
Noise Reduction |
2D |
||
|
White Balance |
Auto / Manual |
||
|
Smart IR |
Auto / Manual |
||
|
Certifications |
|||
|
Certifications |
CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
||
|
Interface |
|||
|
Audio Interface |
N/A |
||
|
Eelectrical |
|||
|
Power Supply |
12V DC ±30% |
||
|
Power Consumption |
Max. 2.7W (12V DC, IR on) |
||
|
Environmental |
|||
|
Operating Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above-40°C (-40°F) |
||
|
Storage Conditions |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH |
||
|
Ingress Protection & Vandal Resistance |
IP67 |
||
|
Construction |
|||
|
Casing |
Aluminium |
||
|
Dimensions |
69.8mm×69.8mm×157.6mm (2.75"×2.75"×6.20") |
||
|
Net Weight |
0.25kg (0.55lb) |
||
|
Warranty |
2 Years |
||
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Bullet Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
