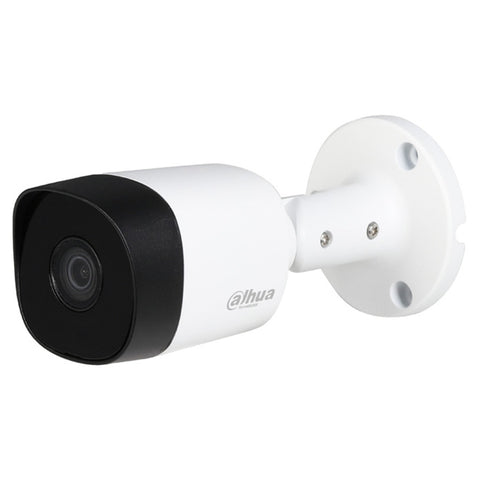

Dahua Copper Series HDCVI Fixed IR Bullet Camera 5MP DH-HAC-B2A51P
Dahua Copper Series HDCVI Fixed IR Bullet Camera 5MP DH-HAC-B2A51P 6898907185346PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Max. 25 fps@5MP (16:9 video output)
-
CVI/CVBS/AHD/TVI switchable
-
3.6 mm fixed lens (2.8 mm optional)
-
Max. IR length 20 m, Smart IR
-
IP67, DC12V
-
Functions
-
4 Signals over 1 Coaxial Cable
-
Long Distance Transmission
-
Simplicity
-
Smart IR
-
Multi-formats
-
Multi-language OSD
-
Protection
Product Specification
Brand |
Dahua |
||||
Product Type |
Bullet Camera |
||||
Series |
Copper Series |
||||
Product Model |
DH-HAC-B2A51P |
||||
Camera | |||||
Image Sensor |
1/2.7" CMOS |
||||
Max. Resolution |
2880 (H) × 1620 (V) |
||||
Pixel |
5MP |
||||
Scanning System |
Progressive |
||||
Electronic Shutter Speed |
PAL: 1/25–1/100000 s NTSC: 1/30–1/100000 s |
||||
Min. Illumination |
0.02 Lux/F2.0, 30IRE, 0 Lux IR on |
||||
S/N Ratio |
More than 65 dB |
||||
Illumination Distance |
20 m (66 feet) |
||||
Illuminator On/Off Control |
Auto;manual |
||||
Lens | |||||
Lens Type |
Fixed lens / Fixed iris |
||||
Mount Type |
M12 |
||||
Focal Length |
3.6 mm (2.8 mm Optional) |
||||
Max Aperture |
F2.0 |
||||
Angle Of View |
2.8 mm: 125° × 106° × 56° (diagonal × horizontal × vertical) 3.6 mm: 104° × 88° × 46° (diagonal × horizontal × vertical) |
||||
Focus Control |
N/A |
||||
Close Focus Distance |
2.8 mm: 0.8 m (2.6 ft) 3.6 mm: 1.2 m (3.9 ft) |
||||
Dori Distance | |||||
Lens |
Detect |
Observe |
Recognize |
Identify |
|
2.8mm |
56.0 M (183.7 Ft) |
22.4 m (73.5 ft) |
11.2 m (36.7 ft) |
5.6 m (18.4 ft) |
|
3.6mm |
80 M (262.5 Ft) |
32 m (105.0 ft) |
16 m (52.5 ft) |
8 m (26.2 ft) |
|
Pan/Tilt/Rotation |
Pan: 0° – 360° Tilt: 0° – 90° Rotation: 0° – 360° |
||||
Video | |||||
Resolution |
5M(2880×1620);4M(2560×1440) 1080P (1920 × 1080); 960H (960 × 576/960 × 480) |
||||
Frame Rate |
CVI: PAL:5M@25 fps; 4M@25fps; 1080P@25fps NTSC:5M@25 fps; 4M@30fps; 1080P@30fps AHD: PAL:4M@25 fps; NTSC:4M@30 fps; TVI: PAL:4M@25 fps; NTSC:4M@30 fps; CVBS: 960H; |
||||
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
||||
Day/Night |
Auto (ICR) / Manual |
||||
Osd Menu |
Multi-language |
||||
Blc Mode |
BLC / HLC / DWDR |
||||
Wdr |
DWDR |
||||
Gain Control |
AGC |
||||
Noise Reduction |
2D |
||||
White Balance |
Auto;manual |
||||
Smart Ir |
Yes |
||||
Mirror |
Off/On |
||||
Privacy Masking |
Off / On (8 area, rectangle) |
||||
Certifications |
CE (EN55032, EN55024, EN50130-4,EN60950-1, EN 62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) |
||||
Interface | |||||
Audio Interface |
N/A |
||||
Electrical | |||||
Power Supply |
12V DC ±30% |
||||
Power Consumption |
Max. 3.7W (12V DC, IR on) |
||||
Environmental | |||||
Operating Conditions |
–40°C to +60°C (–40°F to +140°F) /Less than 95% RH * Start up should be done at above –40°C (–40°F) |
||||
Storage Conditions |
–40°C to +60°C (–40°F to +140°F) /Less than 95% RH |
||||
Ingress Protection & Vandal Resistance |
IP67 |
||||
Construction | |||||
Casing |
Aluminium |
||||
Dimensions |
70.1 mm × 70.1 mm × 157.6 mm (2.76" × 2.76" × 6.21") |
||||
Net Weight |
0.24 kg (0.53 lb) |
||||
Gross Weight |
0.34 kg (0.75 lb) |
||||
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Bullet Camera |
Manufacturer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Packer Details |
Dahua Technology Co., Ltd. No.1199, Bin'an Road, Binjiang District, Hangzhou, China. |
Importer Details |
Dahua Technology India Pvt.Ltd. 122, Bhagwan Mahaveer Marg, Sector 44, Gurugram, Haryana 122003 Phone: 0124 456 9100 |
Country of Origin |
China |
