Out of Stock!
SKU # 1000134686

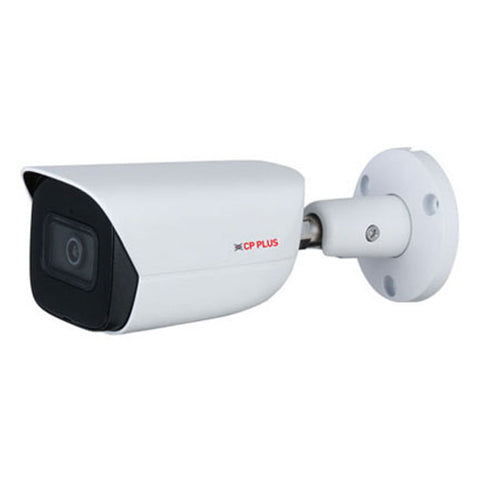

CP Plus 5MP WDR IR Bullet Camera 50 Mtr CP-UNC-TC51L5C-VMDS
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
1/2.7” 5Megapixel PS CMOS Image Sensor (0.9407 Centimeters)
-
Instastream, H.265 and H.264+ triple-stream encoding
-
Max 5MP(2592 × 1944)@20fps
-
WDR(120dB), Day/Night(ICR), 3D-DNR, ROI, AWB, AGC, BLC, HLC
-
IR Range of 50 Mtrs.
-
3.6mm fixed lens (2.8mm, 6mm optional)
-
Built-in Mic, Micro SD Card, IP67, PoE
-
Support Starlight Technology
-
Mobile Software: iCMOB, gCMOB
-
CMS Software: KVMS Pro
-
When a scene is partly dark and partly bright, that is the dy- namic range that distorts images due to this difference in the lighting
-
WDR technology provides you balanced lighting for a clear and vivid image throughout the day
-
WDR technology can be installed at entry/exit points of any building structure, jewellery shops, outdoor location among so many other places
-
Unlike some, this technology enables you to record the picture feed but view it live as well at your convenience
-
On top of that, the advantages of high-resolution video recording are numerous
-
Using an advanced algorithm, smart analytical technology lets you set a multitude of safety parameters and sends you alerts when any of those parameters have been compromised
-
Not just when there’s an occurrence of tripwire or intrusion
-
When the scene is too dark, the image is captured by illumi- nating an infrared light through the camera onto the scene that greatly helps with making the scene visible for the lens
-
It delivers color images during the day and automatically switches to the monochrome feature as the scene darkens
-
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important
areas -
Designed to allow users to access and control live streaming from CP PLUS IP Cameras, DVRs/ NVRs and Video Door Phones, the CP PLUS gCMOB/ iCMOB application offers a host
of features such as Easy GUI, up to 16 live viewing split-ups; InstaOn cloud support; Playback digital zoom ins; two-way talk, and more
Product Specification
| Brand | CP Plus |
| Product Type | Bullet Camera |
| Product Model | CP-UNC-TC51L5C-VMDS |
| Feature | Specification |
| Image Sensor | 1/2.7” 5 Megapixel PS CMOS (0.9407cm) |
| Minimum Illumination | 0.005 Lux@F1.6 |
| Effective Pixels | 2592H) x 1944(V) |
| Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| S/N Ratio | >56dB |
| RAM & ROM | 512MB & 128MB |
| Lens | 3.6mm (2.8mm, 6mm optional) |
| Mount Type | M12 |
| Maximum Aperture | F1.6 |
| Iris Type | Fixed aperture |
| Lens Type | Fixed focal |
| Close Focus Distance | 3.6 mm: 1.6m ; 2.8 mm: 0.9m; 6mm: 3.2m |
| DORI Distance | 3.6mm– 80.0m (Detect) 32.0m (Observe) 16.0m (Recognize) 8.0m (Identify) 2.8mm– 56.0m (Detect) 22.4m (Observe) 11.2m (Recognize) 5.6m (Identify) 6mm– 120.0m (Detect) 48.0m (Observe) 24.0m (Recognize) 12.0m (Identify) |
| Gain Control (AGC) | Auto/Manual |
| Video Compression | Instastream/H.265/H.264+/H.264/H.264H; H.264B; MJPEG |
| Angle Of View | 3.6mm: H: 80°; V: 59°; D: 106°, 2.8mm: H: 98°; V: 72°; D: 130°, 6mm: H: 50°; V: 36°; D: 64° |
| Back Light Compensation | BLC / HLC / WDR(120dB) |
| Video Streaming | Main stream (2592 × 1944@1~20 fps) (2688 × 1520@1~25/30 fps) sub stream(704 × 576@1~25/30 fps) third stream(1280 × 720@1~25/30 fps |
| Resolution | 5MP (2592 × 1944); 4MP (2688 × 1520); 3MP (2304 × 1296); 1080P (1920 × 1080); 1.3MP (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Privacy Mask | 4 areas |
| ICR | ICR auto switch |
| ROI | Yes (4 areas) |
| Noise Reduction | 3D-DNR |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Audio Compression | G.711a/ G.711Mu/ AAC/ G.726 |
| Audio | Built-in Mic |
| Alarm IN | 1 channels in: 5mA 3V–5V DC |
| Alarm Out | 1 channel Out: 300mA 12VDC |
| Bit Rate | H.264: 3 Kbps–8192 Kbps H.265: 3 Kbps–8192 Kbps |
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; SNMP; QoS; UPnP; NTP; ONVIF (Profile S/Profile G); CGI; InstaOn |
| Smart Detection | Tripwire, Intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Ethernet | RJ-45 (10/100Base-T) |
| Video Bit Rate | H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps |
| Event Trigger | Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection |
| SDK And API | Support |
| Scene Self-Adaptation (SSA) | Support |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lock- out; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| User Account | 20 users (Total bandwidth: 64 M) |
| Smart Phone | iPhone, iPad, Android Phone |
| IR | IR Range of 50 Mtr |
| No Of IR LEDs | 1 |
| Micro SD | FTP; Micro SD Card (support max. 256 GB); NAS |
| Browser | IE IE8, IE9, IE11, Google Chrome, Firefox |
| Operating Temperature | -40°C to +60°C (-40°F to +140°F)/ less than≤95% |
| Power Source | 12V DC/PoE |
| Power Consumption | < 5.4 W |
| Weatherproof Standard | IP67 |
| Casing | Metal |
| Dimension | 192.7 x 70.5 x 66.4 mm |
| Weight | 590 g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (MM) LxHxD | 163.4 x 69.7 x 70 |
| Unit Of Measurement | 1 Piece |
| Weight | 0.59 kg |
| Generic Name | Bullet Camera |
| Manufacturer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Packer Details | Aditya Infotech Ltd.(CP PLUS) A-12, Sector 4, NOIDA - 201301 (Delhi-NCR) India Phone : 18001026526 |
| Country Of Origin | India |
