LAST SOLD AT ₹ 7,720.00
SKU # 1000123007

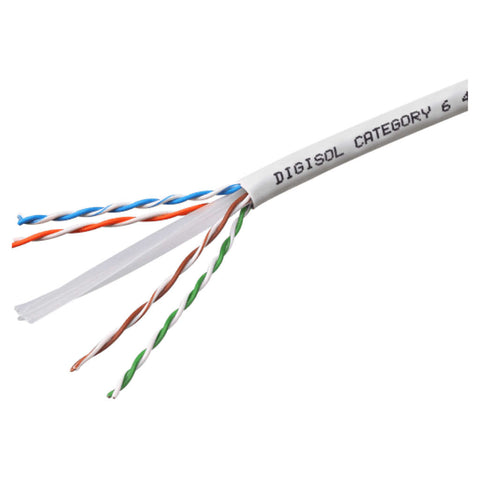

Digisol Cat6 UTP Cable 4 Pair 23AWG Pure Copper Based

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
DIGISOL Cat6 4 Pair UTP Cable has been designed for horizontal cabling networks for transmission of high speed data, digital and analog, voice and video signals over LANs
-
Supports gigabit ethernet (1000 Base-T)standard suitable for noisy environments
-
Key Features
-
Better cable material properties and design
-
Performance verified upto 250 MHz
-
Available in FRPVC jacket sheath
-
Packaged in an easy-to-pull box for easier installation (305m length)
Product Specification
Brand | Digisol |
Product Type | Cable |
Construction Properties | |
Conductor | 23 AWG, Solid bare copper |
Pairs | 4 Pair twisted wires |
Type | U/UTP CM rated |
Insulation Material | High density polyethylene (HDPE) |
Insulation Diameter Insulation | 0.89 ± 0.01 mm |
Nominal Thickness | 0.2 mm |
Central Member | PE cross seperator |
Seperator Dimension/Thickness | 4.3 mm/ 0.4 mm |
Seperator Material | Polyolefin / Polyethylene |
Jacket Sheath | FRPVC |
Jacket Average Thickness | 0.5 ± 0.01 mm |
Jacket Diameter | 5.8 ± 0.2 mm |
Rip Cord | 1 no |
Environmental Properties | |
Operating Temperature | -20°C to +70°C |
Installation Temperature | -20°C to +70°C |
Electrical Properties | |
Conductor Resistance | ≤ 9.38 Ω/100m Max. |
Mutual Capacitance | < 5.6 nF/100m Max |
Resistance Unbalance | 5% Max |
Capacitance Unbalance | Max. 330 pF/100m |
Dielectric Strength | 2.5 KVDC for 2 seconds |
Delay Skew | < 45ns |
Impedance | 100 ± 15 Ω @ 100 MHz |
Current Rating | 1.5 A Max. |
Operating Voltage | 72 V |
Mechanical Properties | |
Maximum Tensile Strength of Jacket (N/mm²) | 13.1 |
Pulling Force | 11.5 Kg (25.35 lbs) |
Bending Radius | <4 x Cable Diameter at -20 |
Warranty | As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H | 5.1 x 49.5 x 26 |
Unit of Measurement | 1 Piece |
Weight | 1.5 kg |
Generic Type | Cat 6 Cable |
Manufacturer Details | DIGISOL SYSTEMS LIMITED www.digisol.com 1800-209-3444 helpdesk@digisol.com |
Packer Details | DIGISOL SYSTEMS LIMITED www.digisol.com 1800-209-3444 helpdesk@digisol.com |
Country of Origin | India |
