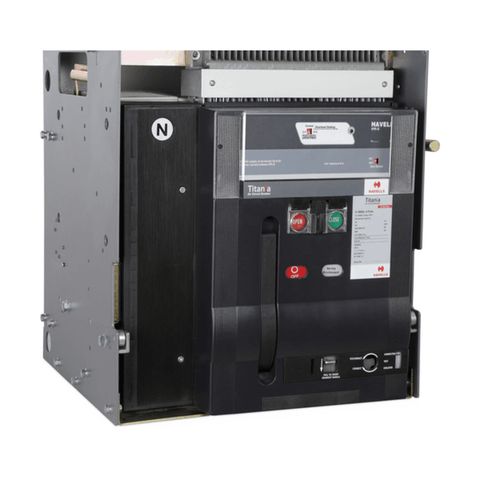

Havells Electrical Fixed ACB With Four Pole Having Microprocessor Based Release IPR E Ranging From 630A – 4000A

Havells Electrical Fixed ACB With Four Pole Having Microprocessor Based Release IPR E Ranging From 630A – 4000A


₹ 96,093.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Range 630-4000A, Breaking Capacity 50-100kA in TP & FP

Different Current Rating provide selection option depending on varied Load Conditions

Economy Version

Circuit Breaker is offered with basic protection like Overload & Short Circuit

Allows Overload Current Setting

The setting enables usage at different Load Values

DETAILED FEATURES

Current & Time Setting Available

Setting of Current & Time Delay is totally error free & is user friendly

Monitors & Measures Actual Current

It offers True RMS sensing with total immunity to system disturbances

Close and Precise protection

It is Equipped with 16 bit micro controller, these are far more reliable and have high level of repeat accuracy when compared to thermal magnetic and static releases

No external Power Required

It is Self-Powered by built in current transformer

LED Indications Available

It gives LED indication for all the tripping faults

Product Specification

TECHNICAL SPECIFICATION

Basic Features

Ref. Standard: IS / IEC 60947-2

Rated operational voltage: 690V AC / 250V AC

Rated Insulation Voltage: 1000V AC

Rated impulse voltage: 12kV

Utilisation Category: B

Rated frequency: 50/60Hz

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rating Range: 630A - 4000A

No. of Poles: Four

Breaking Capacity Withstand Capacity: Icu = Ics = Icw = 50kA & 65kA for 630A - 2000A; Icu = Ics = Icw = 75kA for 2500A; Icu = Ics = Icw = 100kA for 3200A - 4000A

Version: Fixed Type

Type of Operation: Electrical


Current Rating


Breaking Capacity

Ordering Code

Electrical

(A)

415V (kA)

Fixed

630

50

IHAFE4E06$**#

800

50

IHAFE4E08$**#

1000

50

IHAFE4E10$**#

1250

50

IHAFE4E12$**#

1600

50

IHAFE4E16$**#

2000

50

IHAFE4E20$**#

2500

75

IHAFH4E25$**#

3200

100

IHAFV4E32$**#

4000

100

IHAFV4E40$**#
