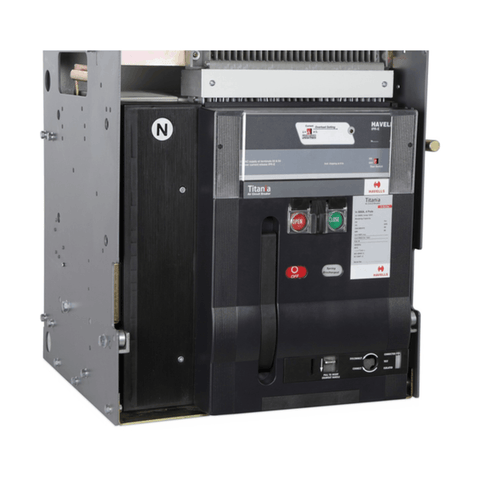

Havells Manual Fixed Without Release ACB With Four Pole Ranging From 630A – 4000A

Havells Manual Fixed Without Release ACB With Four Pole Ranging From 630A – 4000A


₹ 55,423.00

Quantity

Min Qty : 1



Delivery Availability

 Estimated Dispatch In 21 and More Business days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

Range 630-4000A, Breaking Capacity 50-100kA in TP & FP

Different Current Rating provide selection option depending on varied Load Conditions

High End Version

Circuit Breaker offers all necessary protections along with communication facility

All Measurement Facility Available

Besides measuring Current and Voltage it also offers measurement of Trip Time, Power factor, Ambient Temperature etc.

DETAILED FEATURES

Offers C3 Technology

Complete Range has Common Height, Depth & Panel Door cutout facility hence offers Retrofitting

Easily Accessible Control Terminals

This has Control Terminals provided on the Top for easy access and maintenance

Easily Replaceable Arc Chutes

Arc Chutes are also provided on the top hence are easily replicable

Cost Effective and Inventory Saving

It offers Common Accessories for the entire range, plug-in type and are front accessible

Offers Ease of Maintenance

Arcing Contacts are also accessible from the top, and can be easily replaced

Arching Contacts are of First Make Last Break type

Arching Contacts takes the major burnt of the short circuit current thereby leaving the main contacts relatively safe hence extends the life of the breaker

Product Specification

TECHNICAL SPECIFICATION

Basic Features

Ref. Standard: IS / IEC 60947-2

Rated operational voltage: 690V AC / 250V AC

Rated Insulation Voltage: 1000V AC

Rated impulse voltage: 12kV

Utilisation Category: B

Rated frequency: 50/60Hz

Operating altitude: 2000 metres

Humidity: 0 – 90%

Rating Range: 630A – 4000A

No. of Poles: Four

Breaking Capacity Withstand Capacity: Icw = 50kA & 65kA for 630A - 2000A; Icw = 75kA for 2500A; Icw = 100kA for 3200A – 4000A

Version: Fixed Type

Current Rating

Breaking Capacity

Ordering Code

Manual

(A)

415V (kA)

Fixed

630

50

IHAFE10060**#

800

50

IHAFE10080**#

1000

50

IHAFE10100**#

1250

50

IHAFE10120**#

1600

50

IHAFE10160**#

2000

50

IHAFE10200**#

2500

75

IHAFH10250**#

3200

100

IHAFV10320**#

4000

100

IHAFV10400**#
