SKU # 1000077383

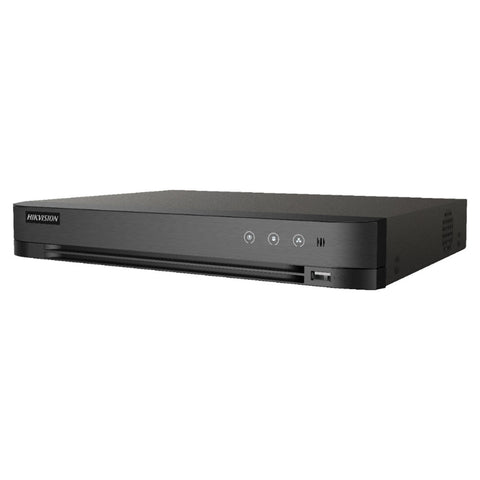

Hikvision AcuSense Face Recognition 4CH DVR 1080P Metal Body 1SATA IDS-7204HQHI-M1/FA
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
4-ch 1080p 1U H.265 AcuSense DVR
-
4 channels and 1 HDD 1U AcuSense DVR
-
Supports facial recognition or false alarm reduction based on deep learning algorithm
-
Supports face picture comparison and face picture search
-
Up to 16 face picture libraries, with up to 500 face pictures in total
-
Efficient H.265 pro+ compression technology
-
Encoding ability up to 1080p @ 15 fps
-
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Up to 6 network cameras can be connected
Product Specification
Brand |
Hikvision |
Product Type |
DVR |
Product Code |
IDS-7204HQHI-M1/FA |
Series |
AcuSense |
Facial Recognition |
|
Face Picture Comparison |
Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera) |
Face Picture Library |
Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB) |
Motion Detection 2.0 |
|
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
Perimeter Protection |
|
Human/Vehicle Analysis |
Up to 2-ch |
Recording |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Encoding Resolution |
Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) |
Video Bitrate |
32 Kbps to 6 Mbps |
Dual-Stream |
Support |
Stream Type |
Video, Video & Audio |
Audio Compression |
G.711u |
Audio Bitrate |
64 Kbps |
Video And Audio |
|
IP Video Input |
1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras |
Analog Video Input |
4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
HDTVI Input |
4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps Note: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA |
AHD Input |
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
HDCVI Input |
4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps |
CVBS Input |
PAL/NTSC |
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
HDMI Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output |
Audio Input |
1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 4-ch via coaxial cable |
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
Synchronous playback |
4-ch |
Network |
|
Remote Connection |
32 |
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
Network Interface |
1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
Wi-Fi |
Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
Auxiliary Interface |
|
SATA |
1 SATA interface, up to 10 TB capacity for each disk |
Serial Interface |
RS-485 (half-duplex) |
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
Alarm In/Out |
N/A (optional to support) |
General |
|
Power Supply |
12 VDC, 1.5 A |
Consumption |
≤ 18 W |
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
Working Humidity |
10% to 90% |
Dimension (W × D × H) |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) ≤ 1.16 kg (2.6 lb) |
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
4 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
