SKU # 1000052805

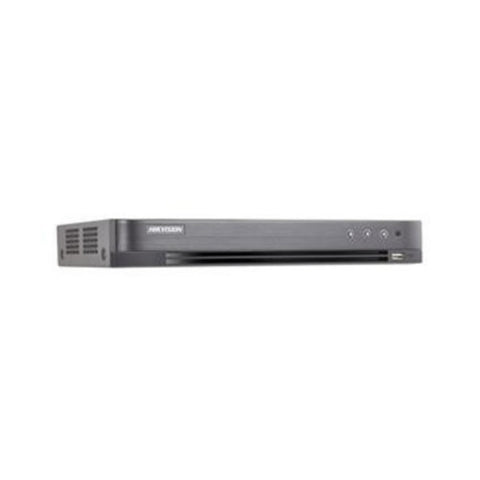

Hikvision Turbo HD DVR 8MP 4CH METAL DS-7204HTHI-K1

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Support H.265 Pro+/H.265 Pro/H.265 video compression
-
Support HDTVI/AHD/CVI/CVBS/IP video input
-
Audio via coaxial cable
-
Max. 8 IP cameras input (up to 8 PM)
-
Max. 800 m for 1080p and 1200 m for 720p HDTVI signal transmission
-
Up to 10 TB capacity per HDD
Product Specification
Brand |
Hikvision |
Product Code |
DS-7204HTHI-K1 |
Product Type |
Digital Video Recorder |
Power Supply |
12V DC |
Consumption |
≤ 15 W |
Working Temperature |
-10 oC to +55 oC (14 oF to 131 oF) |
Working Humidity |
10% to 90% |
Audio Input |
4-ch |
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Analog and HD-TVI video input |
4-ch,BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection |
Supported camera types |
Support
HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60,
720p50, 720p30, 720p25 |
Video Input Interface |
BNC (1.0 Vp-p, 75Ω) |
Audio Compression |
G.711u |
Audio Input Interface |
RCA (2.0 Vp-p, 1 kΩ) |
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ), (using the 1st channel of audio input) |
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
HDMI/VGA Output |
VGA:
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024
× 768/60Hz |
Video Bit Rate |
32 Kbps-16384 Kbps |
Stream Type |
Video/Video&Audio |
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (using the audio input) |
Audio Output |
1-ch RCA(Linear, 1kΩ) |
Audio Bit Rate |
64kbps |
Dual Stream |
Support |
Playback Resolution |
8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
Synchronous Playback |
4-ch |
Interface Type |
1 SATA Interface |
Capacity |
Up to 10 TB capacity for each disk |
Network Interface |
1; 10M / 100M / 1000M self-adaptive Ethernet interface |
USB Interface |
1 USB 2.0 Interface & 1 USB 3.0 Interface |
Serial Interface |
1; standard RS-485 serial interface, half-duplex |
Dimensions (W × D × H) |
315 × 242 × 45 mm |
Weight (without HDD) |
≤ 1.5 kg (3.3 lb |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
4 Channel DVR |
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
Country of Origin |
India |
