SKU # 1000139405

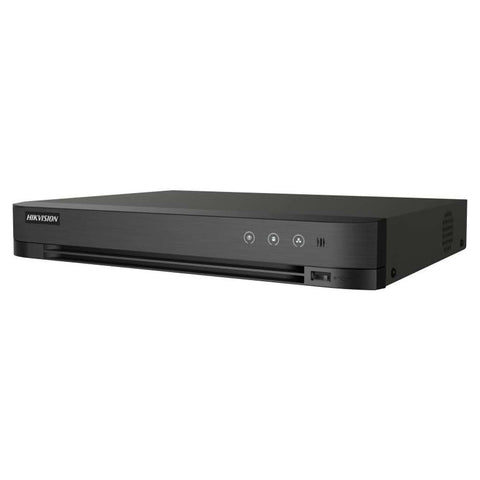

Hikvision Turbo HD DVR With AcuSense 4 Channel 1U H.265 5 MP IDS-7204HUHI-M1/X
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Key Features
-
4 channels and 1 HDD 1U AcuSense DVR
-
Support 2-ch Facial Recognition or 4-ch advanced model Perimeter Protection based on Deep Learning algorithm
-
Support 4-ch AcuSearch Technology
-
Encoding ability up to 4K/8MP @ 8fps(1-ch); 3K/5MP @12fps
-
Up to 8 channels IP camera inputs, each channel up to 8MP
-
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
-
Support All channels Motion Detection technology
-
Efficient H.265 pro+ compression technology
Product Specification
|
Brand |
Hikvision |
|
Product Type |
DVR |
|
Product Model |
IDS-7204HUHI-M1/X |
|
Facial Recognition |
|
|
Face Picture Library |
Up to 16 face picture libraries |
|
Face Picture Comparison |
Face picture comparison, face picture search; 2-ch face picture comparison alarm (HD analog camera) |
|
Perimeter Protection |
|
|
Human/Vehicle Analysis |
Up to 4-ch |
|
Video And Audio |
|
|
IP Video Input |
2-ch (up to 6-ch) Up to 8 MP resolution IP enhanced mode on: 4-ch (up to 8-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras |
|
Analog Video Input |
4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
HDMI Output |
1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
|
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output |
|
CVBS Input |
PAL/NTSC |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Synchronous Playback |
4-ch |
|
HDTVI Input |
8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,2K(2304x1296)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
|
AHD Input |
5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
|
HDCVI Input |
8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@20/25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Audio Input |
4-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable;1-ch(up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|
Recording |
|
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Encoding Resolution |
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4 Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N) |
|
Video Bitrate |
32 Kbps to 10 Mbps |
|
Dual-Stream |
Support main stream or sub stream |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Network |
|
|
Total Bandwidth |
96 Mbps |
|
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
|
Remote Connection |
32 |
|
Network Interface |
1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
1 SATA interfaces |
|
Capacity |
Up to 12 TB capacity for each disk |
|
Serial Interface |
RS-485 (half-duplex) |
|
USB Interface |
Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
|
Alarm In/Out |
N/A (optional to support);4/1 |
|
General |
|
|
Power Supply |
12 VDC, 1.5 A |
|
Consumption |
≤ 10 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
319 × 236 × 48 mm (12.6 × 9.3 × 1.9 Inch) |
|
Weight |
≤ 1.16 kg (2.6 lb) |
|
Warranty |
As Per Manufacturer Terms and Condition |
Other Details
|
Dimension (CM) L x B x H |
31.9 x 23.6 x 4.8 |
|
Unit Of Measurement |
1 Piece |
|
Weight |
1.2 kg |
|
Generic Name |
4 Channel DVR |
|
Manufacturer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
|
Packer Details |
Prama Hikvision India Pvt. Ltd., Oberoi Commerz 2, International Business Park, 18th Floor, Near Oberoi Mall, Off W. E. Highway, Goregaon (East), Mumbai-400 063. Phone : +91-22-4041 9900 |
|
Country Of Origin |
India |
