Out of Stock!
SKU # 1000041307

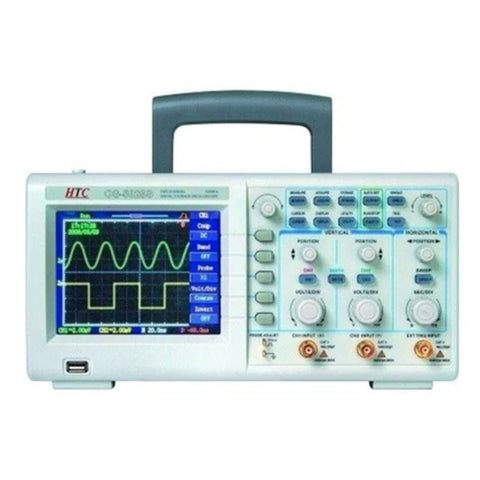

HTC 25 MHz Dual Channel Digital Oscilloscope PDO-5025S
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Vertical two channel, bandwidth of each channel is 25Mhz, 60Mhz,100Mhz
-
Real-time Max Sampling rate is 500MSa/s
-
Support communication interface RS232, USB(main sub), RJ45 LAN
-
Input attenuation 2mV/div ~ 50V/div, Easy To Measure Big Signal
-
5.7 inch color display screen
-
Standard Accessories: Passive probe, Power Cable, Instruction Manual, Driver CD
Product Specification
Brand Name |
HTC |
Product Code |
PDO-5025S |
Product Type |
Dual Channel DigitalOscilloscope |
Model No |
HTC-U6 |
Bandwidth |
25Mhz |
Y Deflection |
2mV/div ~ 50V/div |
Max Input |
400V (DC + ACPEAK) frequency ≤ 400Hz (when impedance is 1 MΩ) |
Sweep Mode |
Time Base |
Trigger Level Range |
Internal Trigger: ±4 div External Trigger: ±1.6 div |
Dimension |
300(H) x 150(W) x 130(D)mm |
Warranty |
As Per Manufacturer Terms And Condition |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Oscilloscopes |
Manufacturer Details |
HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002 |
Packer Details |
HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002 |
Country of Origin |
India |
