SKU # 1000017514

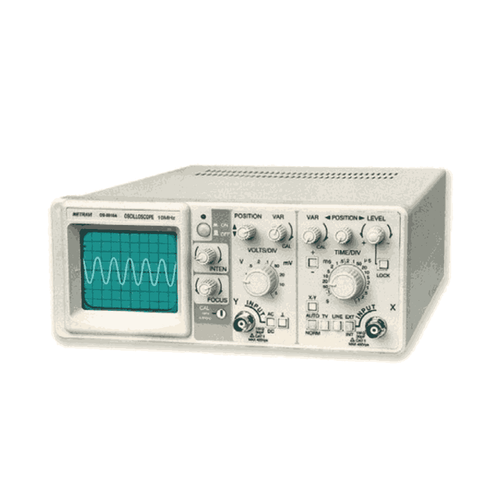

Metravi Oscilloscope OS-5010A

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Single Channel Single Trace Oscilloscope
-
Bandwidth: 10MHz
-
Confirms to EN61010-1 (1993) and EN-IEC61326-1(1997)
-
Wide measurement
-
High sensitivity and trigger lock
-
Sweep switch adopts digital code switch and accuracy
-
Proper to use in colleges and for engineers and technicians
-
Deflection factor is 5mV~5V/div in 1-2-5 Sequence in 10 steps
-
Accuracy: ±5%
-
Maximum Input Voltage: 400Vpk
-
Sweep deflection factor is 0.1us/div-0.1s/div
-
Accuracy: ±5%
-
Trigger Sensitivity: INT:1.5div EXT:0.3V
-
Trigger mode: INT, EXT, LINE, TV
-
Trigger Sweep Mode: NORM, AUTO, TV. LOCK
-
Calibration Signal: 0.5V Square wave of 1kHz
-
CRT Effective working Area: 8x10div 1div=6mm
-
Auxiliary Power Supply: 220V AC 50Hz
Product Specification
Brand |
Metravi |
Product Code |
OS-5010A |
Product Type |
Oscilloscope |
Frequency |
50 Hz |
Power Supply |
220 V AC |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Oscilloscopes |
Manufacturer Details |
Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
Packer Details |
Metravi Instruments Pvt. Ltd. 31 Ganesh Chandra Avenue Elegance Building, 6th Floor Kolkata 700 013, West Bengal, India |
Country of Origin |
India |
