SKU # 1000040490

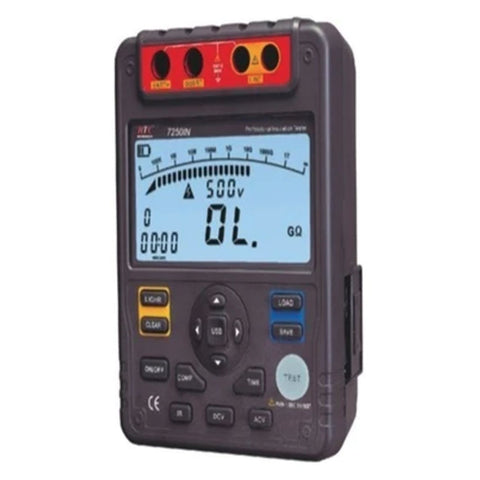

HTC 5kV-1000GΩ Digital Insulation Tester 7250IN

HTC 5kV-1000GΩ Digital Insulation Tester 7250IN


₹ 30,100.00

Quantity

Pack Qty : 1.0



Delivery Availability

 Estimated Dispatch Within 2 Days

EMI Available.

On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • Polarization index (PI)

  • Dielectric Absorption (DAR)

  • USB Interface

  • Over Range Warning

  • High Voltage Indication

  • Standard Accessories: Test Leads, USB Cable & Software, Power Adaptor

  • DC Voltage Range: ±30 - ±600V

  • DC Voltage Resolution: 1V

  • DC Voltage Accuracy: ±2.0% Of rdg + 3 Digits

  • AC Voltage Range: 30 – 600V (50/60Hz)

  • AC Voltage Resolution: 1V

  • AC Voltage Accuracy: ±2.0% Of rdg + 3 Digits

  • Power: AA 1.5V X 8

  • Product Code: 7250IN

  • Model No: HTC-D1

  • Dimension: 505(H) X 345(W) X 345(D) mm

  • Warranty: As Per Manufacturer Terms And Condition

Product Specification

Output Voltage

Display Range

Open Circuit Voltage

Test Current

Accuracy

Short Circuit

500V

0.0mΩ - 20GΩ

DC 500V 0% - + 20%

1mA-1.2mA @500KΩ

0.0MΩ – 99.9MΩ ± 3% Of rdg + 5 Digits













Maximim Then 2.0mA

100MΩ – 99.9GΩ ± 5% Of rdg + 5 Digits

10.0GΩ – 20.0GΩ ± 10% Of rdg + 5 Digits

1000V

0.0mΩ - 40GΩ

DC 1000V 0% - + 20%

1mA-1.2mA @1MΩ

0.0MΩ – 99.9MΩ ± 3% Of rdg + 5 Digits

100MΩ – 99.9GΩ ± 5% Of rdg + 5 Digits

10.0GΩ – 40.0GΩ ± 10% Of rdg + 5 Digits

2500V

0.0mΩ - 100GΩ

DC 2500V 0% - + 20%

1mA-1.2mA @2.5MΩ

0.0MΩ – 99.9MΩ ± 3% Of rdg + 5 Digits

100MΩ – 99.9GΩ ± 5% Of rdg + 5 Digits

10.0GΩ – 100GΩ ± 10% Of rdg + 5 Digits

5000V

0.0mΩ - 1000GΩ

DC 5000V 0% - + 20%

1mA-1.2mA @5MΩ

0.0MΩ – 99.9MΩ ± 3% Of rdg + 5 Digits

100MΩ – 99.9GΩ ± 5% Of rdg + 5 Digits

10.0GΩ – 99.9GΩ ± 10% Of rdg + 5 Digits


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Digital Insulation Tester

Manufacturer Details

HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002

Packer Details

HATCO Industries Hazari House, 197-201 Cowasji Hormusji Street, Dhobi Talao, Kalbadevi, Mumbai - 400 002

Country of Origin

India
