SKU # 1000072083

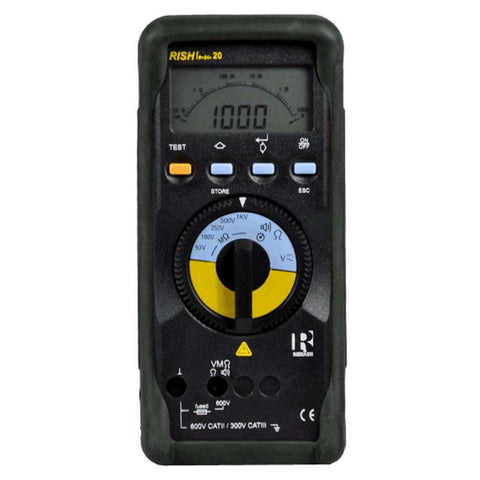

Rishabh Digital Insulation Testers Low-Voltage Insu 20A
PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments
Product Description
-
Analog + Digital Display (Log scale for Insulation Measurement)
-
The Analog scale for insulation resistance measurement is logarithmic in nature which gives the dynamic performance of an analog insulation tester
-
The Analog scale is linear for low ohm and voltage measurement
-
User Selectable Backlit Display
-
The instrument is provided with user selectable backlit for taking measurements in dark areas/poor lighting conditions
-
Connector jack for External Mains Adapter (Optional)
-
The instrument can be operated from mains supply (230V AC) instead of batteries using an external mains adapter (230V AC/9V DC, 500mA (4.5VA) isolated)
-
Test Voltages 50V/100V/250V/500V/1000V
-
Test voltages from 50V to 1000V can be selected for insulation resistance measurement. It covers all insulation tests up to 1000V
-
Insulation Resistance Measurement
-
The instrument is capable of measuring insulation resistance from10kOhm…2GOhm
-
Low Resistances Measurement (0.01Ohm... 99.9 Ohm)
-
Low resistances can be measured up to 99.9Ohm. There are two measuring ranges for Low Ohm : 9.99Ohm and 99.9Ohm
-
Hands-free continuity testing
-
Continuity testing (0-10Ohm with acoustic signal) can be done without pressing the test button
-
In addition to the display function, an acoustic signal can be activated which sounds if the adjustable limit value is violated
-
Voltmeter
-
Instrument measures voltages >25V … 600V AC/DC
-
Automatic discharge for capacitive circuits after test measurement
-
Capacitive devices under test, such as cables and windings that get charged during the test are discharged by the tester
-
Live circuit detection
-
Displays presence of voltages >25V irrespective of function selected
-
Blown fuse indication
-
The display FUSE points to a blown fuse
-
Pre-selectable measurement time for Insulation Resistance Measurement
-
In normal course, the insulation test terminates and the measured insulation resistance value remains on display for 2 sec after the test key is released
-
With the Pre-selectable measurement time feature, the insulation test continues and the measured value remains on the display for the pre-determined time. Pre-selectable time: 10 sec - 5 min
-
Pre-selectable limit checks (Go/ No-go option) for MOhm / Gohm
-
An acoustic signal can be generated when the measured value of insulation resistance falls below an adjustable limit value
-
Lead resistance null facility
-
The instrument provides a facility to compensate the resistance of the leads for an accurate measurement of low resistances
-
Storage of MIN / MAX values
-
In addition to the display of the actual measured value, the minimum or maximum value can constantly be updated or stored
-
Storage Memory for last 10 readings
-
The instrument provides a facility to store and recall 10 values in each of the 5 ranges of insulation resistance measurement, continuity and resistance measurement
-
Stop Watch
-
This function allows you to measure elapsed time up to 1 hour
-
Auto-power off function
-
The instrument turns off automatically, if any of the keys or the selector switch have not been activated for about 10 minutes in insulation range and 5 minutes in other ranges or can be switched to continuous operation
-
Protective holster for rough duty
-
A holster of soft rubber with tilt stand protects the meter against damage in case of shock and drop
Product Specification
|
Brand |
Rishabh |
|
Product Type |
Digital Insulation Testers |
|
Product Model |
Insu 20A |
|
Operating Temperature |
-20° to 60°C |
|
Accuracy |
±5% ±2D |
|
Insulation Resistance Range |
10 KΩ-2 GΩ |
|
Test Voltage |
50V/100V/250V/500V/1000V |
|
Battery |
6 x 1.5V Non-Rechargeable Cells |
|
Voltage |
1000 V |
|
Dimensions |
84x195x35 mm |
|
Weight |
500 g including battery |
|
Warranty |
As Per Manufacturer Terms And Conditions |
Other Details
Dimension (CM) - L x B x H |
|
Unit of Measurement |
|
Weight |
kg |
Generic Type |
Digital Insulation Tester |
Manufacturer Details |
Rishabh Enterprises, 16/4, Rani Jhansi Road, Behind Guru Nanak Bearing Marketing, Motia Khan, Pahar Ganj, New Delhi , Central Delhi, Delhi-110055, India |
Packer Details |
Rishabh Enterprises, 16/4, Rani Jhansi Road, Behind Guru Nanak Bearing Marketing, Motia Khan, Pahar Ganj, New Delhi , Central Delhi, Delhi-110055, India |
Country of Origin |
India |
