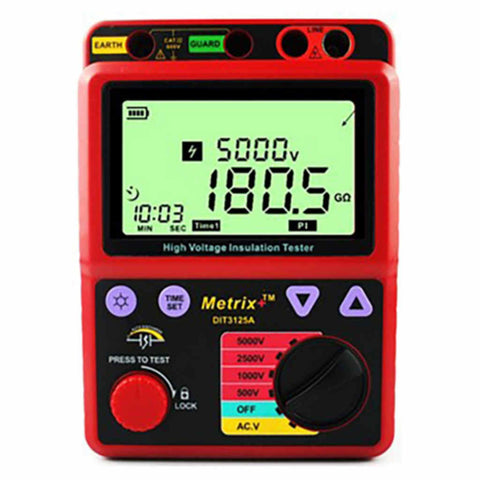

Metrix Plus Digital Insulation Tester 5kV DIT 3125A Eco
Metrix Plus Digital Insulation Tester 5kV DIT 3125A Eco 8019548242114
PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
Key Features
-
5kV Digital Insulation Tester with DC Adapter or batteries for power supply
-
Features
-
Backlit LCD display
-
Auto discharge
-
Timer measurement function and PI measurement
-
DC Adapter or batteries for power
-
Live circuit warning symbol with audio sound
-
Low voltage indication
-
Auto power off
Product Specification
| Brand | Metrix Plus |
| Product Type | Insulation Tester |
| Product Model | DIT 3125A Eco |
| Display | 999 count (1000 count only at 1TΩ) |
| Rated Voltage | 500V / 1000V / 2500V / 5000V |
| Insulation Resistance Testing Range | 0.0MΩ ~ 1000GΩ |
| Accuracy | 0~99.9GΩ: ±2%rdg +3dgt; >100GΩ: +20% +3dgt |
| Short Circuit Current | 1.3mA Approximately |
| Voltage Testing Range | DC/AC 30 ~ 600V (50/60Hz) |
| Voltage Testing Accuracy | +2%rdg +3dgt |
| Voltage Resolution | 1.0V |
| Sampling Rate | 0.5 ~ 10 times/sec |
| Maximum Short Circuit Current | 1.3mA |
| Operating Conditions | 0 ~ 40C, <85%RH |
| Storage Conditions | -20 ~ 60C, <90%RH |
| Power | External power supply: DC adapter 12V/1A; or 8x1.5V LR14 battery |
| Size | 153 x 213 x 95 mm |
| Weight | 1027 g |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 153 x 213 x 95 |
| Unit Of Measurement | 1 Piece |
| Weight | 1.027 kg |
| Generic Type | Digital Insulation Tester |
| Manufacturer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Packer Details | Metrix Plus Instruments 207, Anand Jyoti Building, 41, N S Road, Kolkata 700 001 |
| Country Of Origin | India |
