Available!

SKU # 1000070130

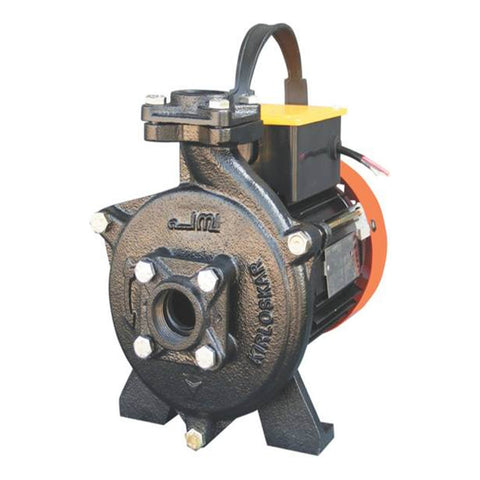

Kirloskar Agri Monoblock Pumps Single Phase 0.5HP PAMBA PUZHA

Kirloskar Agri Monoblock Pumps Single Phase 0.5HP PAMBA PUZHA

Visit the Kirloskar Store

₹ 6,880.00

Quantity

Pack Qty : 1



Delivery Availability

Offers and Coupons

Mid-Year Value Sale

Coupon Image

Use the coupon codes purchase of ₹7,000/- & above

Above ₹7,000
Use
MID100
Above ₹25,000
Use
MID300
Coupon Image

Register to use Coupon Code C50 and get ₹50/- off on a purchase of ₹1000/- & above

EMI Icon

EMI Available On minimum purchase of ₹ 3000/-

PAN INDIA DELIVERY
100% Genuine Products
100% Secured Payments

Product Description

  • These pumps are designed for better performance in domestic applications

  • They have high quality aluminum extruded motor body with chrome plated shaft

  • These pump can withstand wide voltage fluctuations from 180 V to 240 V

  • They are ideal for water supply for domestic use in Bungalows, Apartments, Hotels, Hospitals, Farm houses, etc

  • Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens

  • Extra high head of 50 meters makes this pump ideal for domestic as well as institutional use

  • Features:

  • Aluminum extruded motor body for better heat dissipation and corrosion resistance

  • Motor can withstand wide voltage fluctuation from 180 - 240 Volts

  • Capable of priming up to 3 meters static suction lift without foot valve, at rated head and discharge (IS 8472:1998)

  • Fitted with Thermal Overload Protector (TOP) preventing motor burn out at lower voltage

  • Totally enclosed fan cooled (TEFC) - no entry of dust moisture

  • Capacitor starts and runs motor with IP-44 protection

  • B’ class of insulation

  • Capacitor inside terminal box

  • Double shielded ball bearing - needs no external lubrication

  • Application:

  • Water supply for domestic use in Bungalows, Apartments, Hotels, Hospitals, Farm houses etc

  • Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens

  • Water circulation in small industries

Product Specification

Brand

Kirloskar

Product Type

Monoblock Pump

Product Model

PAMBA PUZHA

Power

HP : 0.5

kW : 0.37

Pipe Size (cm)

Suction : 25

Delivery : 25

Full Load Current(Amps)

2.6

Rated Voltage

220

No Of Phase

Single Phase

Impeller

Noryl

Delivery Casing

Cast Iron

Mounting Casting

Cast Iron

Pump Shaft

Carbon Steel

Motor Body

Extruded Aluminum

Mechanical Seal

Carbon Ceramic


Total Head In Meter

Discharge In LPH

12

6588

14

5940

16

4248

18

2628

20

540

Warranty

As Per Manufacturer Terms & Conditions


Other Details

Dimension (CM) - L x B x H

Unit of Measurement

Weight

kg

Generic Type

Monoblock Pumps

Manufacturer Details

Kirloskar Brothers Limited (KBL) Yamuna,Survey No. 98/(3-7), Baner Pune 411 045 India Phone : 1800-123-4443 Email ID: marketing@kbl.co.in

Packer Details

Kirloskar Brothers Limited (KBL) Yamuna,Survey No. 98/(3-7), Baner Pune 411 045 India Phone : 1800-123-4443 Email ID: marketing@kbl.co.in

Country of Origin

India
