SKU # 1000140151

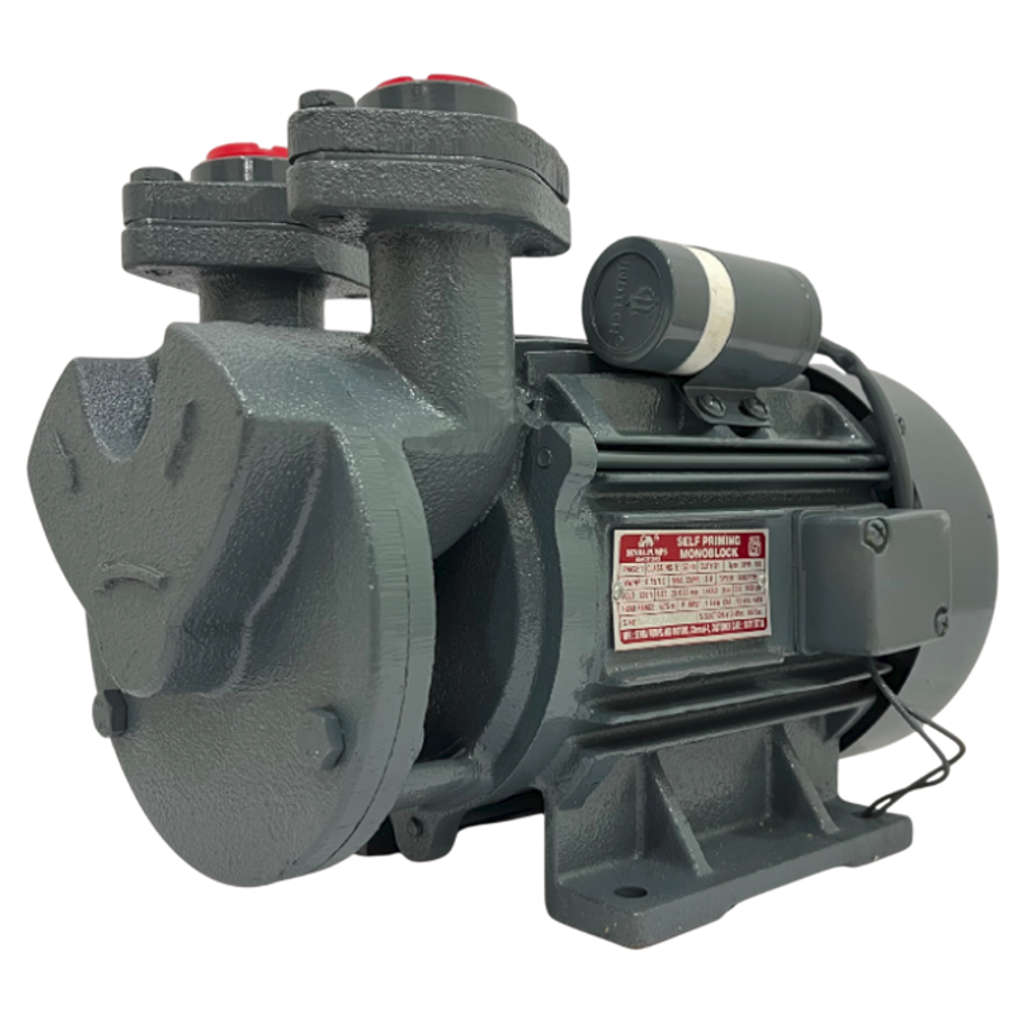

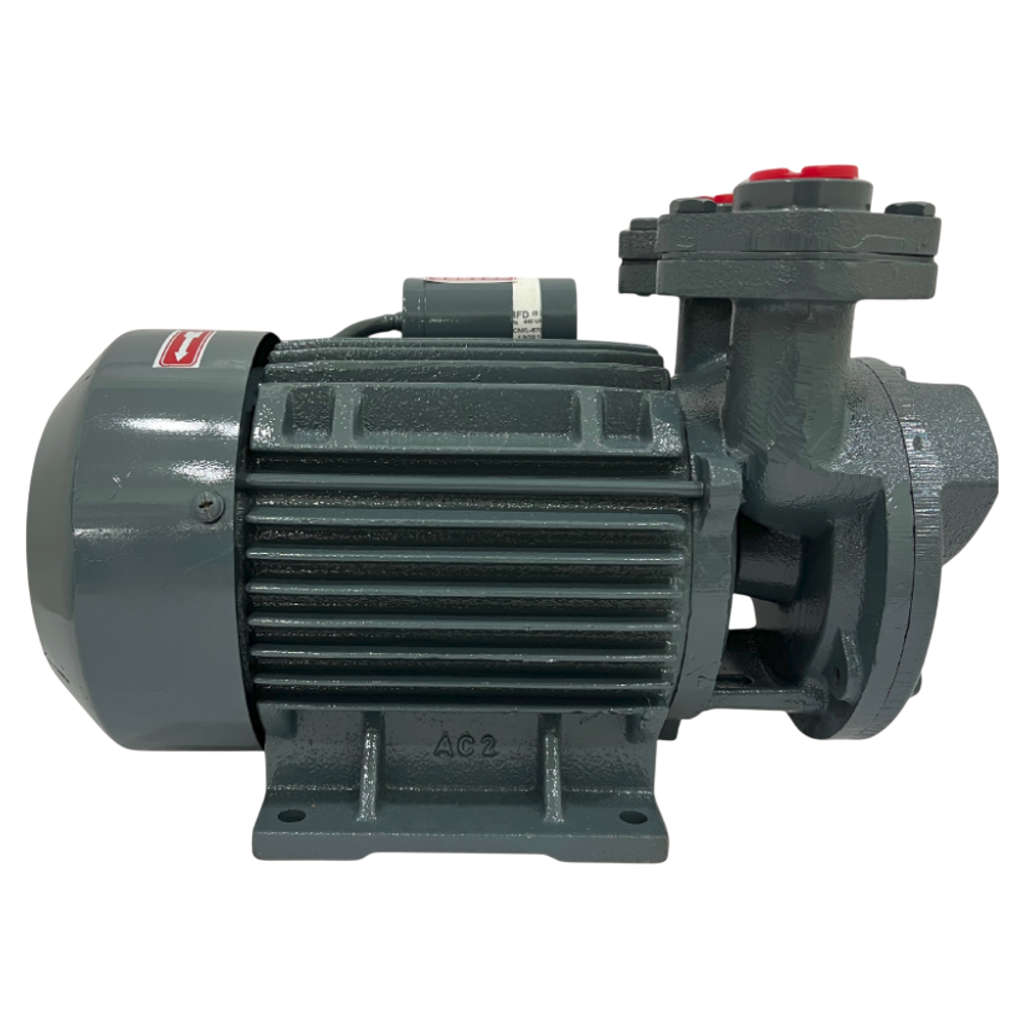

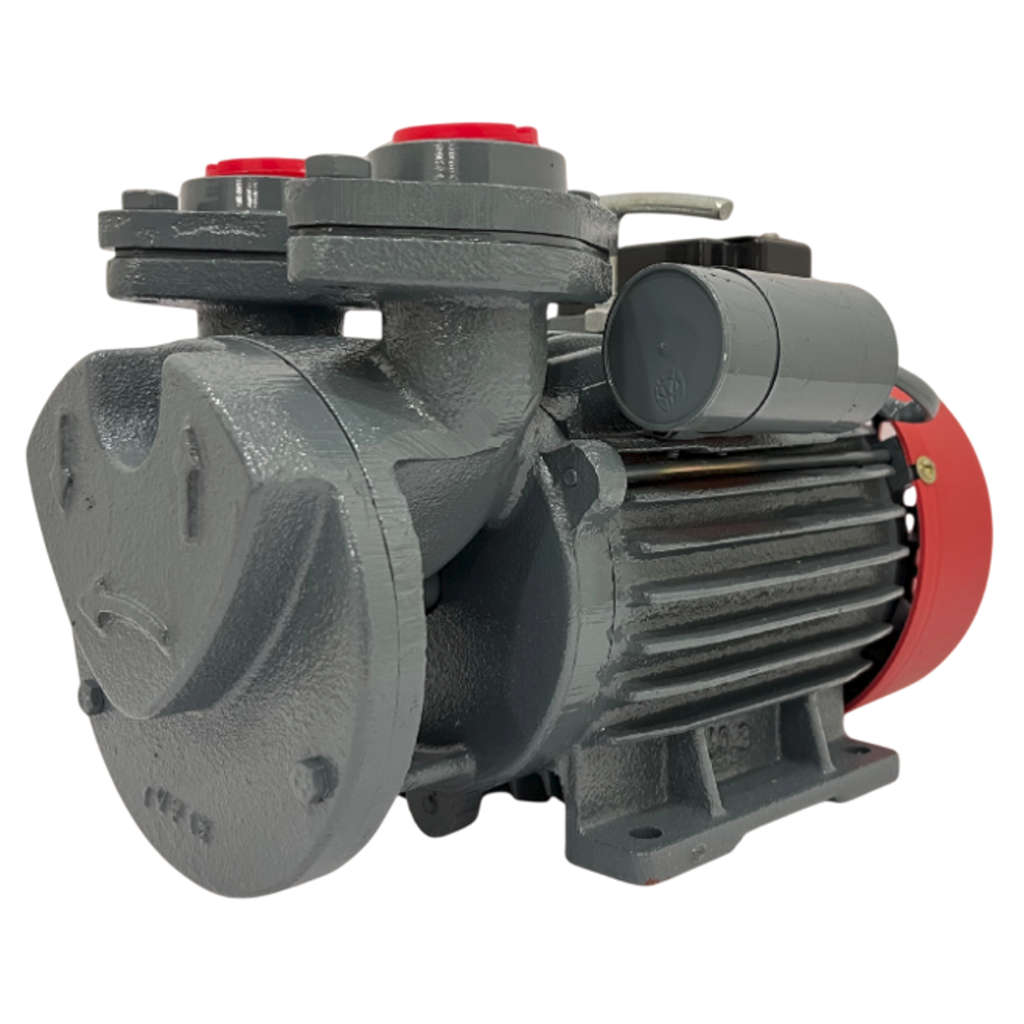

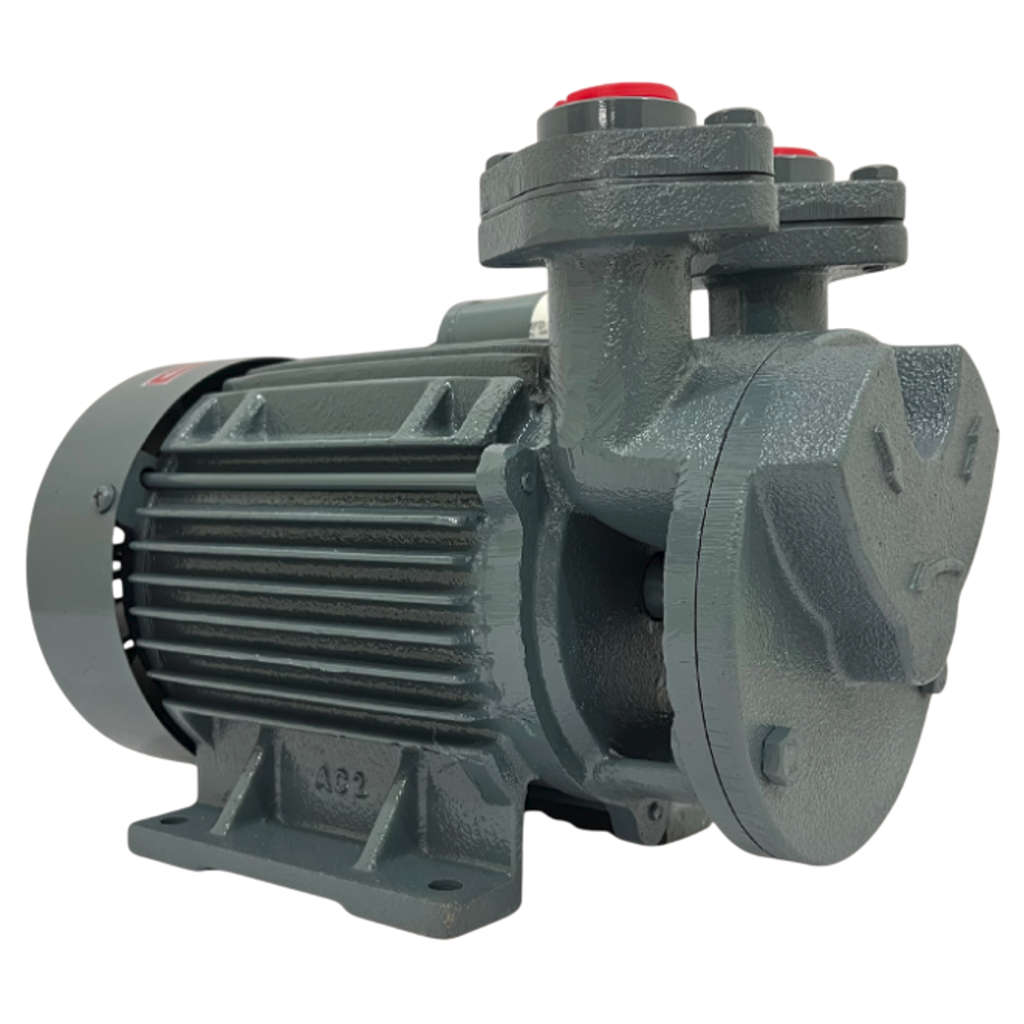

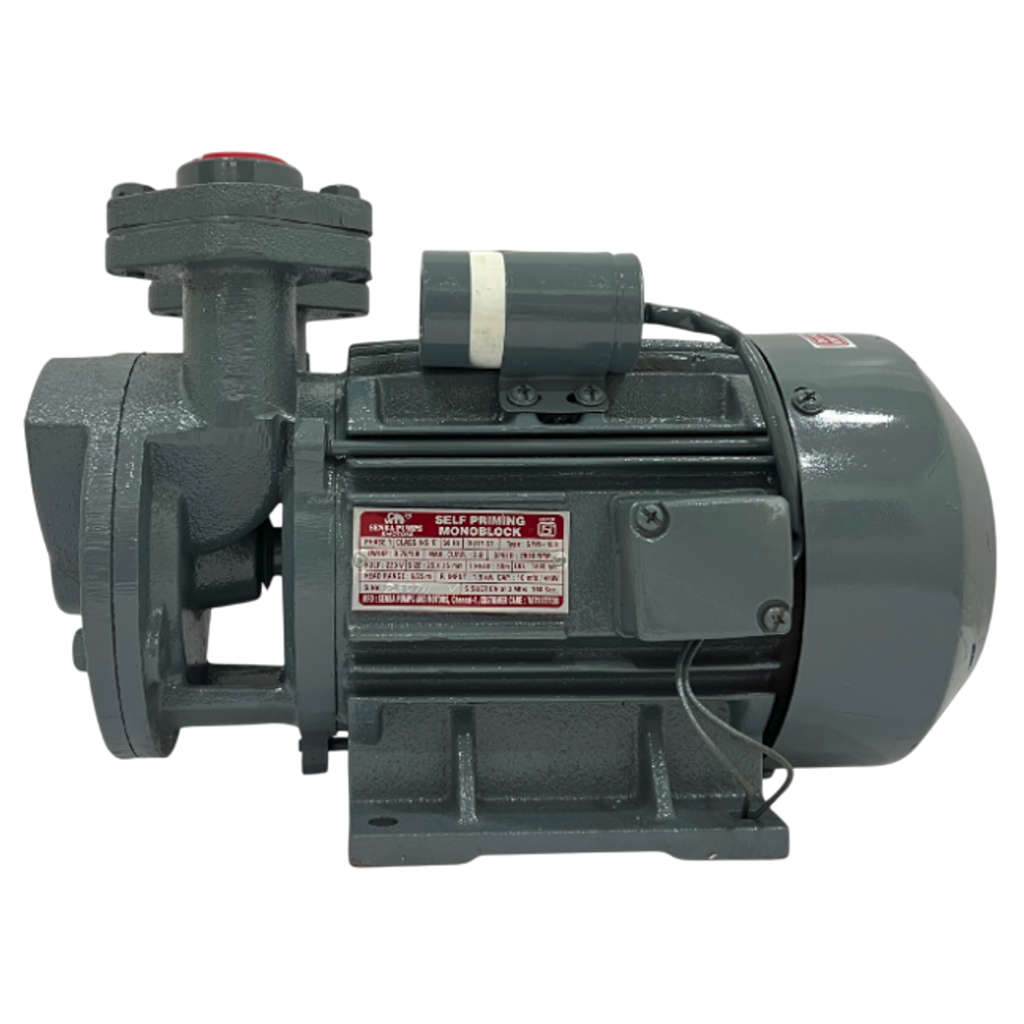

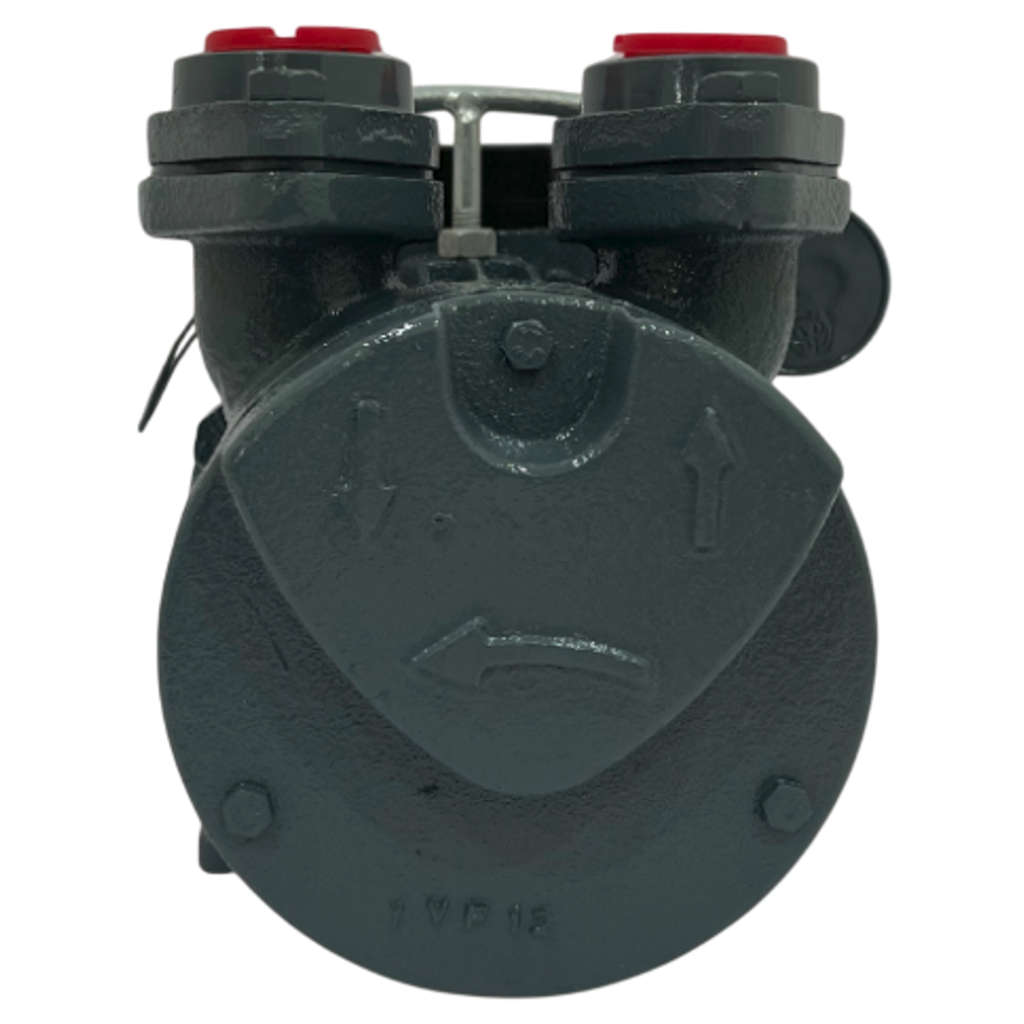

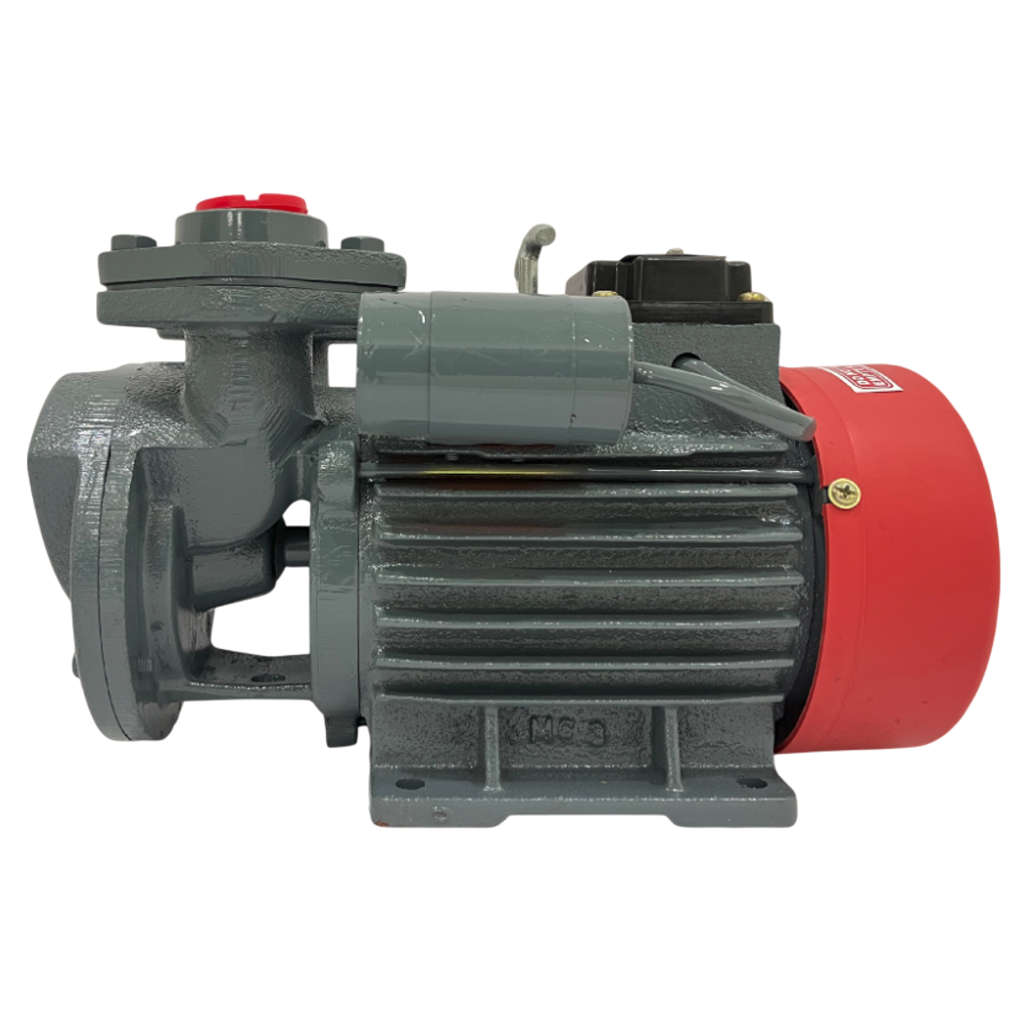

Senba V-Type Monobloc Pump Single Phase 1.0 HP SVM-100

PAN INDIA DELIVERY

100% Genuine Products

100% Secured Payments
Product Description
-
A V-type pump is a self-priming monoblock pump typically used for domestic and agricultural water supply
-
It features a combined motor and pump in a single unit, has a self-priming capability to automatically remove air from the suction line, and is designed for applications like overhead tank filling, garden watering, and light irrigation
-
The design is compact, durable, and easy to install, with many models featuring copper windings and cast iron or aluminum bodies
-
Applications
-
Residential, construction site , Pressure boosting, car washing,Gardens, small lawn sprinklers
Product Specification
| Brand | Senba |
| Product Type | Monobloc Pump |
| Product Model | SVM-100 |
| Technical Specifications | |
| Power | HP |
| Speed | 2900 RPM |
| Voltage Range | 180v-240v (1ph)—50 HZ |
| Duty | S1 ( Continuous) |
| Protection | IP44 |
| Insulation | B Class |
| Pipe Size | 25*25 mm |
| Head Range | 6-36 mtr |
| Flow Range | 10 to 40 LPM |
| Head (m) | Discharge (LPM) |
| 6 | 45 |
| 12 | 43 |
| 15 | 40 |
| 18 | 38 |
| 21 | 33 |
| 24 | 28 |
| 27 | 23 |
| 30 | 18 |
| 36 | 15 |
| Operating Conditions | |
| Suction Lift | Up To 8 Metre |
| Maximum Liquid Temperature | 50 deg cel |
| Maximum Ambient Temperature | 40 deg cel |
| Material | |
| Pump Casing & Flanges | Cast iron |
| Motor Body | Cast iron |
| Impeller | brass/CI |
| Shaft | ss 410 |
| Mechanical Seal | Carbon Ceramic |
| Winding | Copper |
| bearing | Double Shielded Ball Bearing |
| Warranty | As Per Manufacturer Terms and Condition |
Other Details
| Dimension (CM) - L x B x H | 35 x 25 x 36 |
| Unit of Measurement | 1 Piece |
| Weight | 8.8 kg |
| Generic Type | Monoblock Pumps |
| Manufacturer Details | Senba Pumps & Motors 15/29, Thambuchetty Street Support: 9090909090 Email: senbapumpsandmotors@gmail.com |
| Packer Details | Senba Pumps & Motors 15/29, Thambuchetty Street Support: 9090909090 Email: senbapumpsandmotors@gmail.com |
| Country of Origin | India |
